Help CenterLaboratory Soil Testing Sieve
Related Products
Specifications
laboratory soil testing sieveSieve Size:8inch, 12inch, 18inch
Aperture:5um~3mm
dia. 100,200, 300mm, 315mm,450mm
laboratory soil testing sieve
1:Used for lab or powder filter
2:Mesh:8-635
3:Installing in the test sieve machine
4:Diameter:200mm

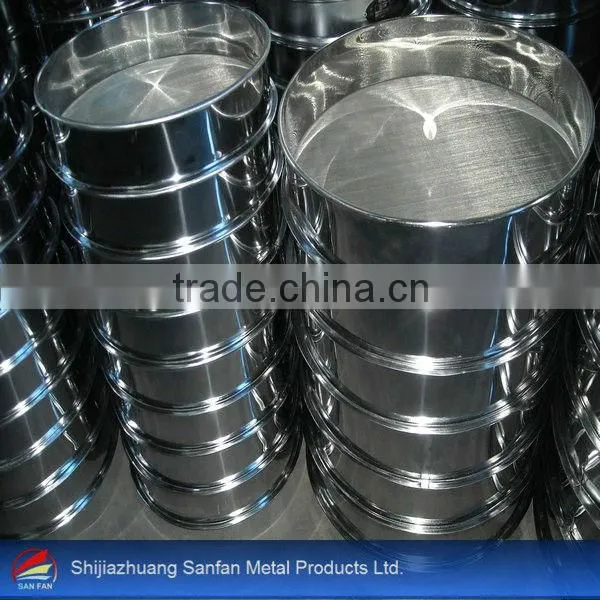

Standard Test Sieve(Made in China)
Application:
The standard testing sieve is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments
Features:
The frame of testing sieve is made of SUS 304# stainless steel, the thickness is 0.6 mm, firm and durable, no magnetism.
Sieve and frame are soldered all around, then make a mosaic base, as the frame is two-double, so that the testing sieve is more firm and durable.
The testing sieve is processed by use special electrochemistry methods, and coat chrome, so the surface of testing sieve is exact, glazed and wearable,it will not get distorted after long time use .
Mesh |
Wire Dia(mm) |
Opening(mm) |
Material(AISI) |
2mesh*2mesh |
1.8 |
10.9 |
304 or 316 |
3mesh*3mesh |
1.5 |
6.96 |
304 or 316 |
4mesh*4mesh |
1 |
5.35 |
304 or 316 |
7mesh*7mesh |
1 |
2.63 |
304 or 316 |
10mesh*10mesh |
0.6 |
1.94 |
304 or 316 |
12mesh*12mesh |
0.5 |
1.62 |
304 or 316 |
16mesh*16mesh |
0.4 |
1.19 |
304 or 316 |
16mesh*16mesh |
0.35 |
1.24 |
304 or 316 |
18mesh*18mesh |
0.35 |
1.06 |
304 or 316 |
20mesh*20mesh |
0.4 |
0.87 |
304 or 316 |
24mesh*24mesh |
0.26 |
0.8 |
304 or 316 |
30mesh*30mesh |
0.3 |
0.55 |
304 or 316 |
35mesh*35mesh |
0.17 |
0.56 |
304 or 316 |
40mesh*40mesh |
0.23 |
0.4 |
304 or 316 |
50mesh*50mesh |
0.2 |
0.31 |
304 or 316 |
60mesh*60mesh |
0.15 |
0.27 |
304 or 316 |
70mesh*70mesh |
0.12 |
0.24 |
304 or 316 |
80mesh*80mesh |
0.13 |
0.19 |
304 or 316 |
90mesh*90mesh |
0.1 |
0.16 |
304 or 316 |
100mesh*100mesh |
0.09 |
0.15 |
304 or 316 |
120mesh*120mesh |
0.063 |
0.12 |
304 or 316 |
150mesh*150mesh |
0.053 |
0.11 |
304 or 316 |
180mesh*180mesh |
0.053 |
0.09 |
304 or 316 |
200mesh*200mesh |
0.04 |
0.07 |
304 or 316 |
250mesh*250mesh |
0.04 |
0.063 |
316 |
300mesh*300mesh |
0.04 |
0.044 |
316 |
325mesh*325mesh |
0.035 |
0.043 |
316L |
350mesh*350mesh |
0.03 |
0.042 |
316L |
400mesh*400mesh |
0.03 |
0.33 |
316L |
450mesh*450mesh |
0.028 |
0.028 |
316L |
500mesh*500mesh |
0.025 |
0.026 |
316L |
If any more details needed, welcome to contact us.
