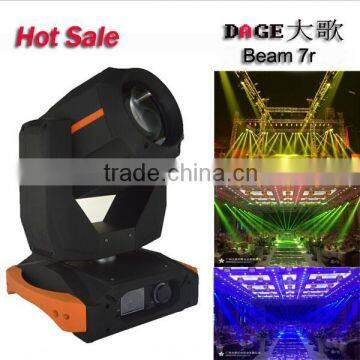

230W Super beam light fast rotating sharpy beam 7r

sharpy 200w beam light

Lamp Source

Philips 230W 7R

Power Supplies

AC110-240V,50-60HZ

Power consumption:375w

Electronic Ballast

Optical System

High precision & muti-agglution optional glass lens

Color wheel(1 color wheel)

14 dichroic color+open

Variable speed and bi-directional rainbow effect

Gobo System(1 gobo wheel)

14 fixed gobo+open

Gobo shaking & scrolling at variable speeds available

Beam angle:0-7°

Prism:8 and 16 prisms,which overlapping can create amazing 24 prism,bi-direction

rotating in high-slow speed.

Focusing:electronic liner focus,line focus

Dimmer:0-100% liner dimmer,strobe speed:1-14 times/sec

DMX Control:18CH

Control mode:DMX 512,Master-slave,auto

Manual display:1.6 million pixel LCD screen,Chinese and Englis can

switch easily,180 ° rotaton

Dmx signal connection:3 pin and 5 pin XLR input/output

Movement & Structure

Pan:540°(8/16 bit),

Tilt 270 °(8/16 bit)

Body size:360*420*495(mm)

Net Weight:18.5kg

Youtube video:

1) gd3319 beam spot wash 3 in1 15r
http://youtu.be/DCxDHrqlCsc

2) de3318 sharpy beam 15r
http://youtu.be/_RqMIUZqxaw
