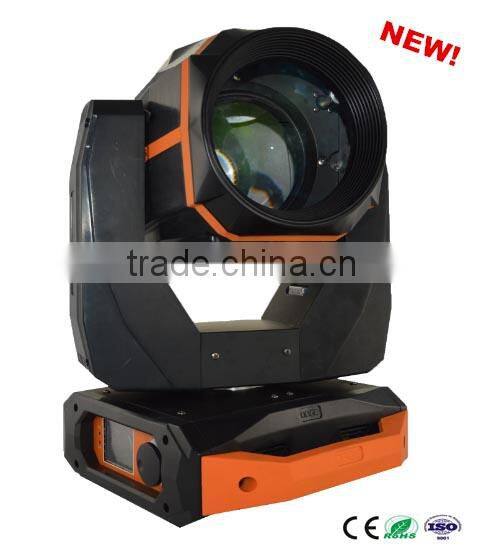

New arrival 2016! DAGE AD-3320 sharpy beam 330w 15R moving head used stage lighting
Main features:
Unique casing design, the most sharpliest, stronggest and high brightness beam in the market
YODN 330W 15R
Output lens’ diameter up to 152MM
Beam angle 2-40° (Including the prism and frost) in 4.6° the beam effect is the best
independent 8, 16, 24 facet prism ( combine with gobo can make fantastic 8,16,24,32,40,48 facet prism)
14 color+open
2 gobo wheels (1. 14 fixed gobo+open, 2. 8 rotating gobo+open, replaceable gobo)
DMX 20CH, LCD touch display
High speed strobe 0-14/sec.
Pan 540°16/32 bit / Tilt 260°16/32 bit
With sleep mode function
Data in/out: Locking 3-pin & 5-pin XLR
Power input: Neutrik PowerCon
Video links:
/watch?v=5XI5Tm87mZM
OPTITCAL SYSTEM |
YODN 330W 15R ,Italian heat-protecting glass,Optical lens dia. 152mm. Beam angle 2-40° (Including the prism and frost), Electronic focusing |
DISPLAY SYSTEM |
Display mode 16 million pixel LCD touch screen,sleep mode function Lamp’s life & device using time is displayable. with Automatic error tested function |
|
CONTROL SYSTEM |
DMX512, 20 CH.DMX , random , auto, voice and sleep mode. High-tech constant current board, 36V / 12V voltage. Built-in high -quality magnetic components ensure stable signal transmission. |
| DATA INTERFACE |
3-pin & 5-pin male and female connectors optional. Neutrik PowerCon |
POWER SYSTEM |
480w, (± 50W) works normally.AC110-240V/50-60HZ. High-tech constant current power board, first-class brand PCB components |
STROBE SYSTEN |
Independent double shutter device, 0-14 times / s 0-100% linear dimming. The lamp power is automatically reduced 40% when it turn off in 5 seconds Remote control switch and boot light function for bulb, default as remote control. |
COLOR SYSTEM |
14 colors+open. Semi- color , full-color , single-color gradients, changeable fast forward and reverse direction rotating rainbow effect. Imported Italian specialty high temperature materials, Germany's high-tech coating technology. |
GOBO SYSTEM |
14 metal gobos + open, adjustable beam angle, enabling water, shake, slow-fast rotation effect. 8 rotating gobos+open, rotation angle can be adjusted. |
FROST SYSTEM |
Frost setting: Independent single-sided high penetration frost lens. Frost effects: Various changes of frost effects. Frost angle: The largest is 40° |
PRISM SYSTEM |
1: 8-facet prism rotating in both directions at different speeds 2: 16-facet linear prism rotating in both directions at different speeds 3: 24-facet linear prism rotating in both directions at different speeds
CH10+CH13 will create 32 prism,
CH11+CH13 will create 40 prism,
CH10+CH12+CH13 will create 48 prism.
|
COOLING SYSTEM |
Lamps materials: Excellent aluminum material, good heat dissipation and light weight. Fan Qty: 7pcs Thermal protection: Built-in overheating protection |
ROTATION SYSTEM |
XY motor: Fast and quiet 3-phase motor. XY position: Encoder& Hall components position and advanced scanning memory function. Pan:540°(16/32 bit), Tilt 270 °(16/32 bit), |
DEMENSION |
Body size: 308x360x550 mm N.W: 17 kg |
DMX Channel
Channel |
20 DMX Control mode: |
1 |
X |
2 |
Y |
3 |
XY speed |
4 |
Dimmer |
5 |
Stop/strobe |
6 |
Color wheel |
7 |
fixed (metal) gobo wheel |
8 |
rotating gobo wheel |
9 |
Rotating gobo wheel rotation |
10 |
Prism 1 (8 prism) |
11 |
Prism 2 (16 prism) |
12 |
Prism 2 rotating (16 prism rotating) |
13 |
Prism 3 (24 prism) |
14 |
Prism 3 rotating (24 prism rotating) |
15 |
Frost |
16 |
Focus |
17 |
Lamp control |
18 |
Pan fine |
19 |
Tilt fine |
20 |
Reset |
CH10+CH13 will create 32 prism,
CH11+CH13 will create 40 prism,
CH10+CH12+CH13 will create 48 prism.

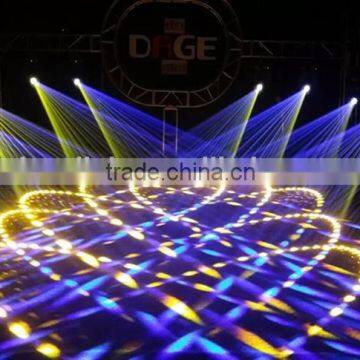

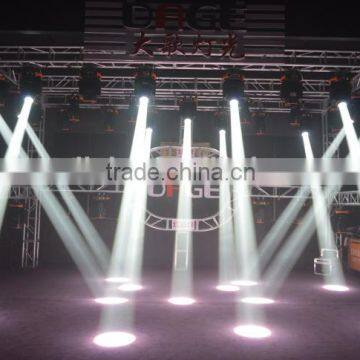

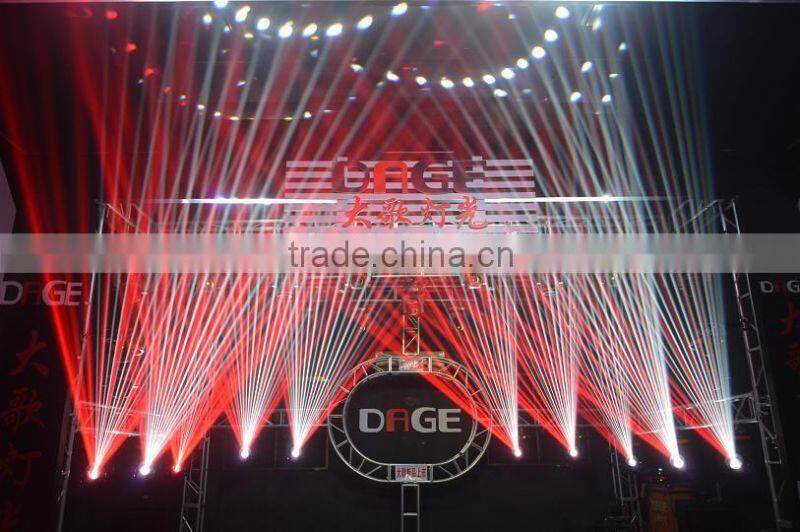

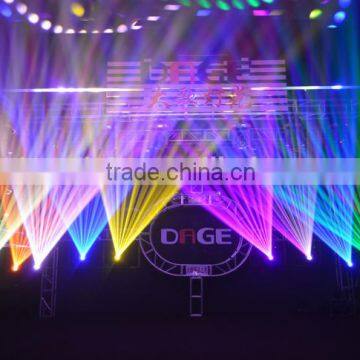

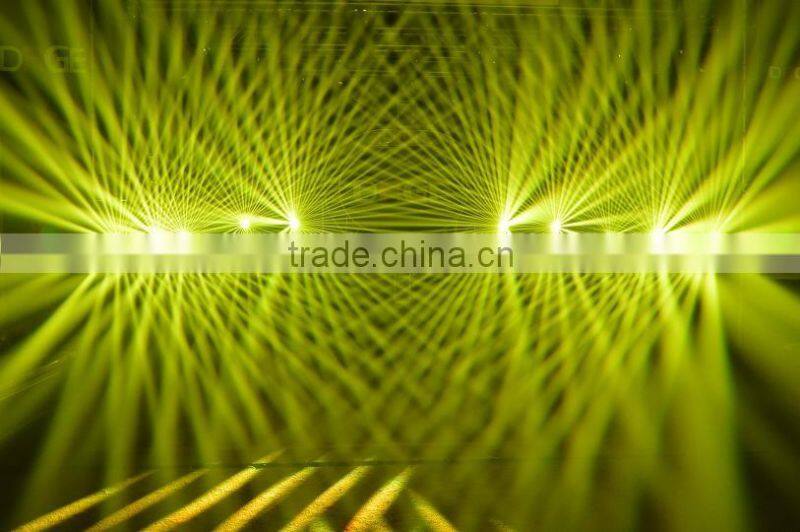

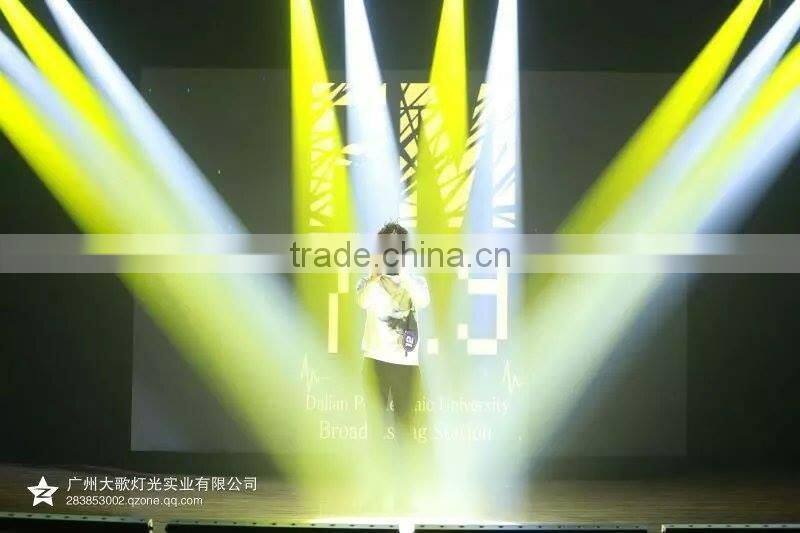

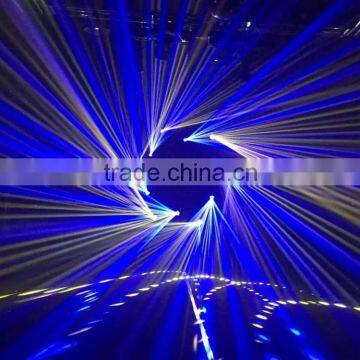

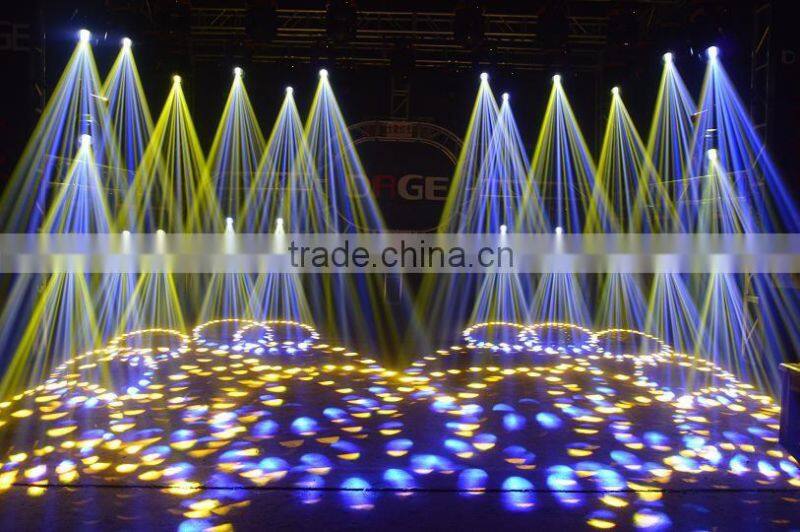

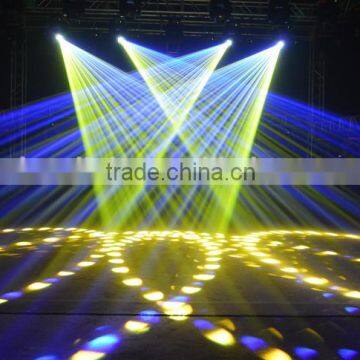

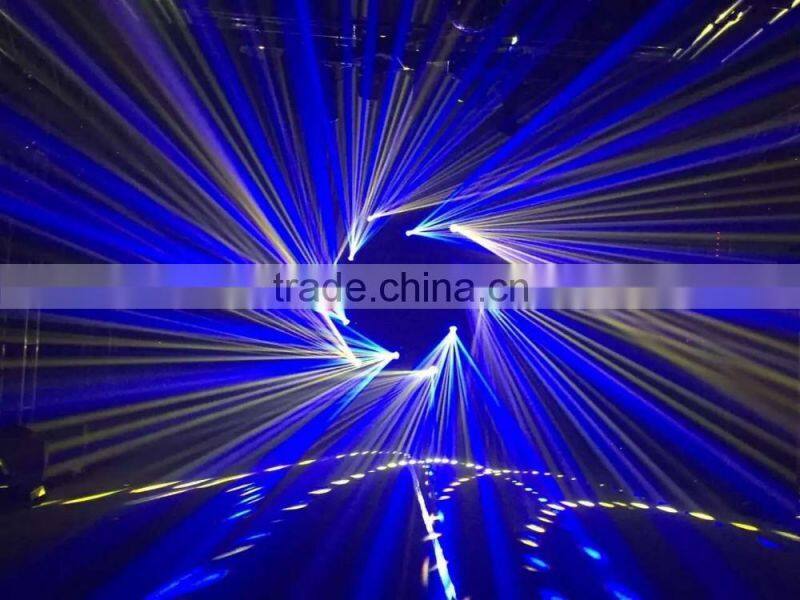

Effect photos:
Certificate
About DAGE:
DAGE Stage Lighting Master Co., Ltd was founded in 2006, it’s a significant, high-tech enterprise which specialized in researching and developing moving head stage lights. Our latest products Transformers family series as following:
Deceptions (15R beam/spot/wash moving head), Optimums Prime (15R beam moving head), 15R Sky-touch beam,
Megaton (7R beam moving head), 1000W 50R spot moving head and LED stage lighting series. For more than 8 years experience, we supply superior quality moving head lights for our customers from all over the world and got very high praise from them.FIRST-CLASS PRODUCTS, TOP 5 IN CHINA!
IF TAHT AWESOME FIXTURE HIT YOUR POINT? Welcome to contact me:
Mob: +86 138 2627 0232
Skype: cherry_lcy123
WhatsApp: +86 152 1722 9331
Web: dagelight.en.china.cn
Add: 20th Hetai Road, Jiahe town, Baiyun district
Guangzhou China
