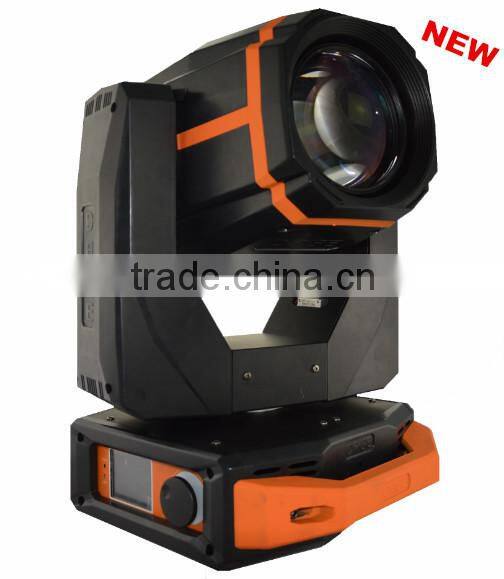

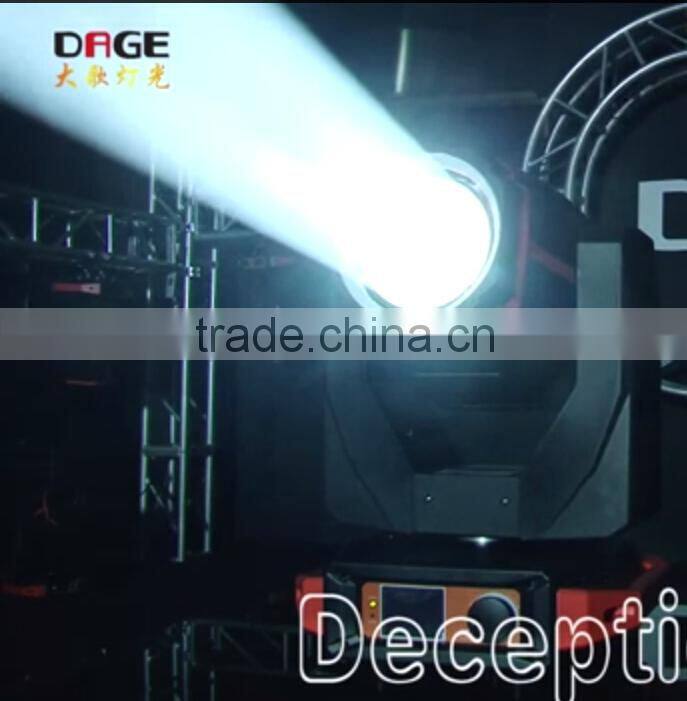

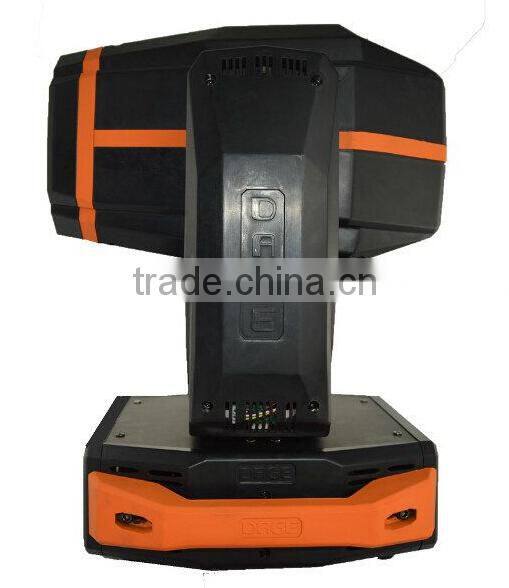

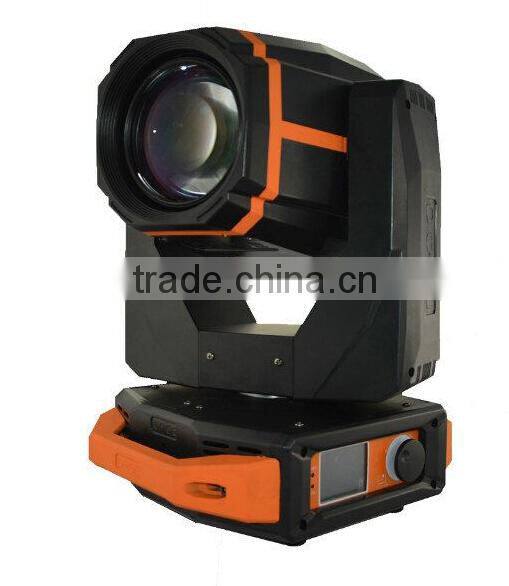

new products 2015 DAGE GE-3019 Deceptions 15r moving head, beam 300 moving head, DMX lighting
Fixtures:
Unique casing design, beam/spot muitifunctional. high cost-effective
Completely linear zoom 3.5-58°(including frost & prism)
In 3.8°the beam effect is super sharply & uniformity
Independent 8 prism,combine with gobo can achieve 8, 18 prism,T-prism effectl.
Philips 300W 15R, rated power: 430W
14 color+open,
2 gobo wheels (1. 14 fixed gobo+open, 2. 8 rotating gobo+white)
DMX 19CH, High speed strobe 0-14/sec.
Linearly 0-100% dimming
moving fast and noiselessly,Pan 540°/ 2.5 sec. Tilt 260°/1.5 sec,they are driven by 3-phase motors
The rated power will be decreased 40% to protect the lame’s source when the shutter is closed.
Video links:
/watch?v=wtgO2w9w4qo
OPTITCAL SYSTEM |
PHILIPS 300W 15R ,Italian heat-protecting glass,Optical lens dia. 125mm. linear zoom 3.5-58°, electronic focusing |
DISPLAY SYSTEM |
Display mode 16 million pixel LCD touch screen,sleep mode function Lamp’s life & device using time is displayable. with Automatic error tested function |
|
CONTROL SYSTEM |
IDMX512, 19 CH.DMX , random , auto, voice and sleep mode. High-tech constant current board, 36V / 12V voltage. Built-in high -quality magnetic components ensure stable signal transmission. |
| DATA INTERFACE |

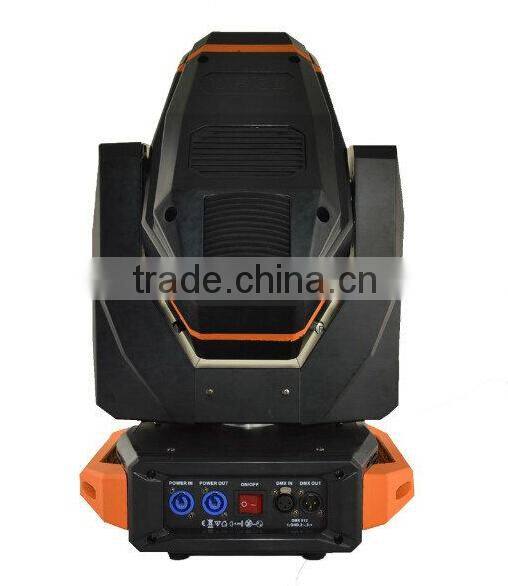

1. 3-pin male and female connector. 2. 3-pin combine 5-pin male and female connectors. |
POWER SYSTEM |
430w, (± 50W) works normally.AC110-240V/50-60HZ. High-tech constant current power board, first-class brand PCB components The rated power will be decreased 40% when it turn off in 5 seconds |
POWER INTERFACE |
1. Three-pin male and female data interface, dual hand in hand power interface 2. Three-pin and five-pin male and female data interface, one single power connector. |
STROBE SYSTEN |
Independent double shutter device, 0-14 times / s 0-100% linear dimming. Remote control switch and boot light function for bulb, default as remote control. |
COLOR SYSTEM |
14 colors+open. Semi- color , full-color , single-color gradients, changeable fast Automatic error correction at any angle with hall, magnet positioned. |
GOBO SYSTEM |
2 gobo wheels. 1. 14 metal gobos + open, enabling water, shake, slow-fast rotation effect. 2. 8 interchangeable gobos+open, rotation angle can be adjusted, the maximum opening angle of 58°,enabling rotation, water, shake and slow fast forward and reverse direction rotation, plug design, customers can according their demands, custom made logo. Imported Italian specialty refractory metal materials. Automatic error correction at any angle with hall, magnet positioned . |
FROST SYSTEM |
Frost setting: Independent single-sided high penetration frost lens. Frost effects: Various changes of frost effects. Frost angle: The largest is 40° |
PRISM SYSTEM |

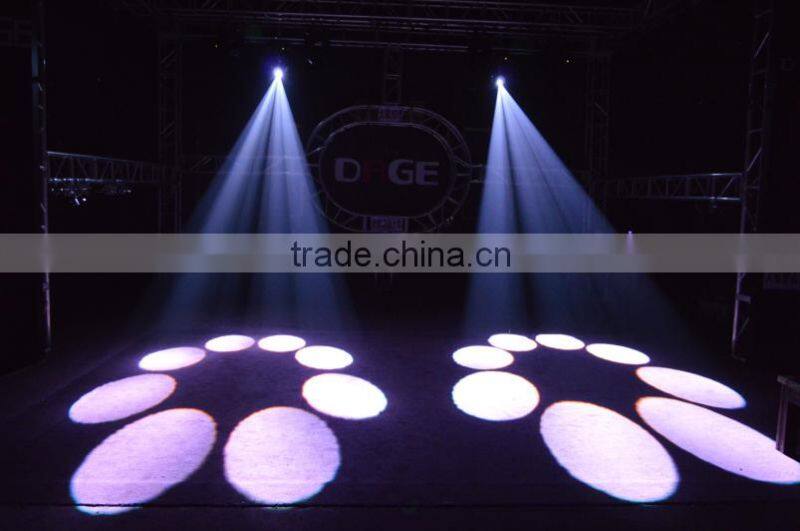

Independent 8 prism,combine with gobo can achieve 8, 18 prism,T-prism effect Prism effects: Rotating angle is adjustable. The largest prism angle is 60°. |
COOLING SYSTEM |
Lamps materials: Excellent aluminum material, good heat dissipation and light weight. Fan Qty: 7pcs Thermal protection: Built-in overheating protection |
ROTATION SYSTEM |
X/Y motor: Fast and quiet 3-phase motor. X/Y position: Encoder& Hall components position and advanced scanning memory function. Pan:540°(16/32 bit) Tilt 270 °(16/32 bit) |
DEMENSION |
Body size: 300*348*545mm N.W: 17.5 kg |

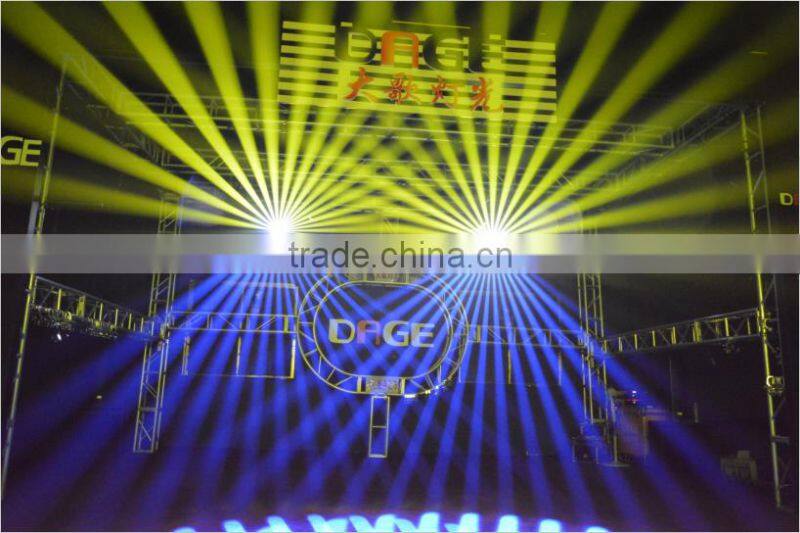

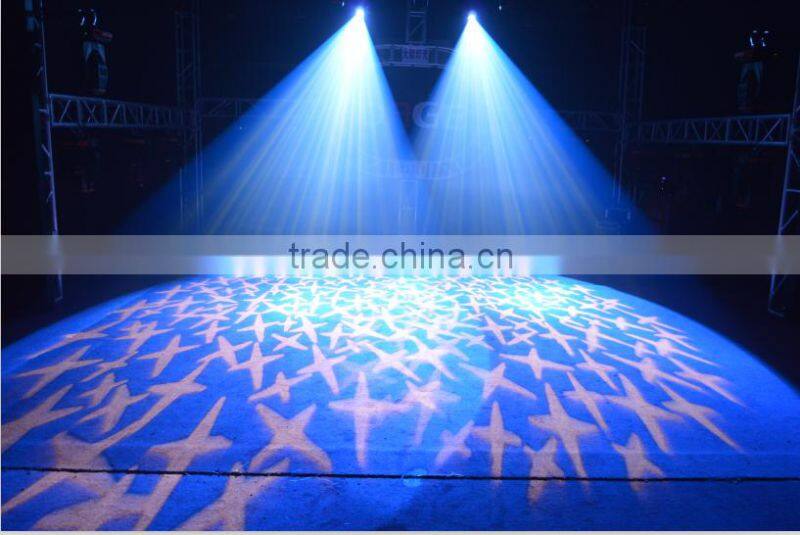

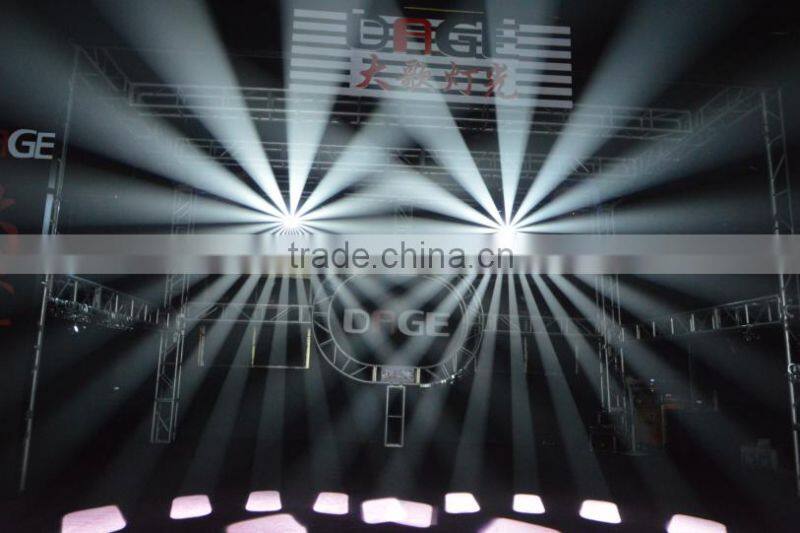

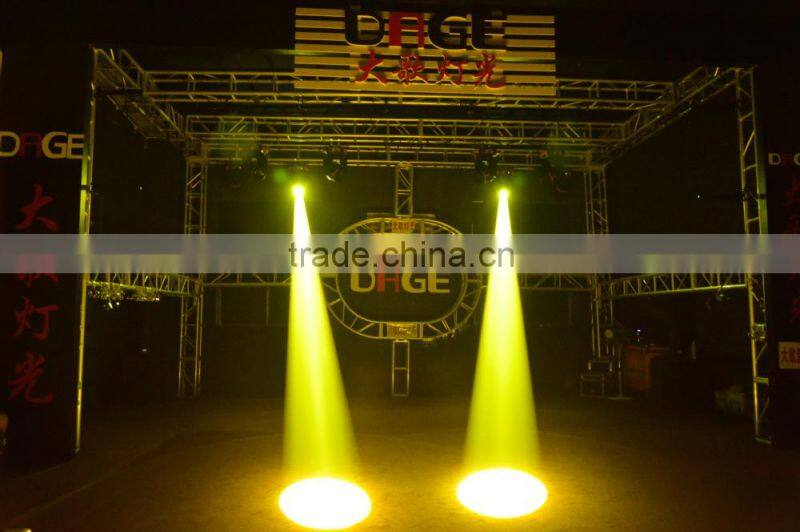

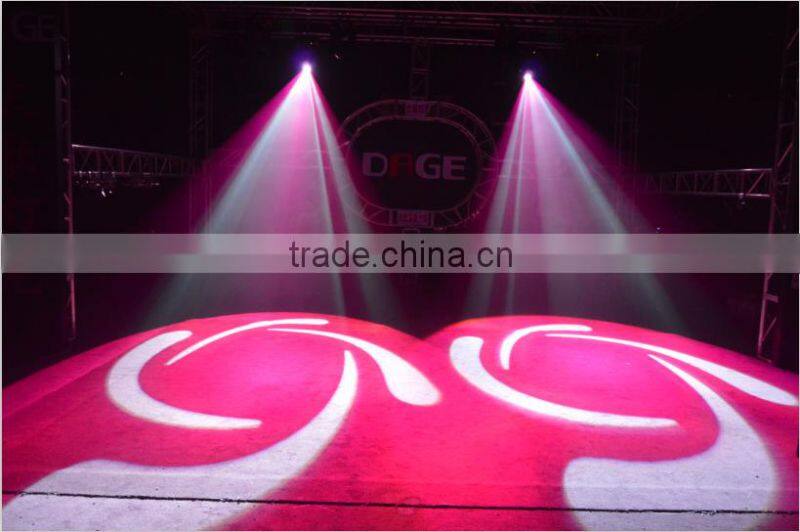

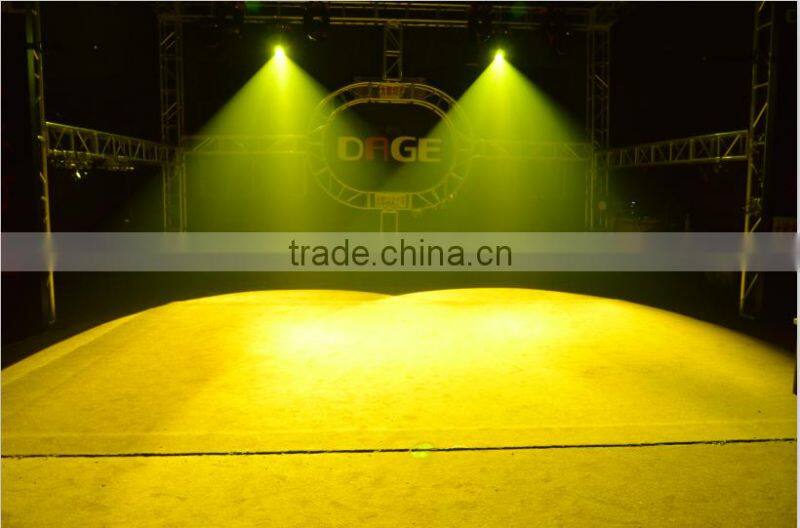

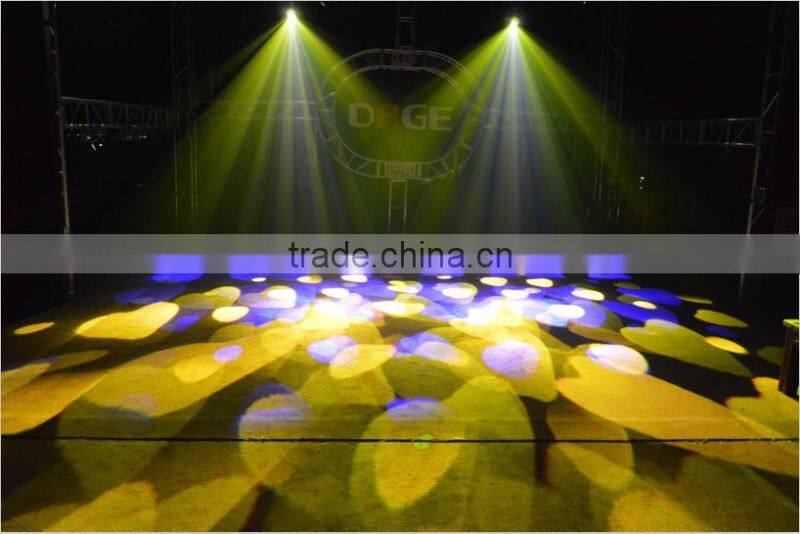

Effect photos
About DAGE:
DAGE Stage Lighting Master Co., Ltd was founded in 2006, it’s a significant, high-tech enterprise which specialized in researching and developing moving head stage lights. Our latest products Transformers family series as following:
Deceptions (15R beam/spot/wash moving head), Optimums Prime (15R beam moving head), 15R Sky-touch beam,Megaton (7R beam moving head), 1000W 50R spot moving head and LED stage lighting series. For more than 8 years experience, we supply superior quality moving head lights for our customers from all over the world and got very high praise from them.FIRST-CLASS PRODUCTS, TOP 5 IN CHINA!
Why to purchase from DAGE?
1. Reliability
We only focus on making moving head lights for more than 8 years, much more professional and stable. The R&D engineers are all worked in DAGE 5-7 years. All of our lighting is kept by the old clients life-long with simple maintenance.
2.Faster Delivery
We are the manufacturer have our own factory and product line, the warehouse stocked the raw material for months, DAGE can ensure the fastest delivery in the industry, normally, your items will be ship 2-5 working days after we receive your payment.
3.After-sales service
Your engineer could be simply trained by us. If any problems happened, firstly give us the details and send the picture or video to us as much as possible.The exactly replacement parts could be sent to you by DHL in 24hours after the problem confirmed.
