TOPBAND 12Ah Prismatic LiFePO4 Cell
- Shenzhen China
- T/T
You May Like
-
Hot Sale!!! TOPBAND 10Ah Prismatic LiFePO4 Cell
-
Top Salling!! !TOPBAND New Nano 3.2V Prismatic Lithium Iron Phosphate Cell 27ah 25ah 20ah 12ah 10ah for Energy Storage
-
Top Salling!! !TOPBAND 3.2V Prismatic LiFePO4 Cell 27ah 25ah 20ah 12ah 10ah for Energy Storage UPS Solar System
-
Top Salling!! !TOPBAND 3.2V Prismatic LiFePO4 Cell 27ah 25ah 20ah 12ah 10ah for Energy Storage Systems Backup Systems
-
3.2V 25Ah LiFePO4 Prismatic Cells
-
3.2V 20Ah LiFePO4 Prismatic Cells
Product Details
| Place of Origin | Guangdong, China | Brand Name | TOPBAND | |
| Model Number | TB-018065135D-12Ah | Type | Other, Lithium Iron Phosphate | |
| Nominal Voltage | Other, 3.2V | Size | Prismatic | |
| Nominal Capacity | 12 ampere hours |
Product Description

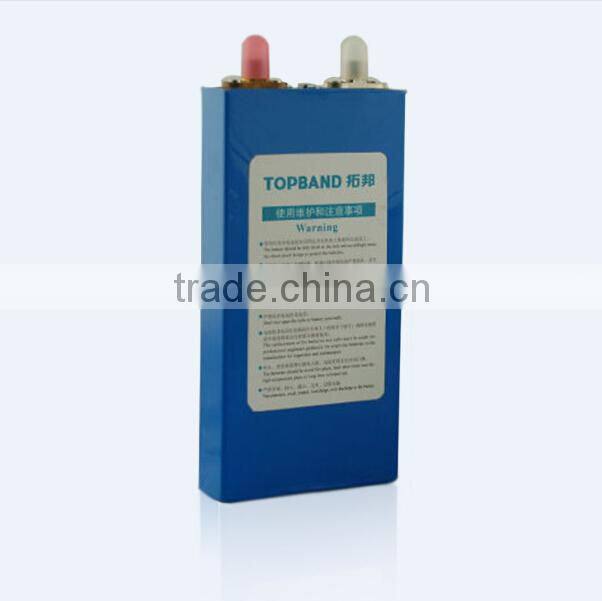

TOPBAND 12AH Prismatic LiFePO4 Cell
Technical Parameter Sheet | |
Model | TB-018065135C-12AH |
Type | LiFePO4 |
Nominal Voltage | 3.2V |
Typical Capacity | 12Ah |
Internal Impedance(1kHz AC) | <12 mΩ |
Charging Temperature | 0℃to 45℃ |
Discharging Temperature | -20℃ to 60℃ |
Storage Temperature | 5℃ to 35℃(Suggest 25±5℃) |
Dimension | 65*18*135 mm |
Weight | Approx 310 ± 20 g |
Cycles to 80% with 100%DOD | ≥3000 under 20 to 25℃ |

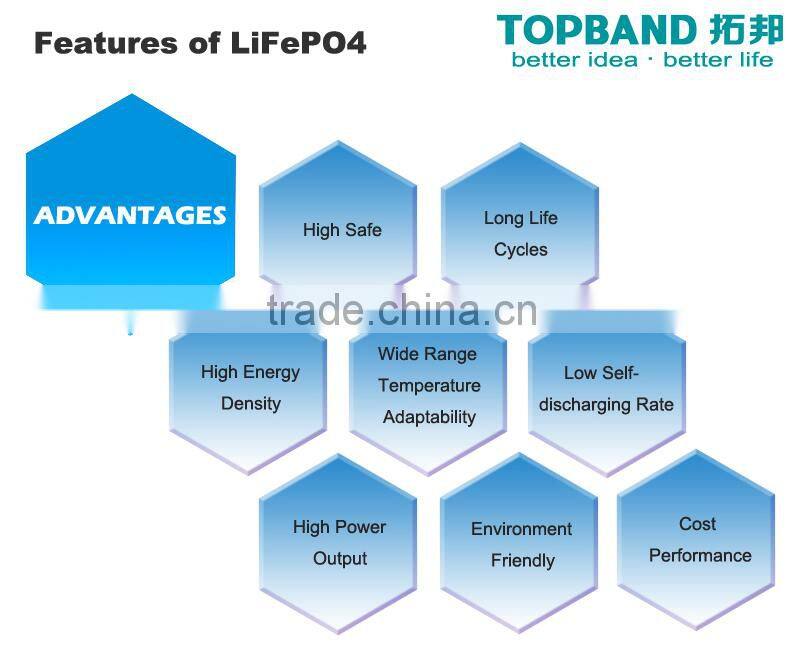

- High energy density
- About 1/3 the weight of lead-acid batteries
- Environment friendly, no pollution
- No memory effect, 2000 times cycle-life
- Safe and reliable, no explosion when piercing, no fire when over voltage
- Low self discharge.
- High power, maxiumu discharge current up to 5C
- Nice exterior
- Larger capacity
- Smaller internal impedance
- Standard dimension (easy to assemble)
- More safety




Payment:
- Price Terms: FOB Shenzhen, China.
- T/T, L/C Acceptable
- Small order, paid in advance.
- Large order, 50% in deposit before production starts, balance should be paid before shipment.
Shipping:
- Delivery: Air Freight, Sea Freight, Express
- Delivery Time: Within 10-35 working days after payment received.
- Lead time depends on quality ordered.
Service:
- Quick response within 24 hours.
- OEM & ODM orders are available.
- Warranty 2 years.
Certifications:
- CE, CB, UL, MSDS, ISO9001-2009, TS16949, ISO14001, OHSAS18001
Warning
- Do not immerse the battery into water or seawater
- Do not use leave or charge battery near a heat source such as fire or heater If the battery leaks or smells, move it away from open fire.The battery should be used after fully charged in the first use
- Do not inversely connect positive and negative polar
- Do not put the battery in fire or heat the battery
- Do not short-circuit the battery with wires or other metals
- Do not pierce the shell with nails or other sharp objects
- Do not hammer or tread the pack
- Do not disassemble the pack and battery in any way
- If the battery leaks and the electrolyte get into the eye, do not rub eye, instead rinse eye with clean water, and seek medical attention
Other Models:
- 3.2V10Ah, 3.2V12Ah, 3.2V20Ah, 3.2V 25Ah, 3.2V27Ah

Contact Information:
Contact Person: Ms. Sunny Xue (Overseas Sales Manager)
Tel: +86-755-27651888-6338
Fax: +86-755-27651888-6291
Mobile: +86-18823821213
Skype: sunny-xlh
Web:
http://lithium-battery.en.china.cn/
Add: TopbandIndustrial Park, Liyuan Industrial Zone, Shiyan, Bao'an District, China (P.C:518108).
Thank you very much for reading and sincerely hope we could work with you in the near future!
