1.it is of moulder and saw function2.high quanlity
petitive price
4.CE/ISO9001

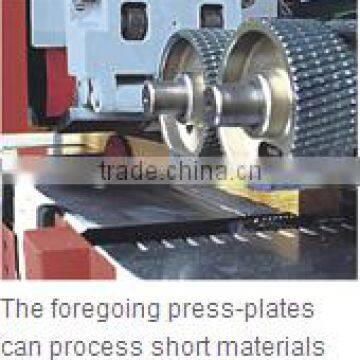

5.can process short materials
wooden box
Sale service
-Provide the free construction of the equipment
-Provide the standard device and the flow chart
-Inspect the machine before leaving the factory
-Oversea install and debug the equipment
-Train the first-line operator
-24 hours online service
-Provide the technical exchanging.
OUR COMPANY
Shanghai Xingbei Woodworking Machinery Co.,Ltd is specialized in production of woodworking machine ,and also operate as an agent for various brands and their plentiful models, so we can provide the most professional service with a competitive price. we have high quality after –sale service team in order to ensure the operation of the equipment.
If you have anything need, please do not hesitate to let us know.
Contact person:Mr.Zhang
Tel:+86 21 66029209
Fax:+86 21 56868180
Website:
Warranty:one year
Any aftersale support available
Yes,we have engineer’s available to service machinery oversea.
Payment: T/T or L/C
Packaging details:shrink film and plywood case packing
| Specification | |||

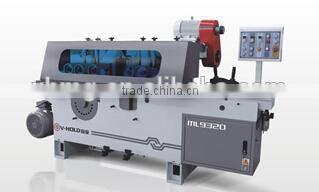

| s/n | Model No. | ML9320 | ML9320C |
| 1 | ing width | 200mm | 200mm |
| 2 | ing thickness | 75mm | 75mm |
| 3 | Feeding speed | 4-18m/min | 4-18m/min |
| 4 | Top spindle diameter | 40mm | 40mm |
| 5 | Top spindle rotation rate | 6000rpm | 6000rpm |
| 6 | Top spindle movement | 20mm | 20mm |
| 7 | Top spindle motor power | 5,5kw | 5,5kw |
| 8 | Bottom spindle diameter | 40mm | 40mm |
| 9 | Bottom spindle rotation rate | 6000rpm | 6000rpm |
| 10 | Bottom spindle motor power | 4kw | 4kw |
| 11 | Cutting spindle diameter | 50mm | 40mm |
| 12 | Cutting spindle rotation rate | 4000rpm | 5000rpm |
| 13 | Max.saw blade diameter | 300mm | 300mm |
| 14 | Spindle motor power | 22kw | 22kw |
| 15 | Spindle elevating motor power | 0.37kw | 0.37kw |
| 16 | Feed motor power | 2.2kw | 2.2kw |
| 17 | Elevating motor power | 0.37kw | 0.37kw |
| 18 | Total power | 34.44kw | 34.44kw |
| 19 | Air pressure | 0.6Mpa | 0.6Mpa |
| 20 | Dimension | 307x123x154cm | 307x123x154cm |
