Super beam! DAGE AD-3320 Optimus Prime beam 15R 330W moving head stage equipment and lighting
Main features:
Unique casing design, the most sharpliest, stronggest and high brightness beam in the market
Beam angle 2-40° (Including the prism and frost) in 4.6° the beam effect is the best
Unique & amazing 8, 16, 24,32,40,48 facet prism in 1
Video links:
Product's Details:
1. SOURCE
Lamp Source: YODN 330W
Lamp Life Expectancy: 1,500 hrs
Ballast: Electronic
2. ELECTRICAL&CINTROL SYSTEM
Input voltage range: 100–240 V, 50/60 Hz
Power consumption: 480W
Control: Standard DMX-512, Sound active, auto and master/slave modes
Control channels: 20CH
Motor: 3-phase motor
Data in/out: Locking 3-pin & 5-pin XLR
Power input: Neutrik PowerCon
Display: Display mode 16 million pixel LCD touch screen, with sleep mode function
Body size: 308x360x550 mm
N.W: 17 kg
3. STROBE SYSTEN
Independent double shutter device, 0-14 times / s
0-100% linear dimming.
The lamp power is automatically reduced by 40% when it turn off in 5 seconds
Remote control switch and boot light function for bulb, default as remote control.
4. COLOR SYSTEM
14 colors+open.
Imported Italian specialty high temperature materials, Germany's high-tech coating technology.
Semi- color, full-color, single-color gradients, changeable fast forward and reverse direction rotating rainbow effect.
Automatic error correction at any angle with hall, magnet positioned.
5. GOBO SYSTEM
14 metal gobos + open, adjustable beam angle, enabling water, shake, slow-fast rotation effect.
8 rotating gobos+open, rotation angle can be adjusted
Imported Italian specialty refractory metal materials.
Automatic error correction at any angle with hall, magnet positioned .
6. PRISM SYSTEM
Prism 1: 8-facet prism rotating in both directions at different speeds
Prism 2: 16-facet linear prism rotating in both directions at different speeds
Prism3: 24-facet linear prism rotating in both directions at different speeds
7. ROTATION SYSTEM
XY motor: Fast and quiet 3-phase motor.
XY position: Encoder& Hall components position and advanced scanning memory function.
Pan:540°(16/32 bit),
Tilt 270 °(16/32 bit),
8. DMX Channel
Channel |
20 DMX Control mode: |
1 |
X |
2 |
Y |
3 |
XY speed |
4 |
Dimmer |
5 |
Stop/strobe |
6 |
Color wheel |
7 |
fixed (metal) gobo wheel |
8 |
rotating gobo wheel |
9 |
Rotating gobo wheel rotation |
10 |
Prism 1 (8 prism) |
11 |
Prism 2 (16 prism) |
12 |
Prism 2 rotating (16 prism rotating) |
13 |
Prism 3 (24 prism) |
14 |
Prism 3 rotating (24 prism rotating) |
15 |
Frost |
16 |
Focus |
17 |
Lamp control |
18 |
Pan fine |
19 |
Tilt fine |
20 |
Reset |
CH10+CH13 will create 32 prism,
CH11+CH13 will create 40 prism,
CH10+CH12+CH13 will create 48 prism.

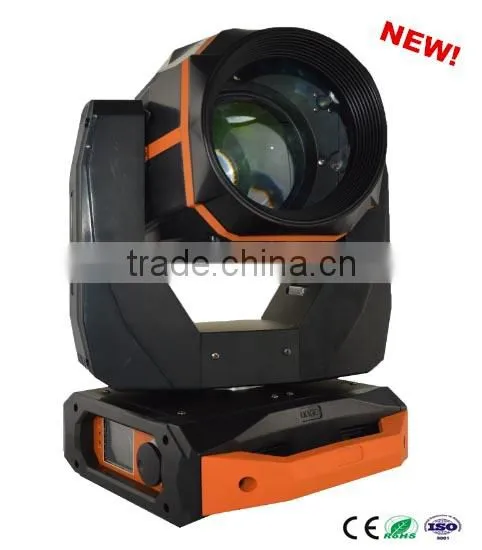

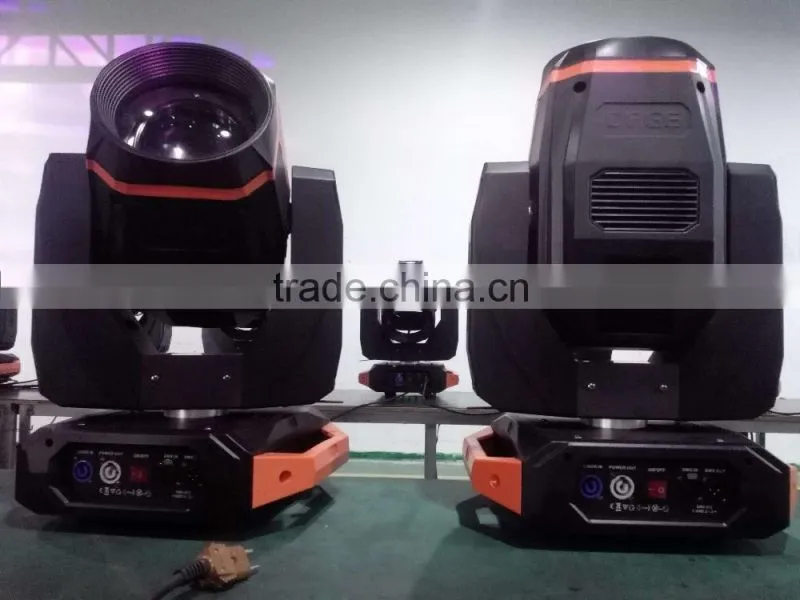

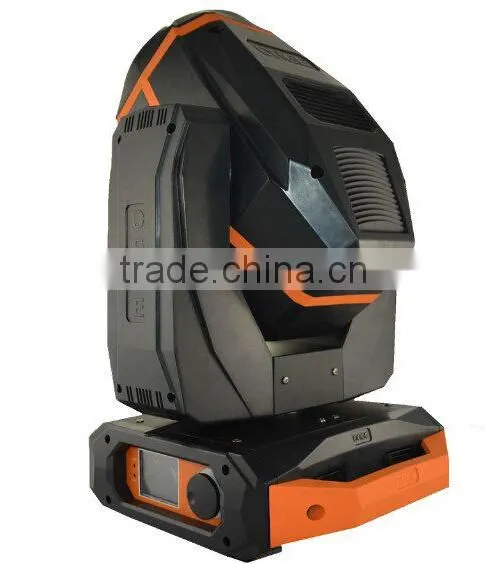

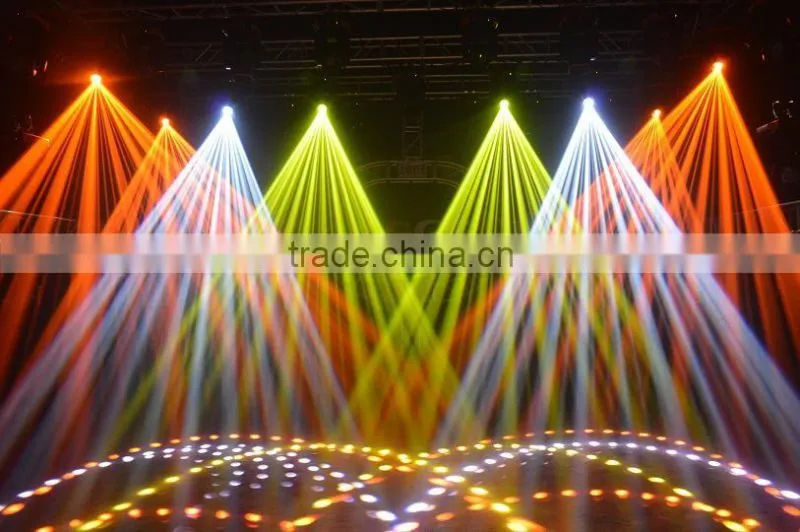

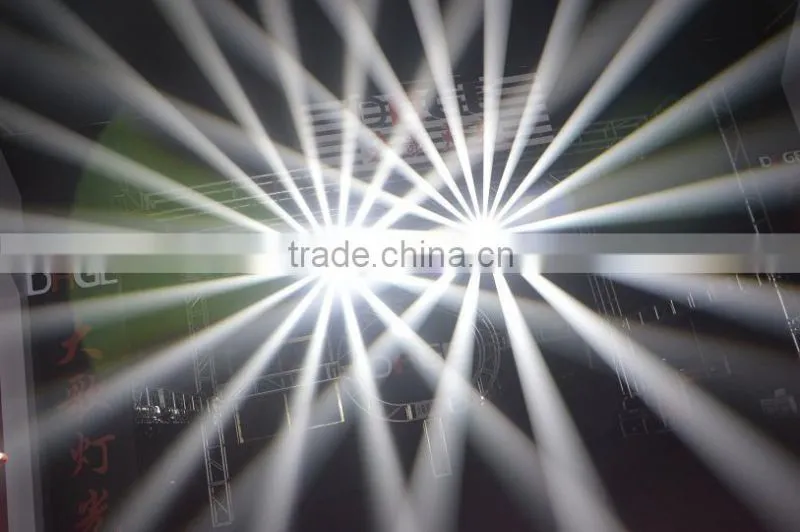

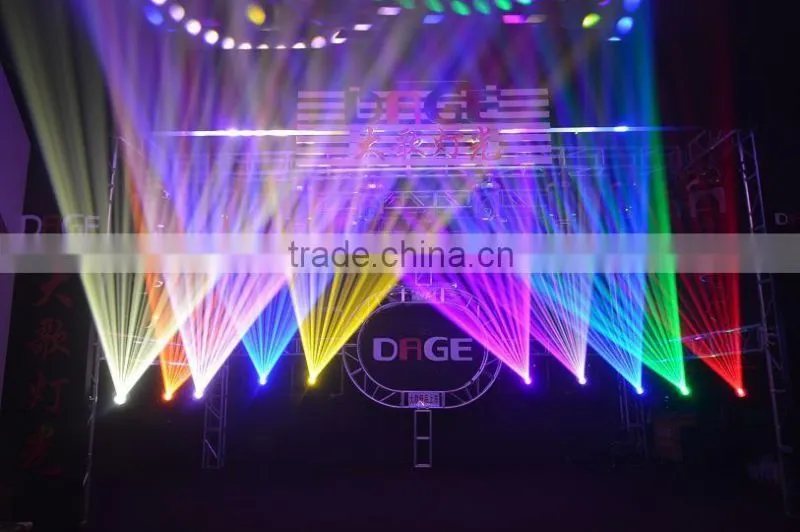

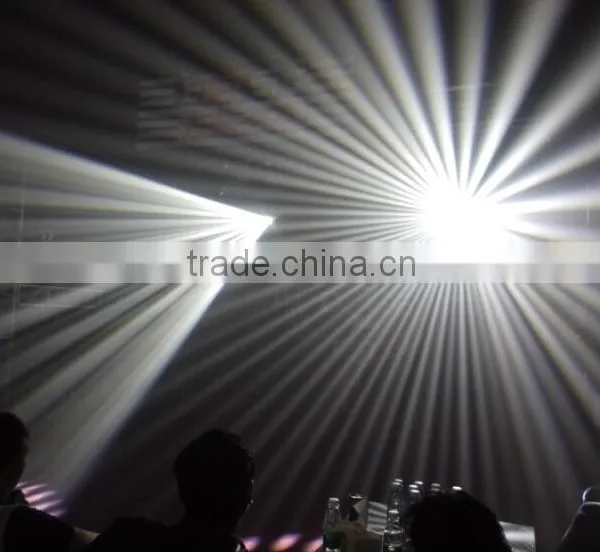

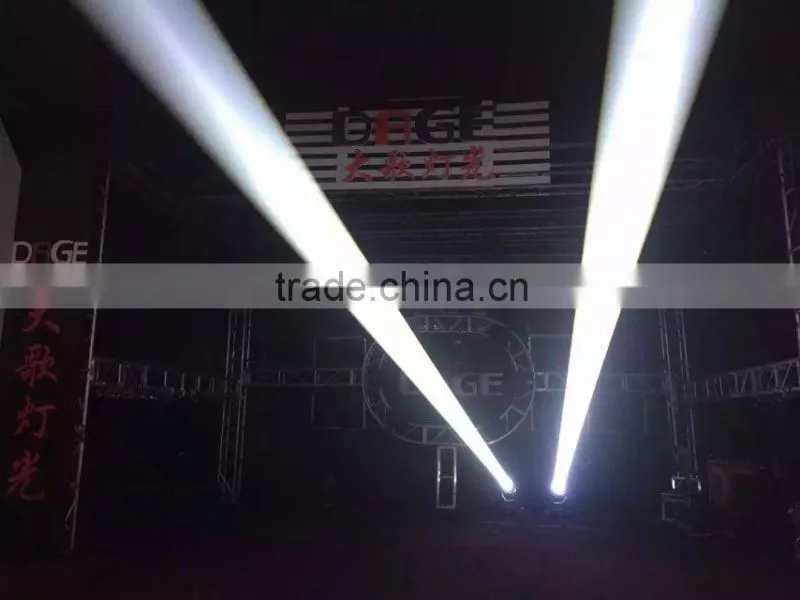

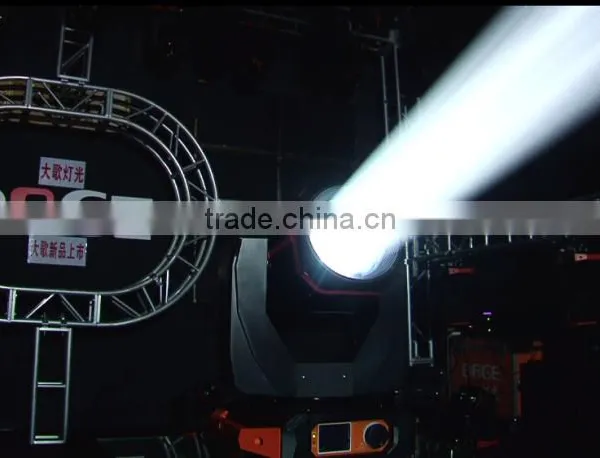

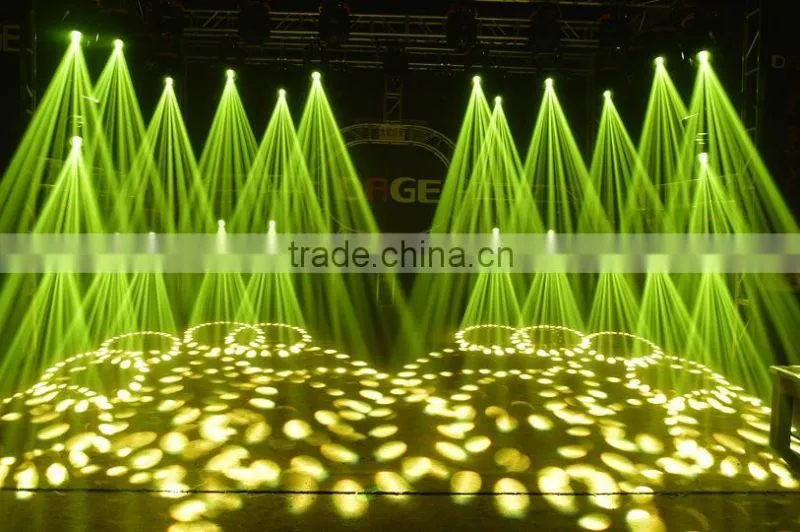

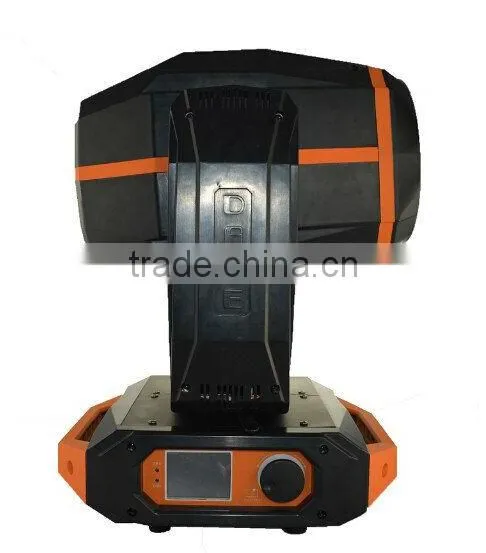

9. PRODUCT'S PHOTOS:
10. CERTIFICATES
11 ABOUT DAGE:
DAGE Stage Lighting Master Co., Ltd was founded in 2006, it’s a significant, high-tech enterprise which specialized in researching and developing moving head stage lights. Our latest products Transformers family series as following:
Deceptions (15R beam/spot/wash moving head), Optimums Prime (15R beam moving head), 15R Sky-touch beam, Megaton (7R beam moving head), 1000W 50R spot moving head and LED stage lighting series. For more than 8 years experience, we supply superior quality moving head lights for our customers from all over the world and got very high praise from them.FIRST-CLASS PRODUCTS, TOP 5 IN CHINA!
IF TAHT AWESOME FIXTURE HIT YOUR POINT? Welcome to contact me:
Mob: +86 138 2627 0232
Skype/Wechat: cherrylcy_123
WhatsApp: +8615217229331
Web: dagelight.en.china.cn
Add: 20th Hetai Road, Jiahe town, Baiyun district
Guangzhou China
