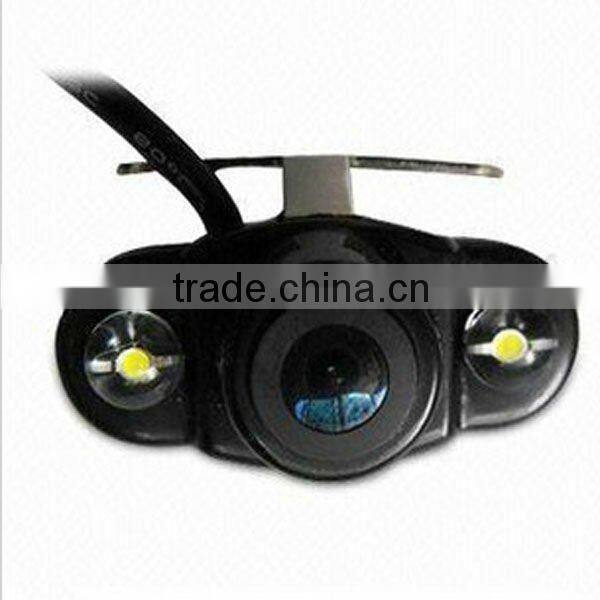

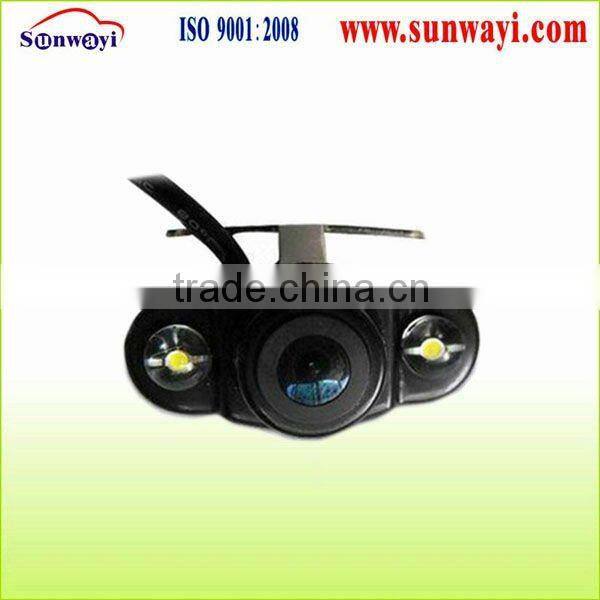

CCD Rearview Car Camera System

Name: CCD Rearview Car Camera System
Brand: Sunwayi
SKU: 118164935
Availability: InStock

Negotiable MOQ: 100 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Reverse Camera

Voltage:

DC 12V

Power:

less than 1W

Shenzhen Sunway Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Type Reverse Camera

Voltage DC 12V

Power less than 1W

Car Make all kinds

Place of Origin Guangdong, China

Brand Name Sunwayi

Model Number SW-118

Specifications

CCD car rearview camra system
1.A 6-meter video cable
2.Year warrantly,three replacement
3.Waterproof & shockproof

CCD car rearview camra system

Features:

1.) Waterproof resistance: IP68~68

2.) Auto Gain Control: Auto

3.) White balance: Auto

4.) Image pipeline features: Auto exposure, AWB, AGC, Auto flicker detection and cancellation

5.) Sync system: Internal Synchronization

6.) Power supply: DC12V±10%, Max 100m

Type:	SW-118
Signal system:	NTSC/PAL
Synchronous system:	the synchronization
Visual Angle:	120,150,170degrees (optional)
Minimum intensity of illumination:	1 Lux/F1.2
SNR:	more than 48 dB
The power supply:	DC12V
Storage temperature:	-40°C-+80°C,(RH95%Max)
Image sensor :	MT9V1361/4 COLOR CMOS
Effective pixel	PAL:720* 576 pixels NTSC: 720 * 480 pixels
Definition:	420 TV
60 Hz ac frequency:	vertical synchronization
Video output:	1.0 the vp, 75 Ohm-p
Current consumption:	the maximum 120 mA
Working temperature:	-20°C-+70°C, (RH95% Max)
Storage temperature:	-40°C-+80°C, (RH95% Max)
