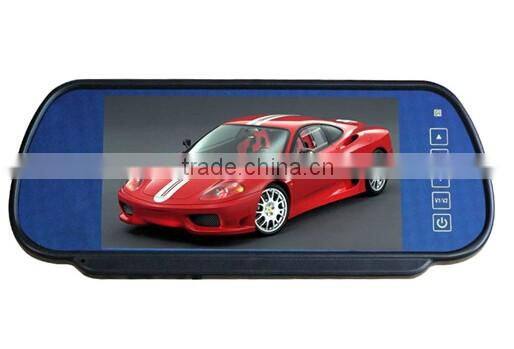

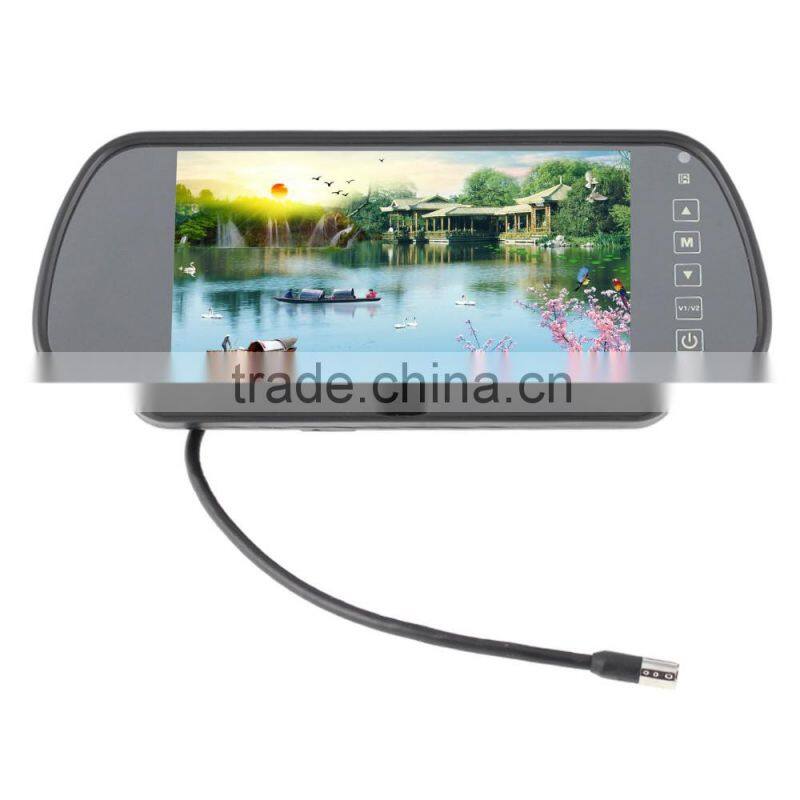

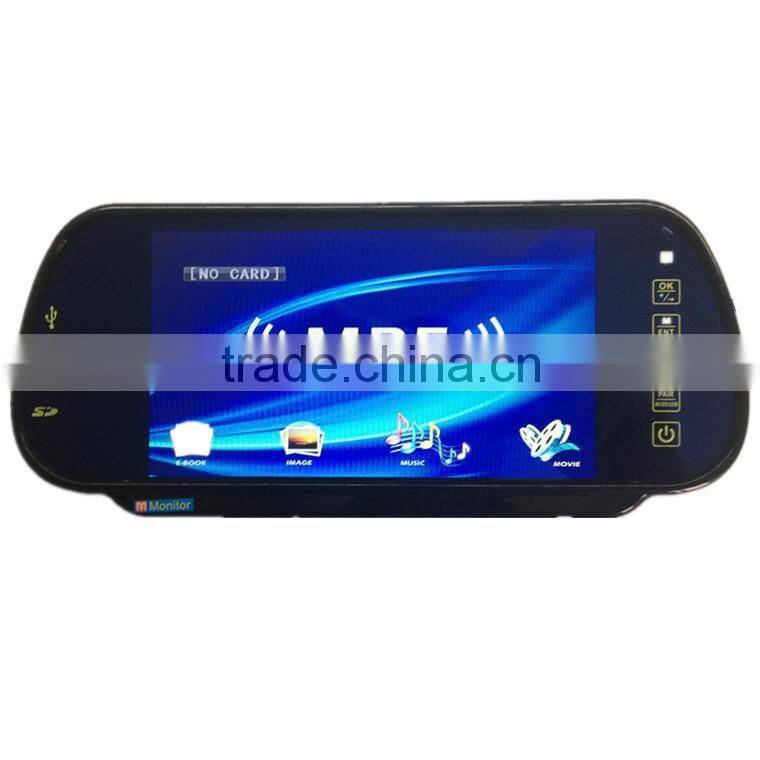

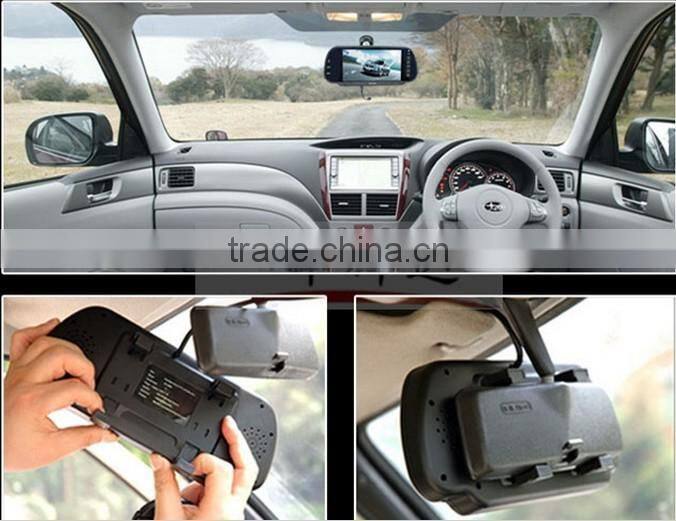

Help Center7 Inch Parking Sensor Systems With 16:9 TFT-LCD Mirror Display and Bluetooth
Related Products
-
CE Certification 5 Inch Android Vehicle DVR With WIFI GPS And Toch ScreenUS$ 50 - 80MOQ: 10 Pieces -
DC 12V 4.3 Inch Fold Parking Sensor With TFT-LCD Visual Car DisplayUS$ 20 - 30MOQ: 50 Sets
-
3 Inch TFT-LCD Mirror Display Parking Sensor Systems With DC 12V VoltageUS$ 20 - 30MOQ: 100 Sets
-
Ultrasonic Wireless LED Display Parking Sensor Type With Car Parking System and 20 to 220mA Operating CurrentUS$ 6 - 12MOQ: 100 Sets
-
Ultrasonic Radar LCD Car Parking Sensor With Reverse Aid SystemUS$ 8 - 13MOQ: 50 Sets
Features
• Display: 7 inch 16:9 TFT-LCD
• Alarm Distance 0.3m~1.5m
• Detecting distance: 0.3m~2.5m
• Camera clip: PC7070
• Definition: 420 TV Lines
• Contrast: 350:1
• Brightness: 300cd/m2
• Pixels: 480*800 /480*RGB*272
• System: PAL/NTSC
• BiBiBi /real voice beeps progressively
• Rated working voltage: 10V~12V DC
• Operating temperature: -40 ~ +80
• Operating current: 20~220mA
• Ultrasonic frequency: 40±1KHz
• Sensor is waterproof and dustproof
Detail Specification:
| Warranty | 1.5 years |
| Sound Switch (On/off) | Available |
| Sensor Quantity | 2,3,4,6,8 sensors are available |
| Buzzer Type | BiBiBi or Woman voice |
| Display | LED |
| Operating Voltage Rating | DC 12V |
| Max Power | 5W |
| Operating Temperature | -40°C~80°C |
| Display Distance | 0.3m~2.5m |
| Alarm Distance | 0.3m~1.5m |
| Alarm Voice | >80dB at 10 cm |
| Ultrasonic Frequency | 40KHz |
Packaging:
We have 5 kinds of packaging.
Standard package for export :
| Packaging | Neutral blue box package |
| Size | 24.5x18x5CM |
| Quantity | 30 PCs/carton |
| Gross Weight | 14kg |
| Carton Dimensions | 56x35x38.5CM |
| Port | shenzhen |

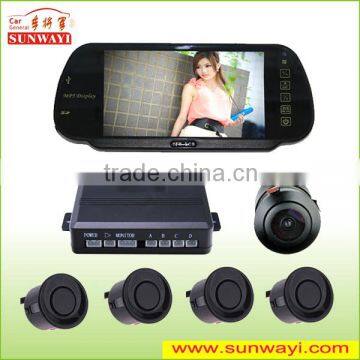

Package Includes:
· 1x Main control box
· 4x Parking sensor with 2.5M Line
· 1x Power cable
· 1x Hole drill
· 1X English manual
Alarm Mode:
Stages |
Distance(cm) |
Awareness |
Sound Alarm |
Number |
Color |
Bar |
|
Video |
LED/LCD |
||||||
1 |
>250 |
Safe |
silent |
|
white |
|
No Bars |
2 |
160-250 |
Safe |
silent |
1.6-2.5 |
white |
|
1 |
3 |
100-150 |
Safe |
Bi...Bi... |
1.0-1.5 |
white |
green |
1-6 |
4 |
70-90 |
Alert |
Bi ..Bi..Bi.. |
0.7-0.9 |
white |
green+yellow |
7-9 |
5 |
40-60 |
Alert |
Bi.Bi.Bi.Bi |
0.5-0.6 |
white |
green+yellow |
10 |
6 |
0-30 |
Dangerous |
Bi----------- |
0-0.4 |
white |
green+yellow+red |
10 |
Main control box:
Model of sensor:
