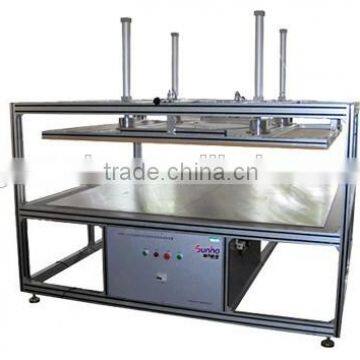

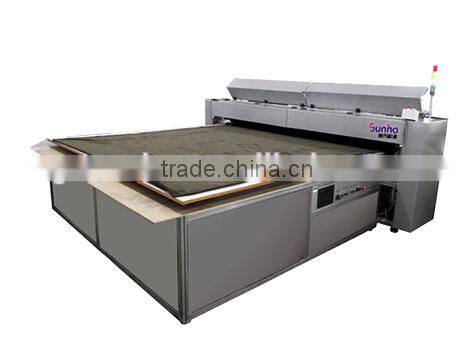

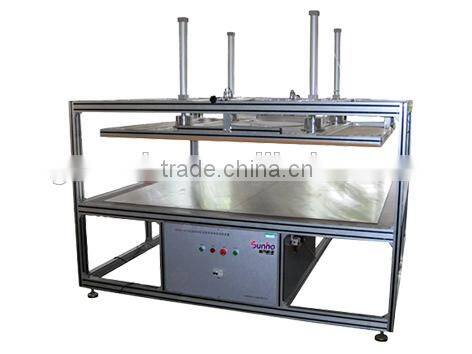

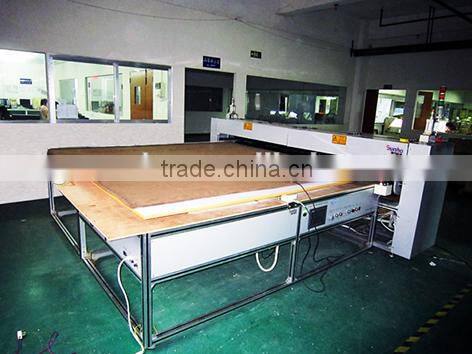

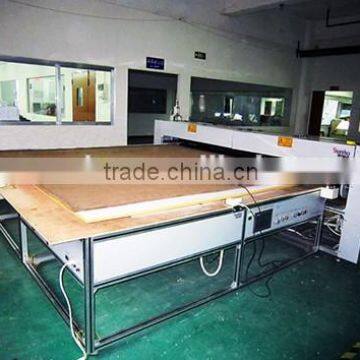

Electric Blanket Products Endurable Voltage Test Online Test Device

Name: Electric Blanket Products Endurable Voltage Test Online Test Device
Brand: Sunho
SKU: 118148751

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Sunho

Model Number:

SH9917

Guangzhou Sunho Testing Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Sunho

Model Number SH9917

Power Electronic

Usage Other

Technical characteristics

The gas of the equipment: 220V/50HZ.The gas source: 6~8KG per square centimeter(The demand-side owned the gas sources)
0.05m³/min,8kgf)
Test voltage: 500~10000V(AC); 500~6000V(DC)
Test capacity: 500VA capacity (equivalent to leakage current 40~50mA)
Digital display the test voltage and leakage current, and the sound and light alarm when it is failed.
The size of the test table surface: 2600×2400×700
On and under the insulation work table, on the able laying the metal material as the bottom of the endurable voltage test, the power of the test sample connect to the high-end of the test.
The endurable pressure worktable adopts the pneumatic control system, unilateral Ups and downs, unilateral fixed to the shaft. Through automatically on and off of the upper table surface to achieve the pressing movement of the test sample and the power supply test; or use the air pressure or the liquid lift up agencies (non-automatic), through the artificial auxiliary movement to achieve the on and off of the upper table surface (under that operation ways,the operator through the lift up agencies of the forcesaving structure,it can Convenient operation, the structural equivalent to the lift up agency of the back box of the vehicle)
Test beats: >16 seconds, the time of the open and the close movements of the equipment which included in it accounted for about 10 seconds
Aluminum alloy frame structure, imports cylinder (or hydraulic, pneumatic lift up the bodies), reliable and beautiful.
