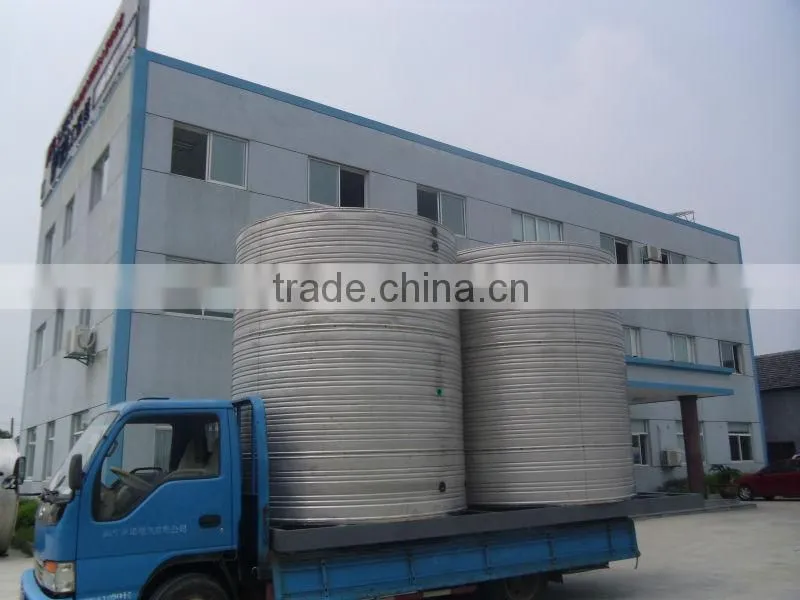

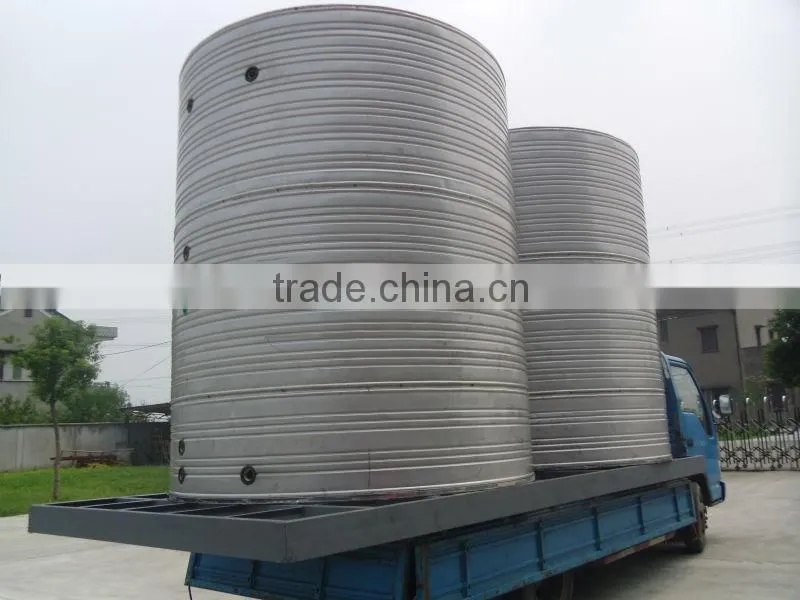

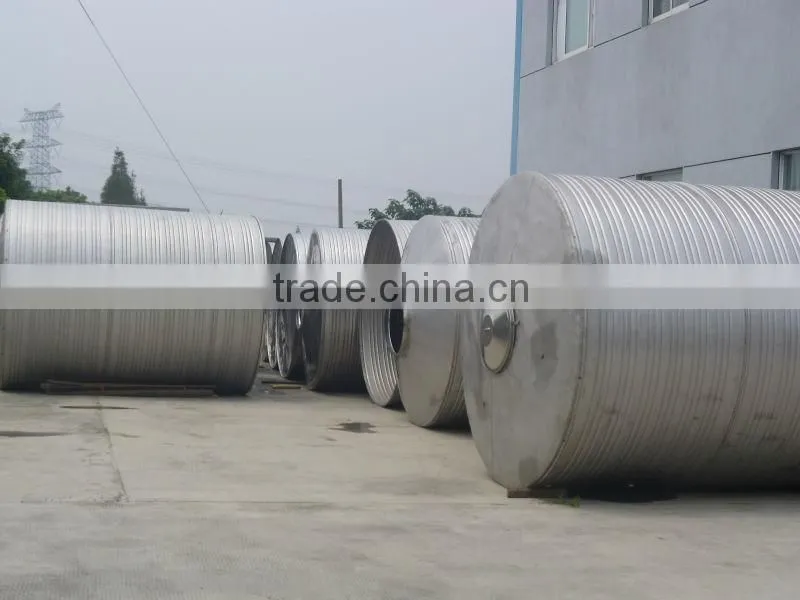

Help CenterLarge Scale Temperature Preservation Water Tank for Solar Hot Water System
Related Products
-
Stainless Steel Storage Hot Water TankUS$ 150 - 2,000MOQ: 1 Piece -
Industrial Large Scale Storage Hot Water TankUS$ 150 - 2,000MOQ: 1 Piece
-
Large Project Solar Water TankUS$ 1,600 - 10,000MOQ: 1 Ton
-
Insulated Hot Water Tank Stainless SteelUS$ 300 - 20,000MOQ: 1 Piece
-
Large-scale Solar Storage TankUS$ 300 - 3,000MOQ: 1 Piece
Specifications
1.high-density plyurethane makes heat preservation for 72-80 hours ,2.anti- erosion effect and lifespan more than 30 years
- technical parameters
|
Heat Pipe Solar Collector |
Spec.(mm) |
Φ47×1500 Φ58×1800 |
Tube (pcs) |
12 / 15 / / 20 / 25 / 30 |
|
Vacuum Tube |
Borosilicate glass, red copper heat pipe, aluminum fin |
|
Manifold |
Copper flow passage, PU insulation, Aluminium alloy shell |
|
Water Tank |
Capacity |
100 ~ 500L for storage tank |
Inner Tank |
Food-grade stainless steel SUS304-2B 1.2-2.0mm |
|
Copper coil |
High-quality red copper coil Φ12X1.0mm |
|
Insulation |
High-density polyurethane integrated foam-forming 50mm |
|
Tank shell |
Color steel plate |
|
Collector Bracket |
Spec.(mm) |
1.5 ~ 2.0mm in thickness |
Material |
Aluminium alloy plate |
|
Accessories |
Workstation system, Electric heater, E-Parts box, thermostat, Switch, Anode magnesium bar, T/P valve, Relief valve, dustproof ring |
|
Working Pressure |
≥ 6 bar |
|
Hail Resistance |
Φ25mm diameter |
|
Pressurized Water Tank:
1) Inner water tank: Thicken food-grade stainless steel SUS304-2B as inner tank keeps the water clean and drinkable, automatic argon-arc welding technics ensures no leakage and long lifespan ( more than 30 years)
2) Tank shell: color steel plate with outer painting or baking treatment as exterior shell, much durable and appealing.
3) Insulation Layer: High-density polyurethane Integrated-foaming with twice slaking treatment, preserves water temperature constantly
4) Pressurized water tank with super hydraulic pressure bearing makes your hot water using more comfortable
5) Copper coil inside storage tank exchanges heat from collectors medium to water very efficiently, one more copper coil installed in the tank top could be connected with radiator for house heating or with other heating devices such as gas boiler to assist solar water heating in bad weather.
Warranty:
3 years international responsibility for integrated system exchange and 15 years for glass vacuum tube compensation due to original quality problems
