Specifications
Solar Collector1.OEM avalliable
2.economical and efficient collector
3.for large quantity solar heating system
Technical Parameters
Vacuum tube |
Spec.(mm) |
Φ58×1800 |
Tube (pcs) |
40 / 50 / 60 / 70 |
|
Material |
3.3 Borosilicate glass, magnetron spluttering coating |
|
Coating |
AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN |
|
Manifold |
Dimension |
180*160mm, 1.0 inch inlet & outlet |
Inner tank |
Food-grade SUS304-2B stainless steel |
|
Tank shell |
Imported color steel / Fluorocarbon (PVDF) plate |
|
Insulation |
High-density polyurethane integrated foam-forming layer |
|
Bracket |
Hot-dip galvanized steel plate (powder coating or paint baking) |
|
Accessories |
Stainless bolts & nuts, waterproof silicon rubber seal, dustproof rubber seal, plastic tube holder |
|
Working pressure |
≤ 1 bar |
|
Tilt angle |
0~ 90° |
|
Hail resistance |
Φ25mm diameter |
|
Features description:

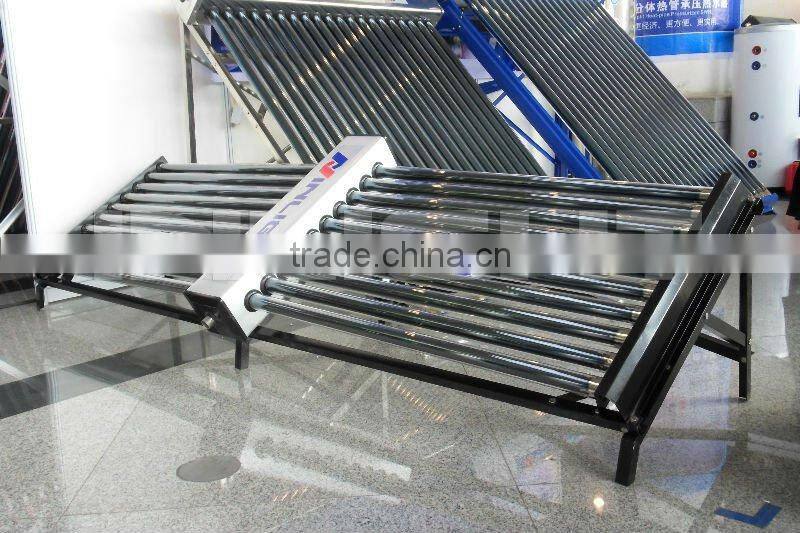

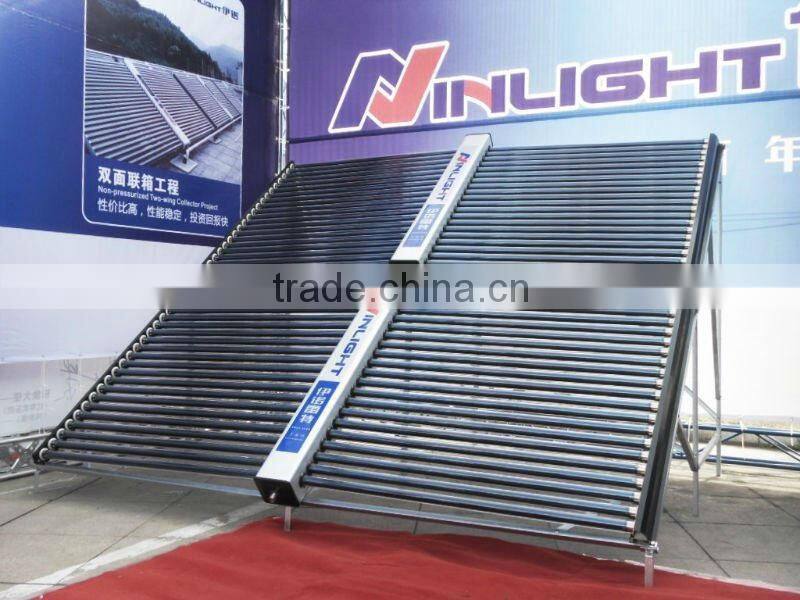

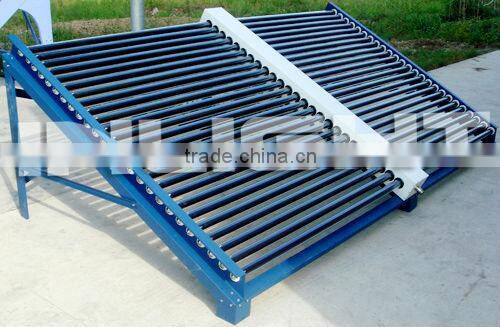

The glass tube solar collector (nonpressurized) consists of glass vacuum tube, nonpressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.
1. Especially designed for large-scale hot water heating system, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools, and some other sites requiring hot water use or house heating.
2. All-glass vacuum tube, most economical and good performance at the same time
3. Processed color steel shell and galvanized bracket make it a long lifespan as vacuum tubes
4. Easy installation and connection and little maintenance needed
Warranty: 3 years international responsibility for integrated collector exchange and 15 years for glass vacuum tube compensation due to original quality problems
