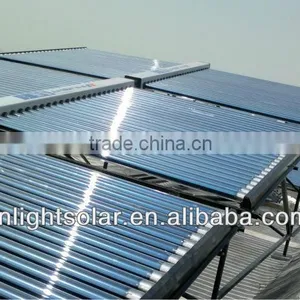

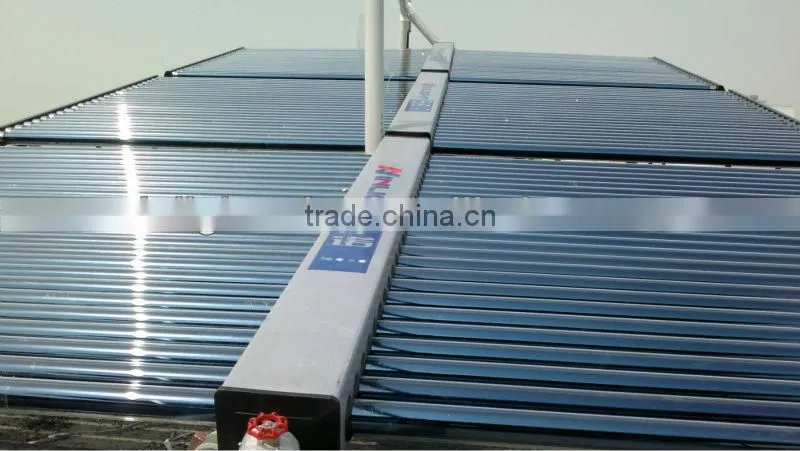

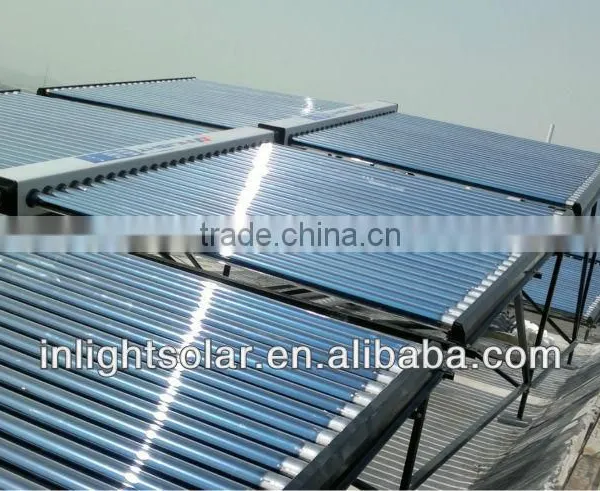

2000L Solar Water Heater Solar Geysers for Staff Quarter Motor Lodge
US$ 200 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Evacuated Tube
Pressure:
Unpressurized
Circulation Type:
Other, Indirect / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
500L to 10000L Solar Water Heating System(for School,hotel,hospital)US$ 200 - 15,000MOQ: 1 Set -
Glass Tube Solar Themal Water Heating System With Non PressureUS$ 1,000 - 20,000MOQ: 5 Pieces
-
Solar Water Heating System With Low Pressure Solar CollectorUS$ 1,000 - 20,000MOQ: 5 Pieces
-
5000L Evacuated Tube Solar Energy Water Heating SystemUS$ 200 - 20,000MOQ: 5 Pieces
-
Low Pressure Solar Energy Heating System With Evacuated TubesUS$ 1,000 - 20,000MOQ: 5 Pieces
Type
Evacuated Tube
Pressure
Unpressurized
Circulation Type
Other, Indirect / Open Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Other
Installation
Freestanding
Housing Material
Stainless Steel
Certification
CE, Other, CE, Solar keymak,SRCC,INMETRO,ISO9001:2008
Capacity
2000
Place of Origin
Zhejiang, China
Brand Name
Inlight or OEM
Specifications
Offer different large capacity Solar Water Heater Solar Geysers and solutions for hotel,school,hospital and industrial plants.Haining Yinuo electric Co., Ltd manufactures and supplies large volume Solar Water Heater Solar Geysers for hotels, schools,hospitals and industrial plants.OEM and ODM order is welcomed.
Specifications and details for Solar Water Tank:
1. Unit tank capacity: 500L - 10,000L
2. Material: Stainless steel
3. Insulation layer: Polyurethane foam
Specifications and details for solar panel(solar collector)
| Item No. | Solar Vacuum Tube | Aperture | Collector Size | Package | Container Loading | ||
| Tube Size/ mm | Tube Nos. | Area (m2) | L*W (mm) | Volume/cbm | 20GP | 40GP | |
| ILVC-4715V40-CA | Φ47*1500 | 40 | 2.49 | 3110*1480 | 0.37 | 78 | 189 |
| ILVC-4715V50-CA | Φ47*1500 | 50 | 3.11 | 3110*1805 | 0.52 | 55 | 134 |
| ILVC-4715V60-CA | Φ47*1500 | 60 | 3.73 | 3110*2130 | 0.63 | 46 | 112 |
| ILVC-5818V40-CA | Φ58*1800 | 40 | 3.77 | 3710*1680 | 0.67 | 43 | 104 |
| ILVC-5818V50-CA | Φ58*1800 | 50 | 4.71 | 3710*2055 | 0.80 | 36 | 87 |
| ILVC-5818V60-CA | Φ58*1800 | 60 | 5.66 | 3710*2430 | 1.00 | 29 | 70 |
| 1. Inner of manifold: Food-grade stainless steel SUS304-2B or 316 0.4mm | |||||||
| 2. Exterior Shell: Color steel / Aluzinc / Fluorocarbon plate 0.4mm | |||||||
| 3. Insulation: High-density polyurethane integrated foam-forming layer 40-50mm | |||||||
| 4. Manifold Inlet & Outlet: Food-grade stainless steel, 1 inch male threaded | |||||||
| 5. Vacuum Tube: Borosilicate glass vacuum tube, AL-N/AL or Cu-SS-ALN/AIN coating | |||||||
| 6. Bracket: Painted black galvanized angle steel | |||||||
| 7. Accessories: Stainless fasteners, anti-aging silicon rubber seal & dustproof rubber seal | |||||||
| 8. Collector Tilt Angle: 20°~90°(Vertical/ horizontal shift: -5°/-5°) | |||||||
| 9. Hail Resistance: Φ25 mm (tilt angle>40°) | |||||||
