12V rear view camera with parking assist device
Features:
1, Colorful TFT-LCD displayer show image of real scence.
2, Obstacle distance can be show on LCD monitor in digits.
3, Visual and audible warning to prevent bumping.
4, Working automatically when reversing.
5, Alarm type: BiBiBi warning sound or human voice.
7. Detection in all directions without dead angle.
7. Easy installation, totally built-in mounting with no bad effect to the car appearance.
Technical Parameters:
Display |
4.3’’ display |
Brand |
Car General/OEM |
Sensor Quantity |

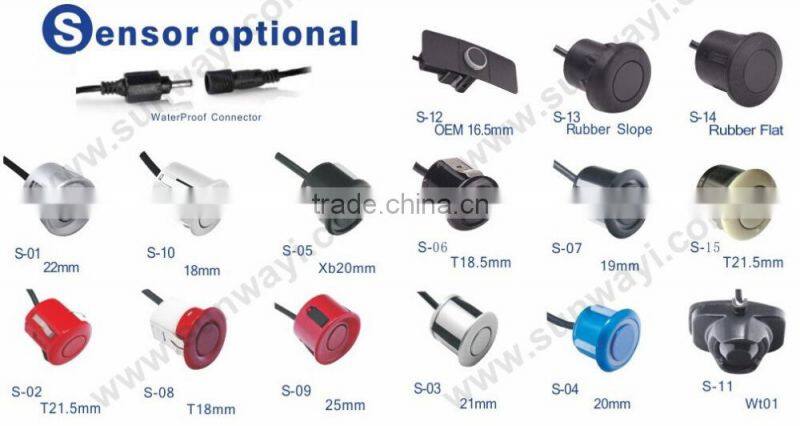

2,3,4,6,8 sensors are available |
Warming Sound |
BiBiBi or human voice |
Detecting Distance |
0.3m~2.5m |
Alarm Distance |
0.3m~1.5m |
Image sensor |
1/4 CMOS |
Imaging clip |
PC7959 or PC7070 |
Signal system |
NTSC/PAL |
Effective Pixels |
628*582 pixels or 580*492 |
Definition |
420 TV Lines |
Lens angle |
90degrees and 170 degrees is optional |
Waterproof grade |
IP67 |
Operating Voltage Rating |
DC 12V |
Max Power |
5W |
Operating Temperature |
-35°C~75°C |
Alarm Voice |
>80dB at 10 cm |
Ultrasonic Frequency |
40KHz |
Wide-Angle, Waterproof, Anti-shake and Anti-mist. | |
Alarm Mode:
Alarm Level |
Distance between car rear and obstacles |
Digital Display |
Sound |
Range |
6 |
2.5M < S |
- - |
--- |
Safe |
5 |
1.6M ≤ S ≤2M |
Show the actual distance |
--- |
Safe |
4 |
1M ≤ S ≤ 1.5M |
Show the actual distance |
BI---BI---BI |
Safe |
3 |
0.5 ≤ S ≤ 0.9M |
Show the actual distance |
BI—BI--BI |
Warning |
2 |
0.3 ≤ S ≤0.4 M |
Show the actual distance |
BI-BI-BI |
Dangerous |
1 |
S ≤ 0.2M |
0.0 |
BI----- |
Dangerous |

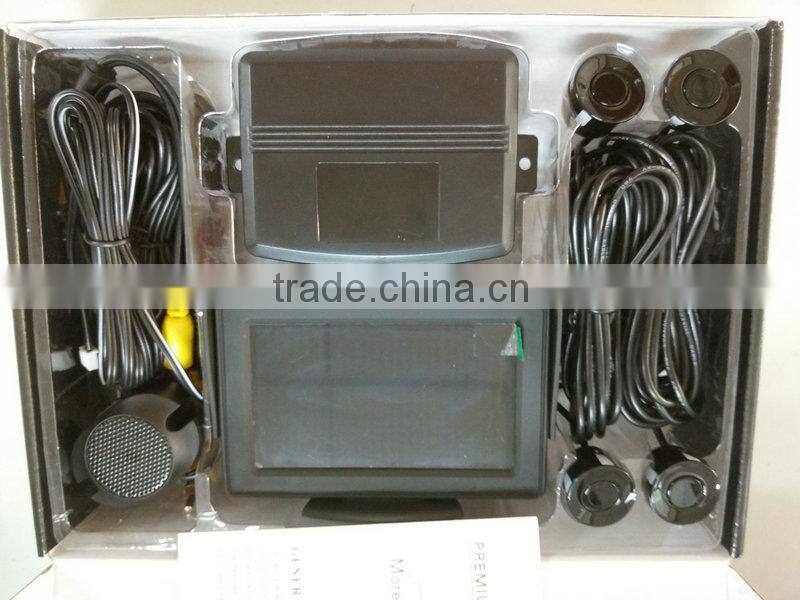

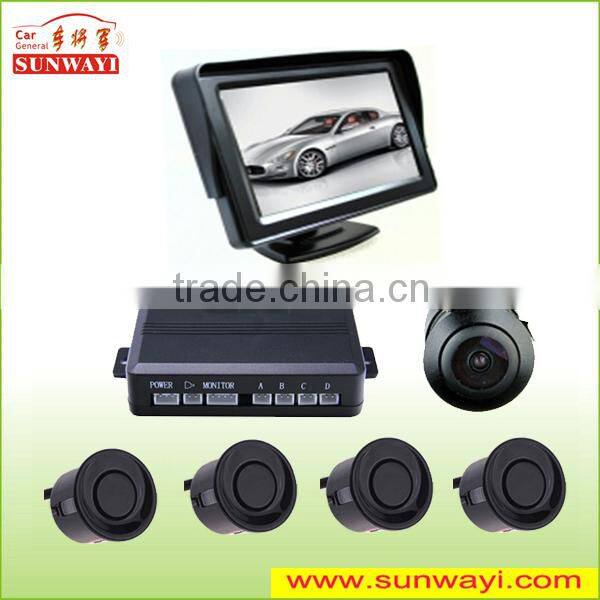

Package Includes:

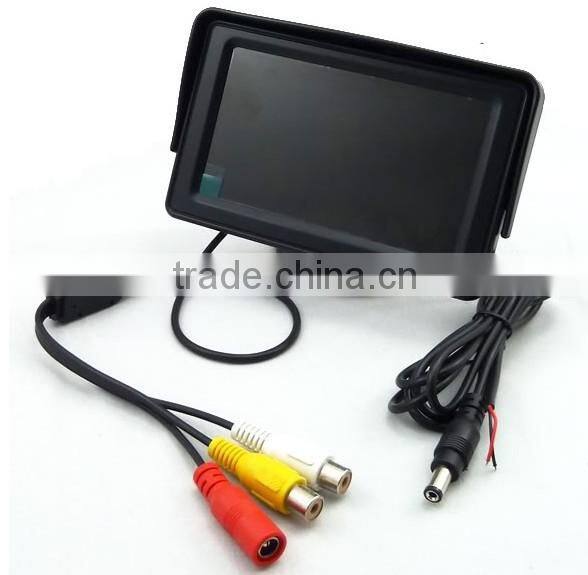

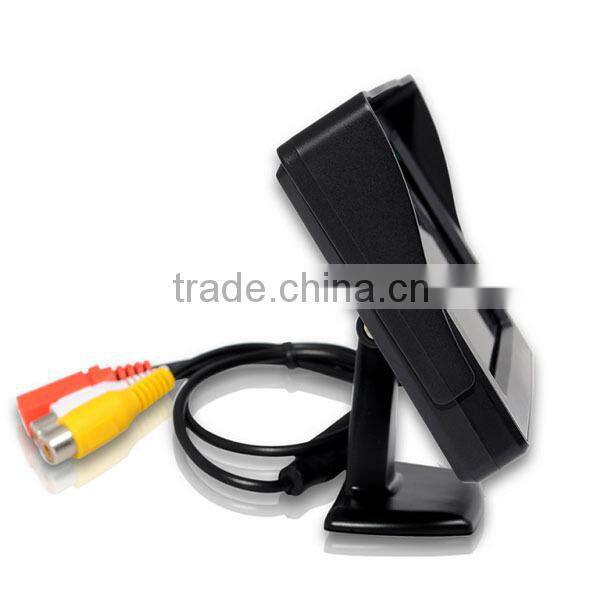

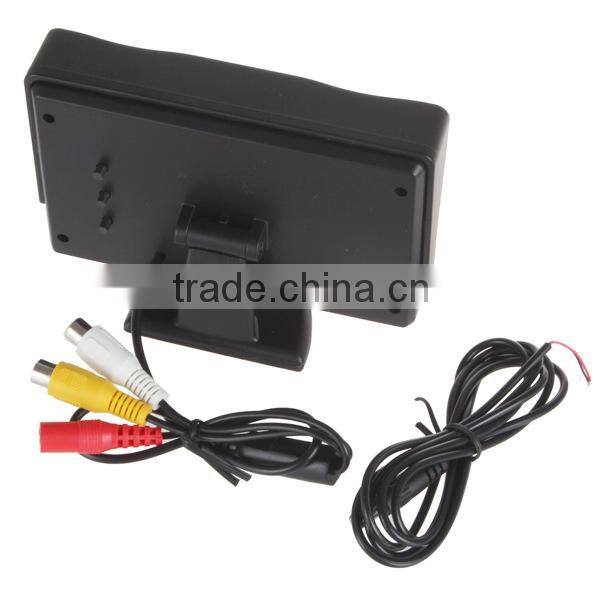

1 x 4.3" TFT Display
1 x Main Control Box

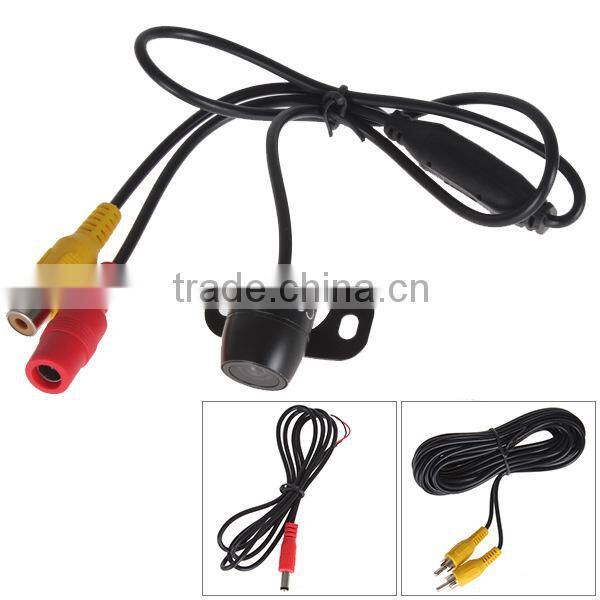

1 x Camera
1 x Buzzer
4 x Sensors with 2.5M Line
1 x 22mm Drill (Different Size of sensors)
1 x Power Cable
2 x DC cables
1 x 18mm Drill for camera
1x English manual
Neutral box package, Carton Size:56*35*38.5CM, 20sets/CTN
More Choices:
1).Payment method: T/T, L/C at sight, Paypal, Western Union are available for your option.
2).Payment terms: 30% deposit before mass production, 70% before shipment.
Delivery Terms:
1).Delivery method: by sea/air, by DHL, Fedex, TNT, UPS, EMS
2). Massive order delivery time: 7~10 working days
3).Sample lead time: 3~5 days
4). All the products come out one year warranty
Our Services:
1) One-to-one service with efficient support;
2) OEM&ODM: OEM packages no extra charges for over 1000sets
3) Protection of your design and all your private information
4) We could supply unique items;
5) Payment terms: TT, Paypal, Wertern Union and others.
6) Speedy shipment: we could arrange the shipment within 5 business days
