Help Center433.92MHz RF TPMS Built-in Type Car Tire Pressure Monitoring System
Related Products
-
2015 Hot Selling Wireless Car TPMS, Digital Tire Pressure GaugeUS$ 50 - 80MOQ: 50 Sets -
Manufacturer High Sensitive Wireless Car External Tpms SensorUS$ 40 - 70MOQ: 50 Sets
-
2015 Hot Selling Car Wireless Truck Tpms SensorUS$ 80 - 110MOQ: 50 Sets
-
433.92MHz RF TPMS Built-in Type Car Wireless Lcd Display TPMS SensorUS$ 50 - 80MOQ: 50 Sets
-
New Internal External Sensor Digital CE Tpms for Bus and TruckUS$ 40.8 - 79.8MOQ: 10 Pieces
Key Specifications/Special Features:
- Square CIG plug TPMS
- Match with valve-cap external sensors

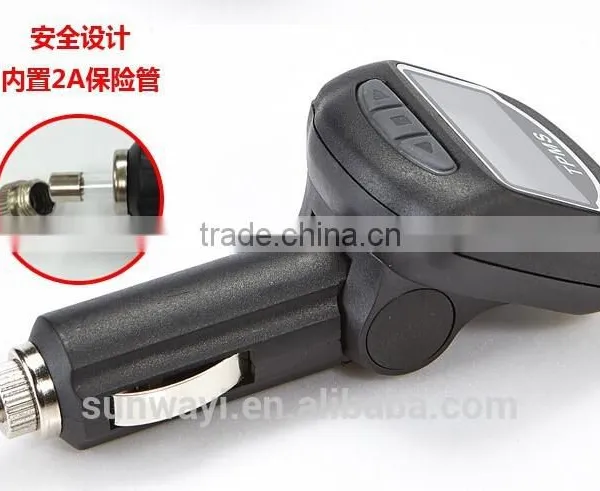

- Multi-color LED cigarette lighter plug display
- Visual & audible warning indicator
- Tire position indicator scrolls clockwise to show individual real-time tire pressure
- Fixed Bar and PSI pressure unit for selection
- Replaceable battery for valve-cap sensor: CR1632
Monitor Parameter:
• Display usage: digital
• Receiving frequency: 433.92MHZ
• Receiving sensitivity: ≤-100dB
• Working current:
Alarm: ≤70mA
No alarm: ≤40mA
• Working Voltage: DC 8V-24V
• Working temperature range: -20°C~+70°C
• Warning: Voice/light/visual flash

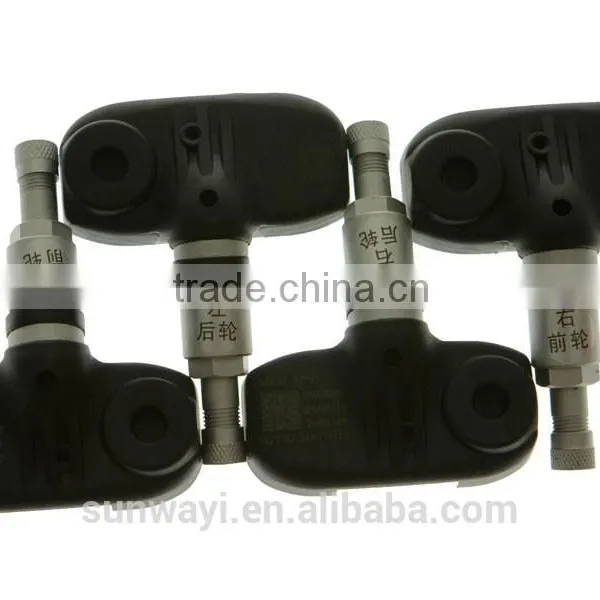

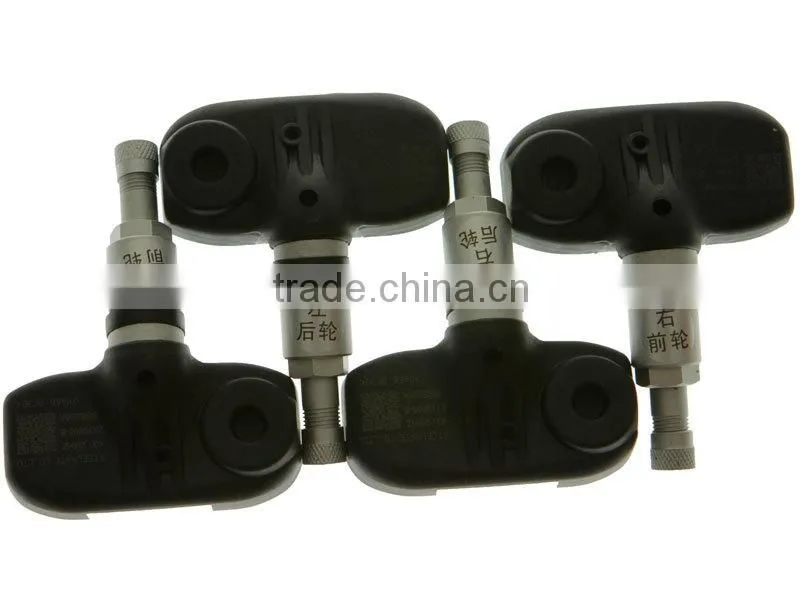

Sensor parameter:
• transmitting frequency: 433.92MHz
• Transmitting way: FSK
• pressure measurement range: 1-4.5BAR
• Working temperature: -20°C~+105°C
• Temperature measurement range:-30°C~+120°C
• Working Voltage: DC 2.2V-3.6V
• Antenna type: helical antenna
• Pressure accuracy: ≤0.1BAR
• Humidity: 1%-100%
• Battery type button battery: CR1632
• Battery life: >3years/ 50000KM

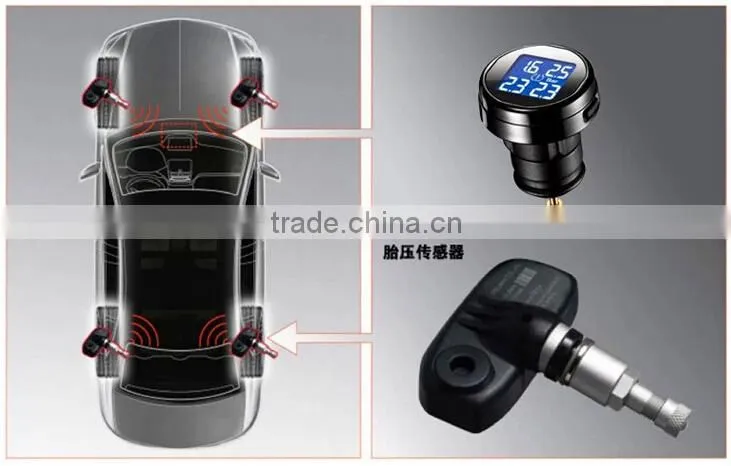

1. Real-time monitoring tire, enhance driving safety.
2. When the tire 's temerature or pressure under abnormal status, it will warn immediately.
3. Tire pressure monitoring system with cigarette plug display, angle adjustable, DIY install for 1 minutes.
More Choice:
1).Payment method: T/T, L/C at sight, Paypal, Western Union are available for your option.
2).Payment terms: 30% deposit before mass production, 70% before shipment.
Delivery Terms:
1).Delivery method: by sea/air, by DHL, Fedex, TNT, UPS, EMS
2). Massive order delivery time: 7~10 working days
3).Sample lead time: 3~5 days
4). All the products come out one year warranty
Our Services:
1) One-to-one service with efficient support;
2) OEM&ODM: OEM packages no extra charges for over 1000sets
3) Protection of your design and all your private information
4) We could supply unique items;
5) Payment terms: TT, Paypal, Wertern Union and others.
6) Speedy shipment: we could arrange the shipment within 5 business days
