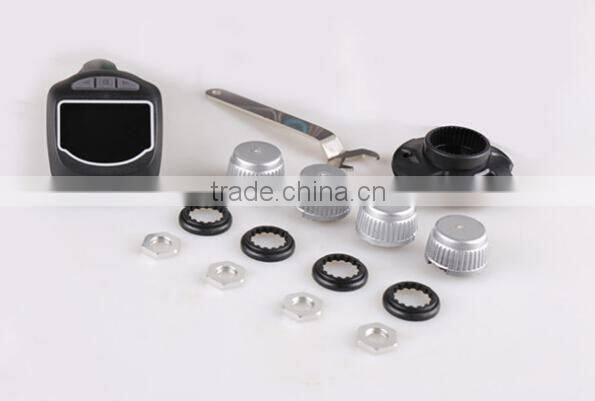

Manufacturer High Sensitive wireless car external tpms sensor
Key Specifications/Special Features:
1. Real-time monitoring tire, enhance driving safety.
2. When the tire's temperature or pressure under abnormal status, it will warn immediately.

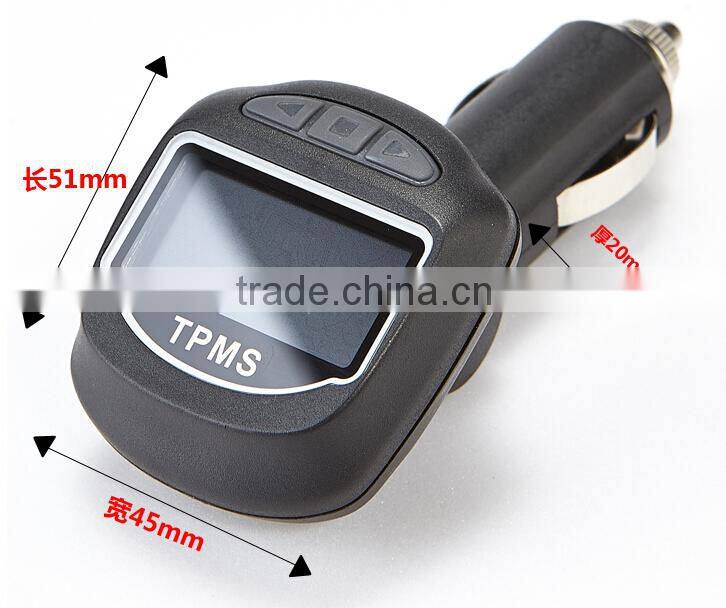

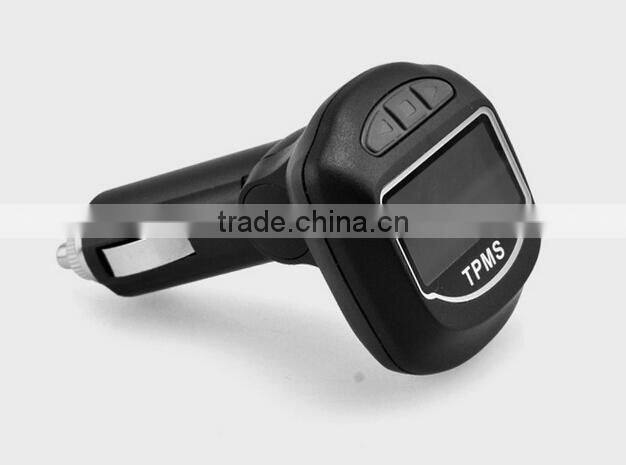

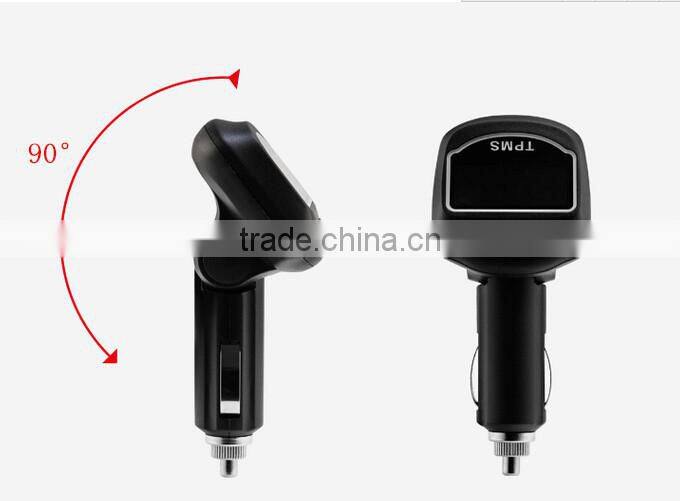

3. Tire pressure monitoring system with cigarette plug display, angle adjustable, DIY install for 1 minute.
-
Monitor Parameter:
• Display usage: digital
• Receiving frequency: 433.92MHZ
• Receiving sensitivity: ≤-100dB
• Working current:
Alarm: ≤70mA
No alarm: ≤40mA
• Working Voltage: DC 8V-24V
• Working temperature range: -20°C~+70°C
• Warning: Voice/light/visual flash
Sensor parameter:
• transmitting frequency: 433.92MHz
• Transmitting way: FSK
• pressure measurement range: 1-4.5BAR
• Working temperature: -20°C~+105°C
• Temperature measurement range:-30°C~+120°C
• Working Voltage: DC 2.2V-3.6V
• Antenna type: helical antenna
• Pressure accuracy: ≤0.1BAR
• Humidity: 0%-100%
• Battery type button battery: CR1632
• Battery life: >2years/ 30000KM
How the TPMS System work:

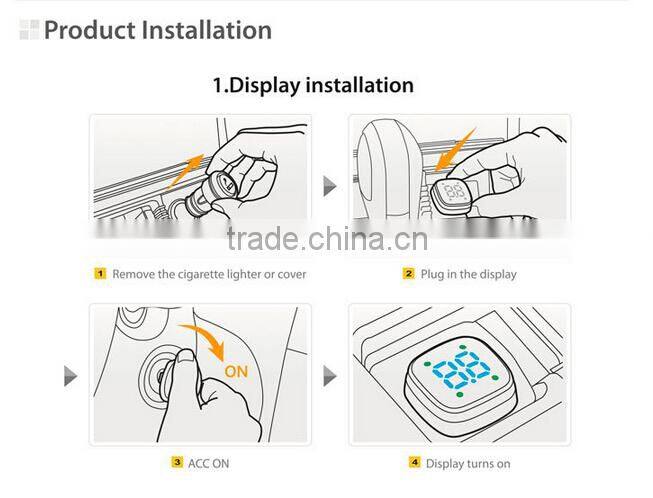

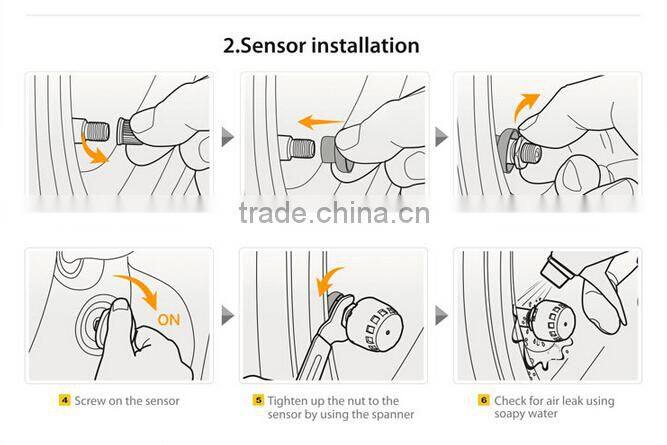

The Wireless external sensors are fitted by simply screwing them on to your valve stem. Once the Sensors are fitted and the monitor/receiver is plugged into a 12V DC Output , the installation is complete.
The sensors will start transmitting once you reach over approx. 20km/h.
The receiver will then rotate the latest pressure reading for each tyre position.
This unit has a preset Low Pressure and High Pressure warning when production and which can be changed or program by the user.
The Low Pressure Warning is set to 29PSI. If your tyre pressure drops below 29PSI, the Receiver will beep and flash.
The High Pressure Warning is set to 43PSI. If your tyre pressure raises above 43PSI, the Receiver will beep and flash.
More Choice:
1).Payment method: T/T, L/C at sight, Paypal, Western Union are available for your option.
2).Payment terms: 30% deposit before mass production, 70% before shipment.
Delivery Terms:
1).Delivery method: by sea/air, by DHL, Fedex, TNT, UPS, EMS
2). Massive order delivery time: 7~10 working days
3).Sample lead time: 3~5 days
4). All the products come out one year warranty
Our Services:
1) One-to-one service with efficient support;
2) OEM&ODM: OEM packages no extra charges for over 1000sets
3) Protection of your design and all your private information
4) We could supply unique items;
5) Payment terms: TT, Paypal, Wertern Union and others.
6) Speedy shipment: we could arrange the shipment within 5 business days
