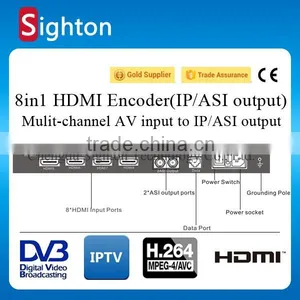

8 Channel HDMI to IP Encoder

Name: 8 Channel HDMI to IP Encoder
Brand: Sighton
Price: USD $1 - 2,600 / Set

FOB Price

USD $1 - $2,600 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Chengdu Shenzhen Shanghai Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Sichuan, China

Brand Name:

Sighton

Model Number:

STHD-5518

Product Description

8 Channel HDMI to IP Encoder

Weclome to contact Belle to fetch more quickly by Skype: fredasighton

Product Description

Outline

8 in 1 MPEG-4 AVC/H.264 HD encoder professional HD audio & video encoding and multiplexing device with powerful functionality. It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 High Profile code format & main Profile code format, and also 1 ASI input for re-mux. It can multiplex the ASI input TS and the 8 encoded SPTS to generate a MPTS output with the inserted PSI/SI information. In conclusion, its high integration and cost-effective design make this device widely used in variety of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.

Except for 8 hdmi encoder model, there are 4sdi/hdmi encoder,8 sdi encoder, 4 cvbs and 8cvbs encoder,etc.Pls contact us to fetch more.

What is the Features of our encoder ?

Support 8 HDMI/SDI channels input & 1 ASI Input
Support H.264/AVC video encoding
Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR/CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTSSupport IP null packet filter
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)

What is the Specification of our encoder ?

Input	8×HDMI (or SDI) inputs
	1 ASI input, BNC interface
Video	Resolution	1920×1080_60P, 1920×1080_50P
		1920×1080_60i, 1920×1080_50i
		1280×720_60P, 1280×720 _50P
		720×576_50i, 720×480_60i
	Encoding	MPEG-4 AVC/H.264
	Bit-rate	0.8Mbps~19Mbps (each channel)
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, Noise Reduction, Sharpening
Audio	Encoding	MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option)
	Sampling rate	48KHz
	24-bit	Resolution
	Bit-rate	64Kbps~384Kbps each channel
Multiplexing	1 ASI input multiplexed with local 8 channels of TS
Stream output	2*ASI output, BNC interface
	MPTS and 8 SPTS over UDP/RTP, 1000 Base-T Ethernet interface (unicast / multicast);
System function	LCD/keyboard operating, net manager (SNMP)
	Chinese-English control interface
	Ethernet software & hardware upgrade
Miscellaneous	Dimension (W× L× H)	440mm×410mm×44.5mm
	Approx weight	4kg
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power	AC 100V-220V±10%, 50/60Hz
	Consumption	25W

What is the Applications of our 8 channel hdmi encoder ?

What is the System Applications of our encoder?

Except that 8 in 1 HDMI H.264 Encoder can be used for IPTV and DVB-C system, it is also usually used for DVB-T/T2,DVB-S2 System.If you need know more, pls contact us to fetch.
