Cost-effective demodulation descrambler and decoder tv receiver with rf tuner

Name: Cost-effective demodulation descrambler and decoder tv receiver with rf tuner
Brand: Sighton
Price: USD $1 - 1,500 / Set

FOB Price

USD $1 - $1,500 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Chengdu Shenzhen Shanghai Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Sichuan, China

Brand Name:

Sighton

Model Number:

STSS-9940

Product Description

Cost-effective demodulation descrambler and decoder tv receiver with rf tuner

Product Description

Outline

The IRD is all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/T2, S/S2 optional) in one case to convert RF signals into analogue video (CVBS) output.

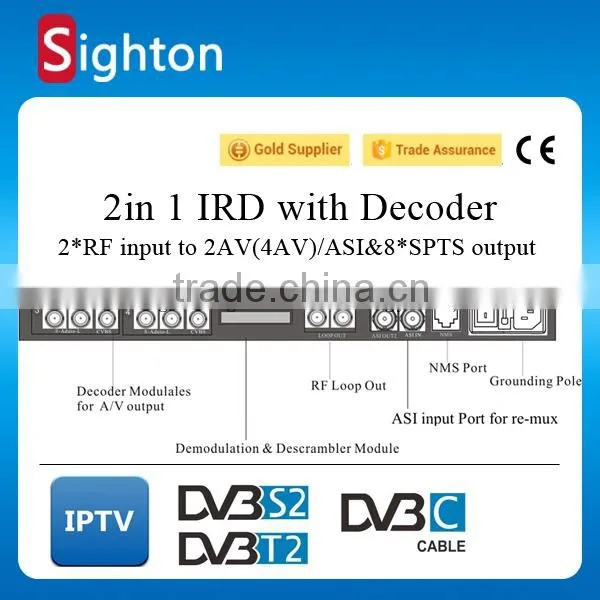

It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

BISS function is also embedded to descramble programs from any input.

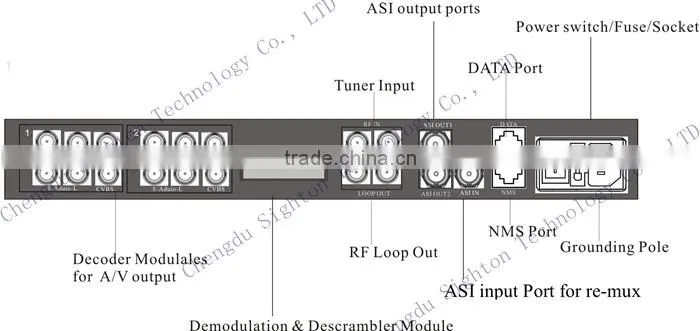

Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.

To meet customers’ various requirements, it is also equipped with 1 ASI input, and output with 2 ASI ports and IP port.

Except for 2 in 1 dvb-s2 sd ird with 4cvbs output, there are fta receiver, digital to analog video decoder, ip tv decoder,hd ird, dolby digital 5.1 decoder with biss,etc.Pls contact us to fetch more.

What is the Features of our tv receiver with rf tuner?

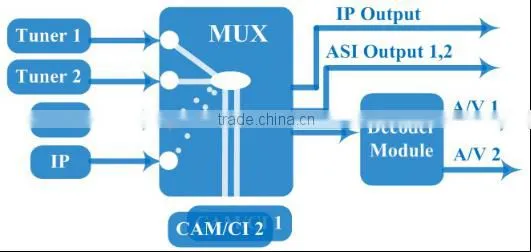

Demodulation + descrambler + decoder modules in one box

2 Tuner inputs (DVB-C, T/T2, S/S2 Optional)

1 ASI & 1 IP (UDP) input for re-mux

One CAM can decrypt multiple programs from Tuners/ASI/IP

Separate 2CVBS(4CVBS Optional) video output

IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out

Support maximum 128 PID mapping per input

Pluggable and changeable demodulator and decoder modules

Support BISS descrambling(Up to 120Mbps )

LCD display, Remote control and Firmware, web NMS management

Updates via web

Best quality and breakthrough price

What is the Specification of our tv receiver with rf tuner?

Input

2 x RF (DVB-C, T/T2, S/S2 optional), F type

1×ASI input for re-mux, BNC interface

1xIP input for re-mux (UDP)

Tuner Section

DVB-C
Standard	J.83A(DVB-C), J.83B, J.83C
Input Frequency	30 MHz~1000 MHz
Constellation	16/32/64/128/256 QAM
DVB-T/T2
Input Frequency	30MHz ~999.999 MHz
Bandwidth	6/7/8 M bandwidth

DVB-S

Input Frequency	950-2150MHz
Symbol rate	2-45Msps
Signal Strength	- 65- -25dBm
Constellation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2
Input Frequency		950-2150MHz
Symbol rate		QPSK 1~45Mbauds; 8PSK 2~30Mbauds
Code rate		1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation		QPSK, 8PSK

Output (2*CVBS optional)

IP Output

1*MPTS & 8*SPTS over UDP, RTP/RTSP.

100Base-T Ethernet interface (unicast / multicast)

2×ASI

BNC interface

Decode Output

Video Interface: 2xCVBS (RCA)

Audio Interface: 2xStereo/4xMono (RCA)

Resolution: PAL 576i, NTSC 480i

Video Decode: MPEG-2, MPEG-4 AVC/H.264(optional)

Audio Decode: MPEG 1 Layer II

Output (4*CVBS optional)

IP Output

1*MPTS & 8*SPTS over UDP, RTP/RTSP.

100Base-T Ethernet interface (unicast / multicast)

2×ASI

BNC interface

Decode Output

Video Interface: 4xCVBS (RCA)

Audio Interface: 4xStereo/8xMono (RCA)

Resolution: PAL 576i, NTSC 480i

Video Decode: MPEG-2, MPEG-4 AVC/H.264

Audio Decode: MPEG 1 Layer II

System

Local interface	LCD + control buttons
Remote management	Web NMS Management
Language	English

General

Power supply	AC 100V~240V
Dimensions	48230044.5mm
Weight	3 kgs
Operation temperature	0~45℃

What is the Applications of our tv receiver with rf tuner?

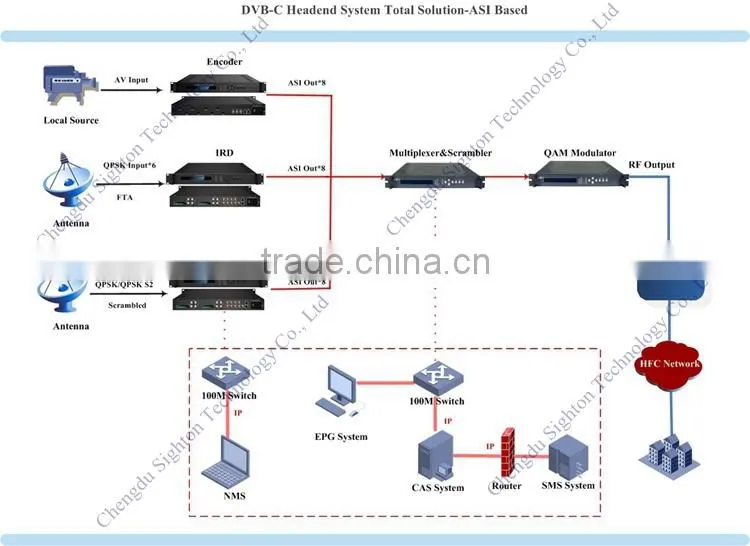

What is the System Applications of our tv receiver with rf tuner?

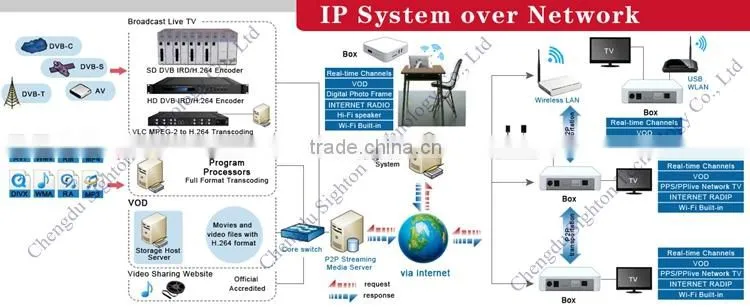

Except that 2 in 1 dvb-c,t/t2,s/s2 IRD with cam can be widely used for IPTV and DVB-C system, it is also usually used for DVB-T/T2,DVB-S2 System.If you need know more, pls contact us to fetch.

Network Management System

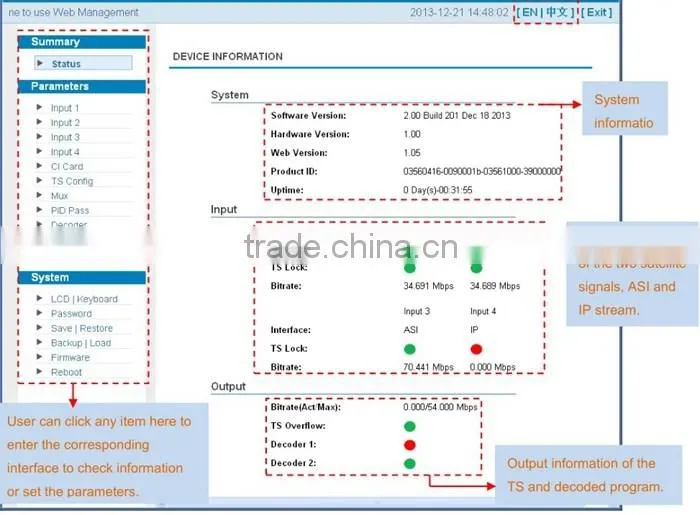

Device Information

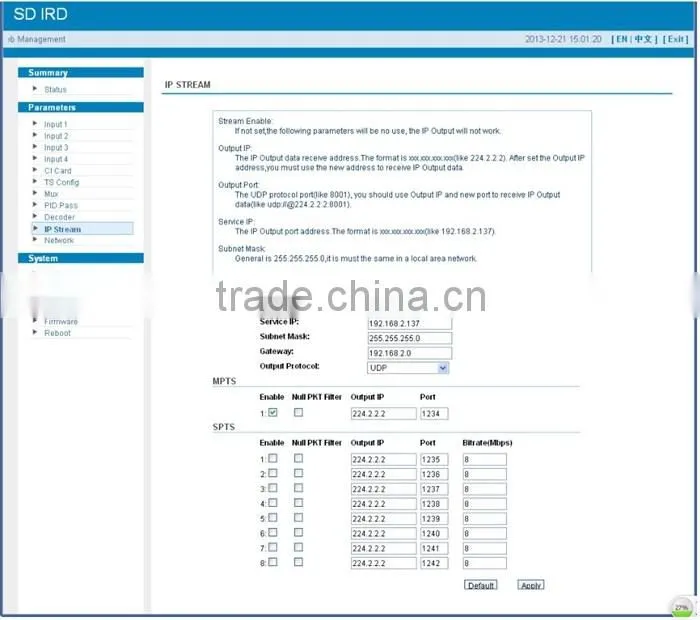

IP Stream Output
