professional 4 in 1 dvb-t/t2 dvb-s/s2 dvb-c cccam ird digital satellite receiver china

Name: professional 4 in 1 dvb-t/t2 dvb-s/s2 dvb-c cccam ird digital satellite receiver china
Brand: Sighton
Price: USD $1 - 1,800 / Set

FOB Price

USD $1 - $1,800 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Chengdu Shenzhen Shanghai Ningbo
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Sichuan, China

Brand Name:

Sighton

Model Number:

STSS-9948

Product Description

professional 4 in 1 dvb-t/t2 dvb-s/s2 dvb-c cccam ird digital satellite receiver china

Product Description

Outline

The IRD is new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.

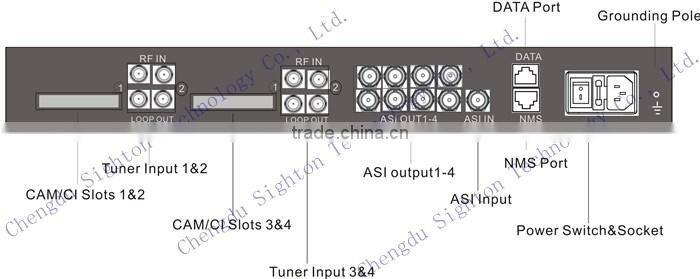

It is a 1-U case which supports 4 tuner inputs(2tuner inputs), 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

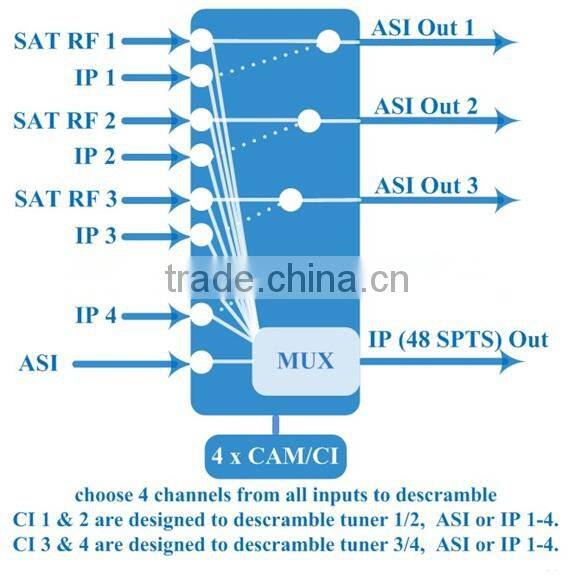

To meet customers’ various requirements, it is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.

Except for 4 in 1 dvb-c,t/t2,s/s2 IRD with cam, there are fta receiver, digital to analog video decoder, ip tv decoder, dolby digital 5.1 decoder with biss,etc.Pls contact us to fetch more.

What is the Features of our digital satellite receiver china?

* 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)

* 1 ASI & 4 IP (UDP) input

* One CAM can decrypt multiple programs from Tuners/ASI/IP

* IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;

* 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)

* Support maximum 128 PID mapping per input

* LCD display, Remote control and Firmware, web NMS management

* Updates via web

* Best quality and breakthrough price

What is the Specification of our digital satellite receiver china?

Input

4x RF (DVB-C, T/T2, S/S2 optional), F type

1×ASI input for de-mux, BNC interface

4xIP input for de-mux (UDP)

Tuner Section

DVB-C
Standard	J.83A(DVB-C), J.83B, J.83C
Input Frequency	47 MHz~860 MHz
Constellation	16/32/64/128/256 QAM
DVB-T/T2
Input Frequency	44-1002 MHz
Bandwidth	6M, 7M, 8M

DVB-S

Input Frequency	950-2150MHz
Symbol rate	2-45Msps
Signal Strength	- 65- -25dBm
Constellation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2
Input Frequency		950-2150MHz
Symbol rate		QPSK 1~45Mbauds; 8PSK 2~30Mbauds
Code rate		1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation		QPSK, 8PSK

Output

48*SPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface (unicast/multicast)

4*MPTS over UDP, RTP/RTSP.

1000M Base-T Ethernet interface, for RF in passthrough (one-to-one)

ASI

4 groups BNC interface, for RF or IP in passthrough (one-to-one)

System

Local interface	LCD + control buttons
Remote management	Web NMS Management
Language	English

General

Power supply	AC 100V~240V
Dimensions	48240044.5mm
Weight	3 kgs
Operation temperature	0~45℃

What is the Applications of our digital satellite receiver china?

What is the System Applications of our digital satellite receiver china?

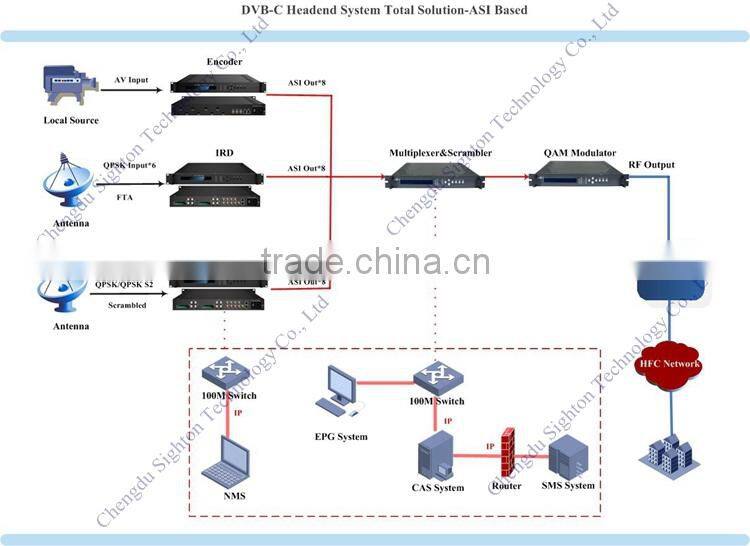

Except that 4 in 1 dvb-c,t/t2,s/s2 IRD with cam can be widely used for IPTV and DVB-C system, it is also usually used for DVB-T/T2,DVB-S2 System.If you need know more, pls contact us to fetch.

Network Management System

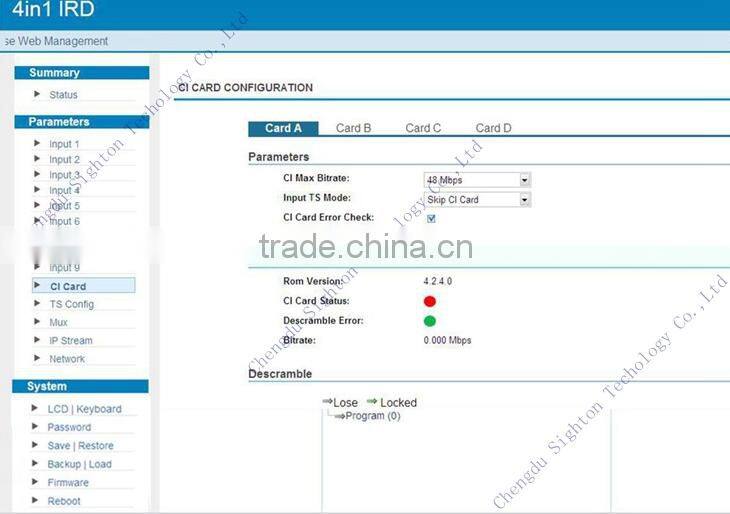

CI Card Configuration

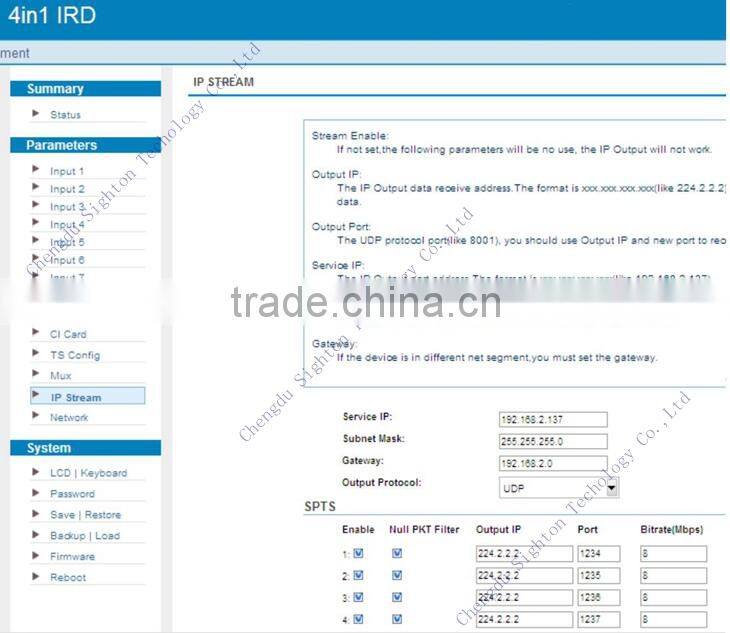

IP Stream Output

More Similar Products And Click It:




click for more:http://sighton.en.china.cn

Packaging & Shipping

Trade,Packing & Shipping

Trade Process

Shipping 1.Door-to-Door; DHL/FedEx/UPS/TNT for samples, which one is convenient for you? 2.By Air or by Sea for batch goods;Airport/Port receiving; 3.Delivery Time: 5-7 days for samples; 5-25 days for batch goods.

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 440mm×410mm×44.5mm

Company Information

Company View

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry.

Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

Our Certifications

FAQ

FAQ
Q1:Why buy the models from you?
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty.

Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world.

Q3:For the first time to import, how can I believe trust you ? A3: We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's.

Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us.
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer.
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale.
Q7:As end-users, what you can do for us? A7:Terrific after-sales service: 24 hours around the clock & 12 months warranty life-long technical support for the product.
