Home > Products > Modulator > catv digital headend 2Tuner dvb-s dvb-s2 to dvb-t satellite tv modulator
catv digital headend 2Tuner dvb-s dvb-s2 to dvb-t satellite tv modulator
- 100 Set / Sets per Month
- Chengdu Shenzhen Shanghai Ningbo
- T/T Credit Card
You May Like
-
tv headend modulator dvb-s2/s to dvb-c/t/isdb-t/atsc digital rf modulator
-
2 tuner dvb-s/s2 to dvb-t/c/isdb-t/atsc satellite video modulator
-
dvb-s/s2 dvb s/s2 to dvb-c/t/isdb-t/atsc rf signal converter
-
catv digital headend 2Tuner input dvb-s dvb-s2 to rf modulator
-
digital tv headend DVB-S2/S to isdb-t/atsc-t modulator rf for small hotel
-
digital tv headend dvb-s dvb-s2 modulator tuner to rf modulator
Product Details
| Place of Origin | Sichuan, China | Brand Name | Sighton | |
| Model Number | STHM-3082 |
Product Description
catv digital headend 2Tuner dvb-s dvb-s2 to dvb-t satellite tv modulator
Outline | ||
STHM-3082 supports two QPSK-S/S2 and 1 ASI signals input. After multiplexer process, it will give DVB-C/DVB-T/ATSC-T/ISDB-T as well as IP and ASI signal output. This device also has a mixer function embedded. It supports an extra RF input signal input then mixed with its only RF signal and output together.The signals source is from satellite receivers and its output signal is to be received by TV, STB. The device can be used in public place such as metro, market hall, theatre, hotels, resorts, etc for advertising. It also can be used for monitoring, training and educating in company, schools, campuses, hospital… besides that it’s a good choice for bars to offer HD sports channels, for VIP entertainment channels, and more.
| ||
|---|---|---|
Except for 2dvb-s/s2 to RF modulator, there are 8 sdi/hdmi to rf modulator, 4/8cvbs/YPbPr modulator,4dvb-s/s2 to dvb-t modulator with CAM,mpeg2 HD/MPEG4 Encoder Modulator... etc | ||
What is the Features of our satellite tv modulator? | ||
2 tuner(DVB-S/S2) input and 1 ASI input DVB-C/DVB-T/ATSC-T/ISDB-T RF out LCN support (Logical Channel Number) Excellent modulation quality MER≥42dB RF Frequency range 30Mhz~960Mhz LCD display, Remote control and firmware Updates via web/Ethernet Support IP&ASI output Lowest cost per channel --- breakthrough price | ||
What is the Specification of our satellite tv modulator? | ||
| ||
What is the Principle Chart of our satellite tv modulator? | ||
| ||
Web Management Operation | ||
|
| More Similar products And Click It |
| |
| |
| |
| Click For More:http://sighton.en.china.cn | |
Trade,Packing & Shipping | |
|---|---|
Trade Process
| |
Payment Terms
1.MOQ:1pcs
|
Company View |
|---|
Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...
|
|
Production Process |
|

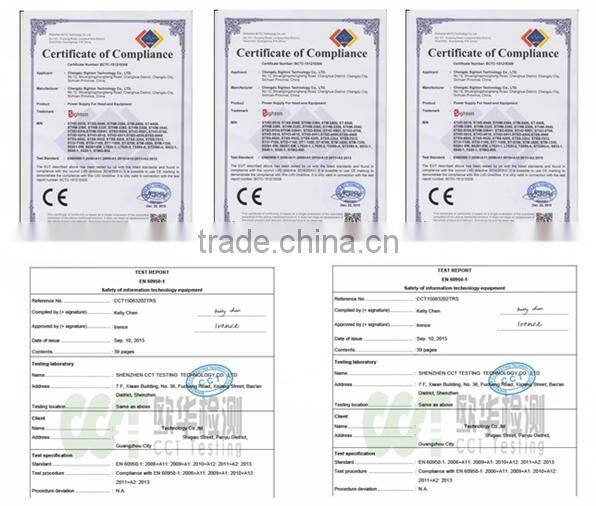

Our Certifications |
|
FAQ |
|---|
Q1:Why buy the models from you? |
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty. |
|
Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world. |
|
Q3:For the first time to import, how can I believe trust you ? A3:We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's. |
Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us. |
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer. |
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale. |
Q7:As end-users, what you can do for us? |
How to Contact Us? |
