Home > Products > Modulator > Dvb-s2/s Modulator Convert the ASI And IP Signals Into RF Output.

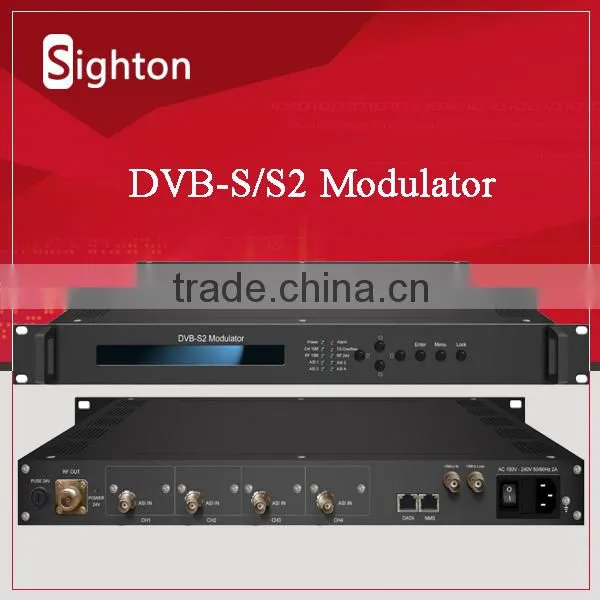

Dvb-s2/s Modulator Convert the ASI And IP Signals Into RF Output.

FOB Price

US$ 1 - 3,000 / Set

1 Set(Min. Order)

Port Chengdu Shenzhen Shanghai Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Sichuan, China		Brand Name	Sighton
Model Number	STM-1330

Product Description

dvb-s2/s modulator convert the ASI and IP signals into RF output.

Product Description

Outline

STM-1330 is a high-performance modulator developed according to DVB-S2 (EN302307) standard which is the standard of second generation of the European broadband satellite telecommunication. It is to convert the input ASI and IP signals alternatively into digital DVB-S/S2 RF output.

BISS scrambling mode is inserted to this DVB-S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control with NMS software and LCD in the front panel.

With its high cost-effective design, DVB-S2 modulator is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applications.

Except for dvb-s/s2 modulator, there are single dvb-c qam modulator,4 in 1 qam modulator,

tuner(dvb-s2/t2)to qam modulator,dvb-t/t2 modulator,isdb-t modulator...etc,Pls contact us to fetch more.

What is the Features of our dvb s2 modulator?

*Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard

* 4 ASI inputs supporting hot backup (3 for backup)

* Support IP (100M) signal input

* QPSK, 8PSK, 16APSK, 32APSK Constellations

* Constant temperature crystal oscillator, as high as 0.1ppm stability

* Support coupling 10Mhz clock output through RF output port

* Support 24V power output through RF output port

* Support BISS scrambling(UP to 80 Mbps)

* Support local and remote control with SNMP or Web-server NMS

* Support SFN TS (with MIP or IIP) transmission

* Output frequency range: 950~2150MHz, 10KHz stepping

What is the Specification of our dvb s2 modulator?

ASI Input	Supporting both188/204 Byte Packet TS Input
	4 ASI Inputs, Supporting Hot Backup
	Connector: BNC, Impedance 75Ω
IP Input	1*IP Input (Rj45, 100M TS Over UDP)
SFN output	MIP or IIP
10MHz Input	1*10Mhz Input (BNC Interface)
RF Output	RF Range: 950 ~ 2150 MHz, 10KHz stepping
	Output Level Attenuation:-10.0 dBm~-41.5 dBm,0.5dB Stepping
	MER≥36dB
	Connector: N type, impedance 50Ω
Channel Coding and Modulation	Standard	DVB-S	DVB-S2
	Outer coding	RS Coding	BCH Coding
	Inner coding	Convolution	LDPC Coding
	Constellation	QPSK	QPSK,8PSK, 16APSK,32APSK
	FEC/ Convolution Rate	1/2, 2/3, 3/4, 5/6, 7/8	QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
	Roll-off Factor	0.2, 0.25, 0.35	0.2, 0.25, 0.35
	Symbol Rate	0.5~45Msps	0.5~40Msps (32APSK); 0.5~45 Msps (16APSK/8PSK/QPSK)
	BISS Scramble	Mode 0, mode 1, mode E
System	SNMP/Web-server NMS
	Language: English
	Ethernet software upgrade
	24V power output through RF output port
Miscellaneous	Dimension	482mm×410mm×44mm
	Weight	4.3 KG
	Temperature	0~45℃(operation), -20~80℃ (storage)
	Power	100-240VAC±10%,50Hz-60Hz
	Consumption	25W

What is the Principle Chart of our dvb s2 modulator?

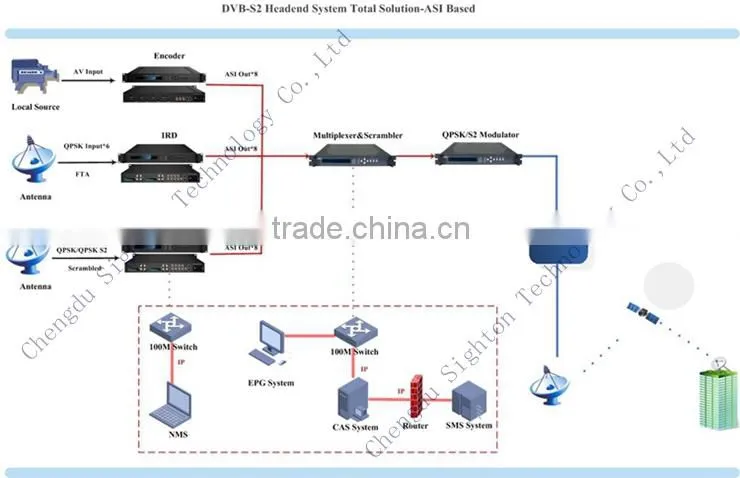

What is the Applications of our dvb s2 modulator?

Network Management Operation

Parameters Setting

Scramble Setting

Packaging & Shipping

Trade,Packing & Shipping

Trade Process

Shipping 1.Door-to-Door; DHL/FedEx/UPS/TNT for samples, which one is convenient for you? 2.By Air or by Sea for batch goods;Airport/Port receiving; 3.Delivery Time: 5-7 days for samples; 5-25 days for batch goods.

Payment Terms

1.MOQ:1pcs

2.Warranty:one year

3.Payment:T/T,Western Union,PayPal;

4.Package Informations:1 pcs per carton with foam, the volume of the carton is 482mm×470mm×140mm

Our Services

Company Information

Company View

Chengdu Sighton Technology Co., LTD. is more than five years manufacturer, specialized in digital TV head-end system.The company is a high-tech enterprise which concentrates on the research, manufacturing, sale and service of DVB products. Sighton is building up both domestic and overseas markets while making a good contribution to the CATV industry. Sighton's products including: Encoder, Encoder modulator, QAM modulator, QPSK modulator, DVB-S2 modulator, DVB-T modulaotr, multiplexer and Satellite Receiver...For the system, we can offer the total solution of DVB-C/T/T2/ from headend to user end with the way of cable, MMDS,especially concentrate on IPTV.And our projects relate to different areas, such as city or village coverage, hotel, hospital, university, casino etc.

Production Process

Our Certifications

FAQ

FAQ
Q1:Why buy the models from you?
A1:1)Highest quality and most reasonable price Strict product every step of the process and one month aging test Low repair rates, less than 0.2%. What’s amazing that the various styles models at reasonable price. 2)Delivery fast 5-7 days for samples; 5-25 days for batch goods 3)Best service Answering emails or solving questions timely. Update information on time Free repaired based on quality problem in 12 months as warranty.

Q2:Can it be shipped to my country? A2:We can ship items 98%countries in the world.

Q3:For the first time to import, how can I believe trust you ? A3: We are Alibaba Trade Assurance gold supplier.If you pay us by Alibaba, Alibaba will keep your money safe, and make sure you receipt high quality goods.The function is the same as Paypal's.

Q4:What shall we do, if received damaged devices? A4:In order to avoid damage, each item is very well packed with foam and carton. If damaged, pls take the photo to us.
Q5: If we don,t know how to use the equipment, what you can help us? A5:We will send you the user manual before the devices arrived. You can operate the devices by control panel of the devices, follow the user manual. Even if you don,t know how to use panel, our technicians will teach you use Network Management System by Team-viewer.
Q6:As an agent, what you can do for us? A6:We can supply OEM, label for you. As our agent, we will give more discount based on your quantity to develop market. If you don,t know more technology, don,t worry about it, we can supply technical support before sale.
Q7:As end-users, what you can do for us? A7:Terrific after-sales service: 24 hours around the clock & 12 months warranty life-long technical support for the product.
