WELCOM TO SG
product specification
| product name | hot sell steel hinge of side hung door or gate |
| model number | 3D1840160FEP |
| door type | suitable for side hung door or gate |
| frame type | suitable for aluminium alloy door |
| hinge(3D1840160,for door) size |
length :160mm diameter of hinge axis :18mm material :3/3.5mm |
hinge accessories(3DBOX-3,for frame) size |
length:159.5mm width:21.5mm thickness:22.7mm |
| Min. door thickness | 40mm |
| Max. load | 160kg/set |
| open angle | 180 degrees |
| 3D adjustable parameter |
horizontal direction :±3mm
vortical direction: ±3mm
direction of press-in:±3mm |
| material |
hinge: carbon steel hinge accessories:carbon steel |
| finish | steel nickel-plated / steel galvanized |

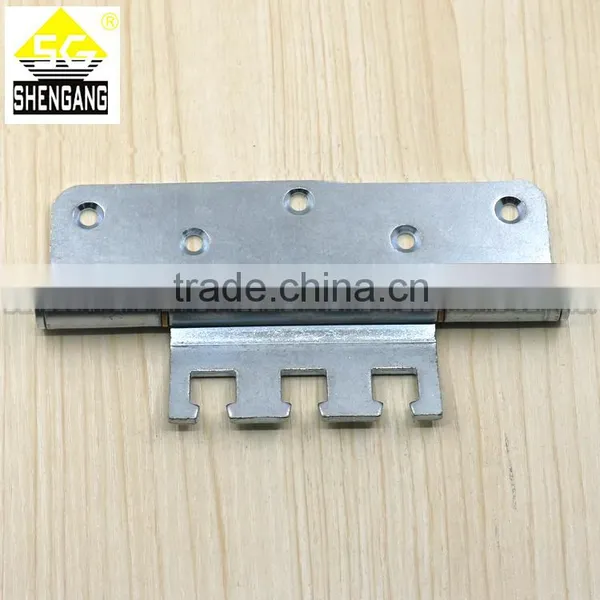

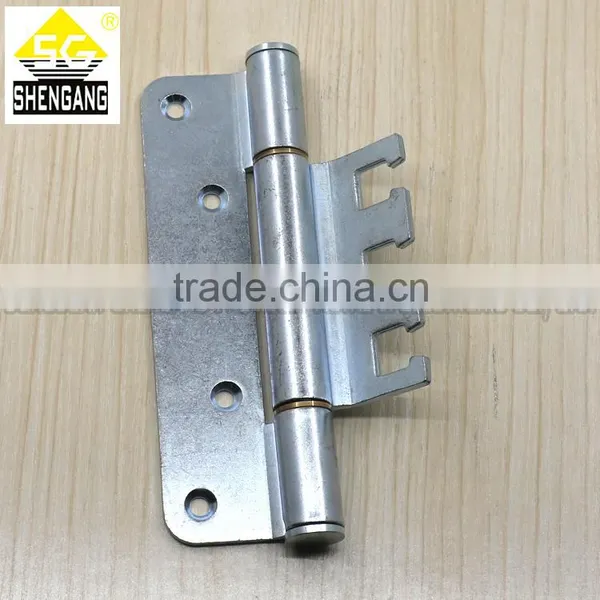

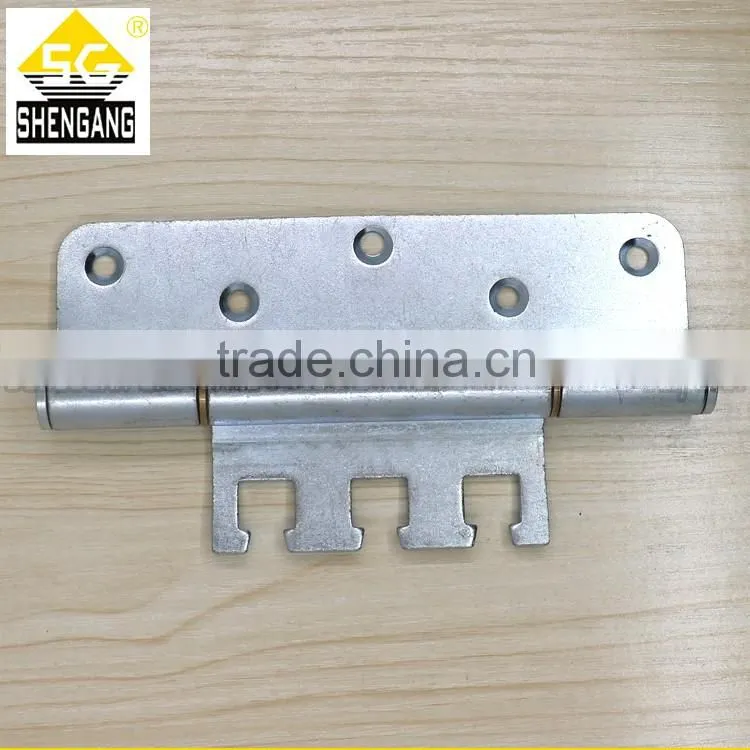

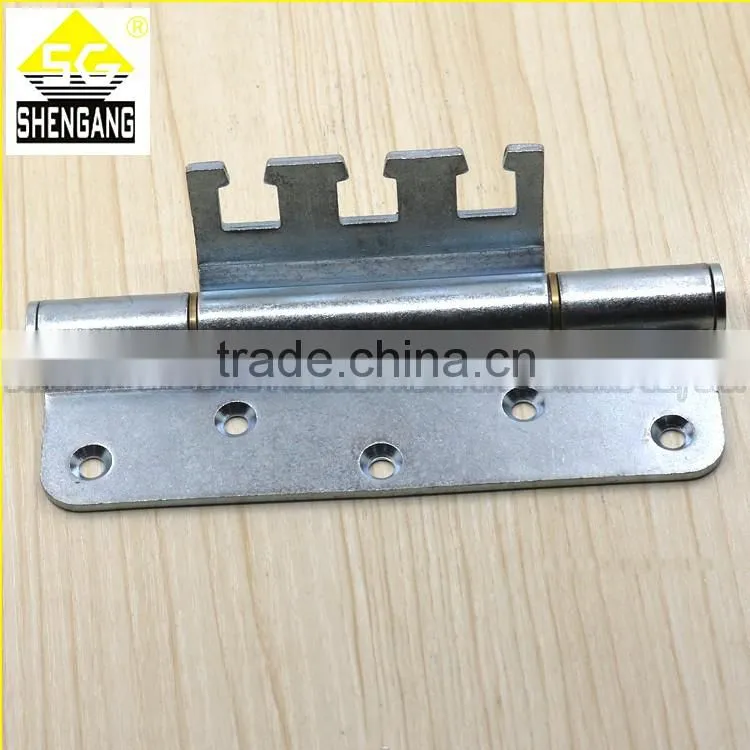

product picture (3D1840160FEP)

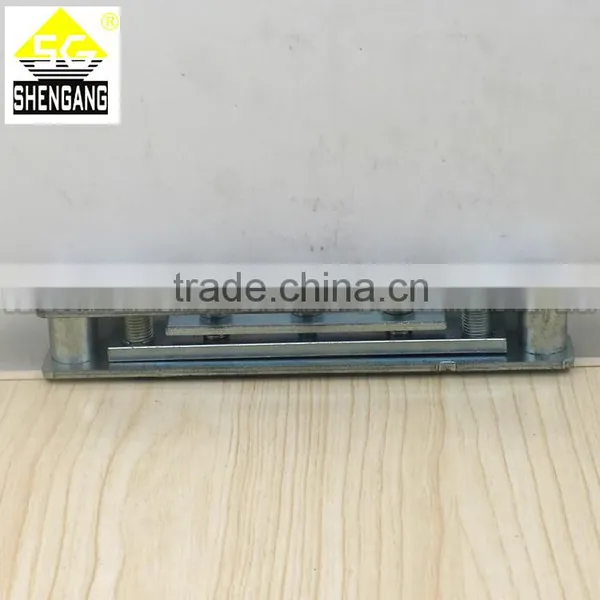

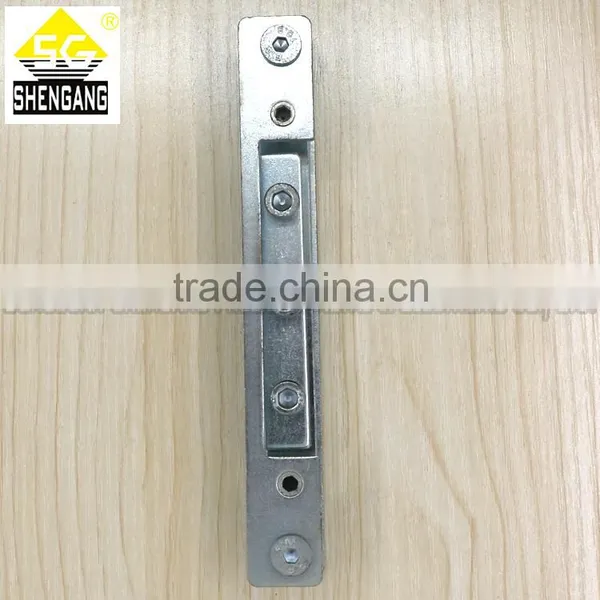

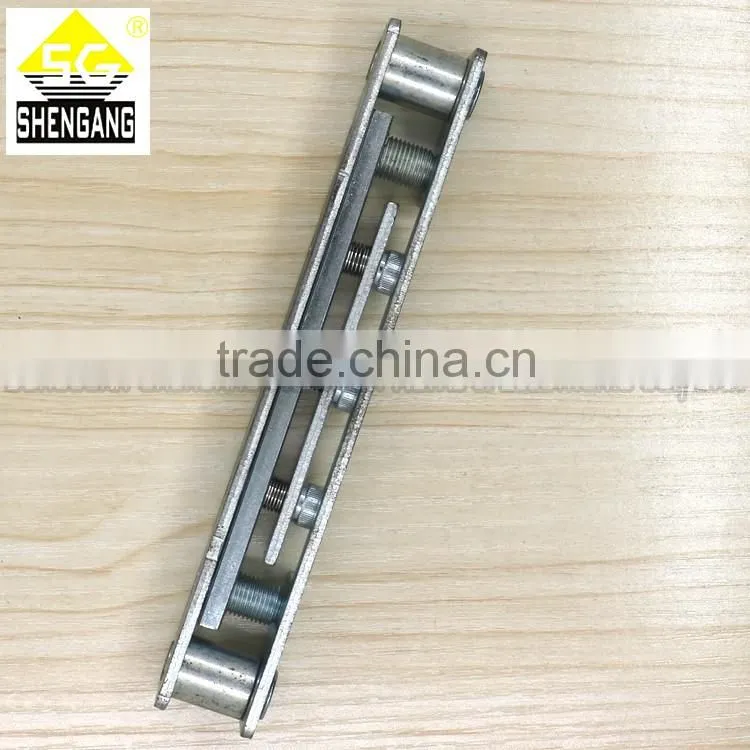

hinge fittings (3DBOX-3)

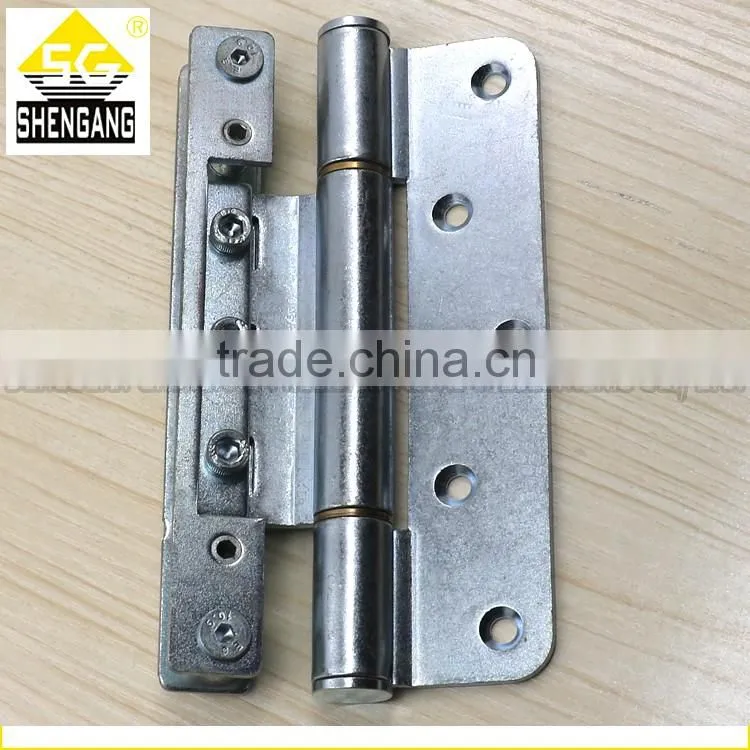

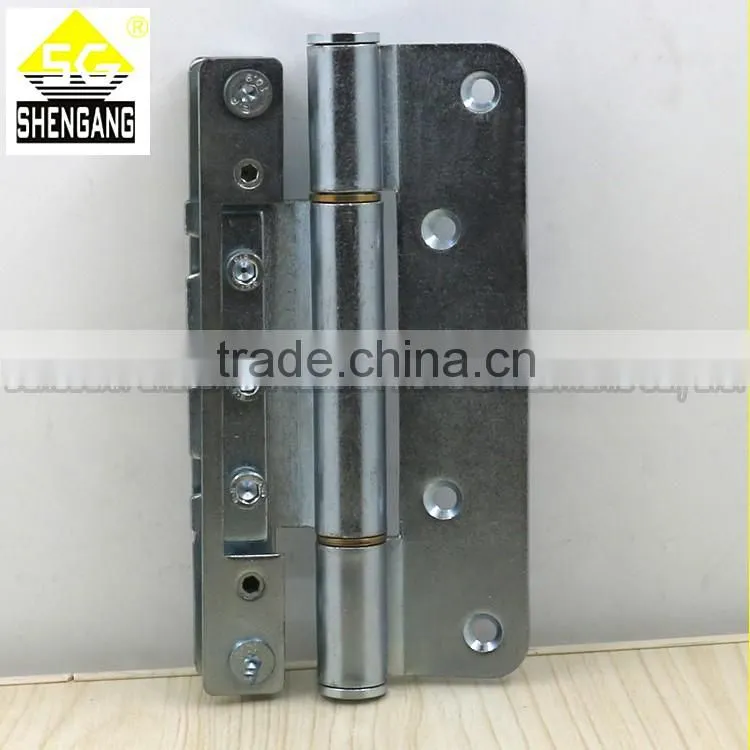

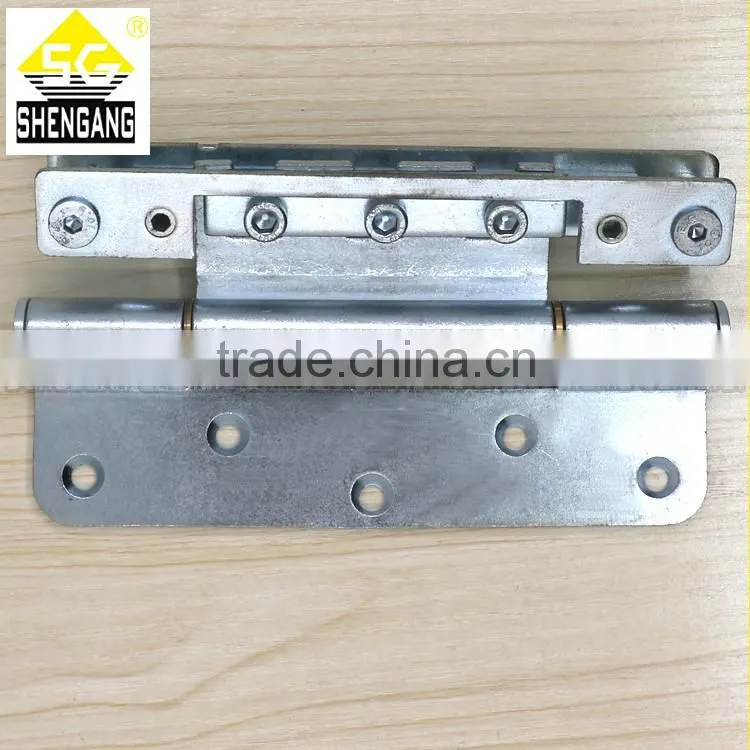

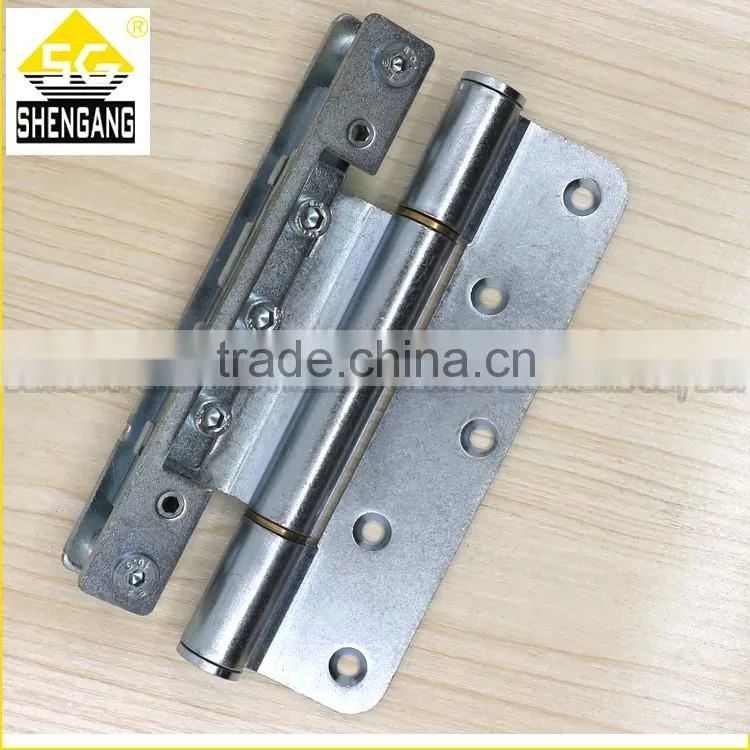

combined type hinges
THE ADVANTAGES OF OUR PRODUCTS
1.180 degrees opening angle
Save a space to maxmize usable floor area.
2.Concealed installation
The perfect concealed installation make the surrounding enviroment more harmoniousand beautiful.
3.Hindden position
Relying on the hinge body bearing prevent
the door leaf droping.
4.3D adjust
Have regulating fuction for left and right ,up and down, front and back.
5. Opening and closing is mute
All sliding parts adop imported nylon wear-resistant meterias.
6.Quality tested by authority
The products have passed the TUV test .
7.Hinges standerdized
We urge the factory to conduct the open operation automaticly to save the cost of processing and installation to the greatest extent.
Why choose us?
1.high quality and reliable product 2.famous brand
3.advanced process technique 4.aceptable price
5.skilled worker 6. first-class service
7.we support OEM production 8.support customization
our company
Please contanct us
company building and certification
production line
Exhibition show
Proffessional assembly
Proffessional logistics
