Home > Products > Germany adjustable hinge > 3d adjustment heavy door butt hinge
3d adjustment heavy door butt hinge
- 10000 Set / Sets per Month
- Shenzhen Yantian Port Guangzhou Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SG | Model Number: | SG-HCFEP&BOX-3 3d adjustment heavy door butt hinge |
Product Description
WELCOME TO SG
Dongguan Shengang Precision Metal &Electronic Co.Ltd
product specification
product name | 3d adjustment heavy door butt hinge |
model number | 3D1840160FEP |
door type | suitable for flat door |
frame type | suitable for aluminium alloy door |
hinge(3D1840160,for door) size | length :160mm diameter of hinge axis :18mm material :3/3.5mm |
hinge accessories(3DBOX-3,for frame) size | length:159.5mm width:21.5mm thickness:22.7mm |
Min. door thickness | 40mm |
Max. load | 160kg/set |
opening angle | 180 degrees |
3D adjustable parameter | horizontal direction :±3mm
vortical direction: ±3mm
direction of press-in:±3mm |
material | hinge: carbon steel hinge accessories:carbon steel |
finish | steel nickel-plated / steel galvanized |

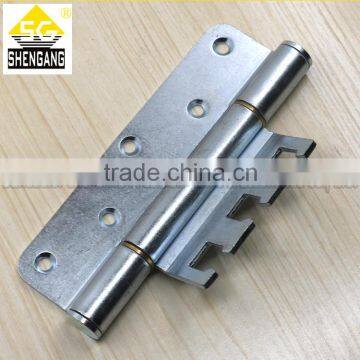

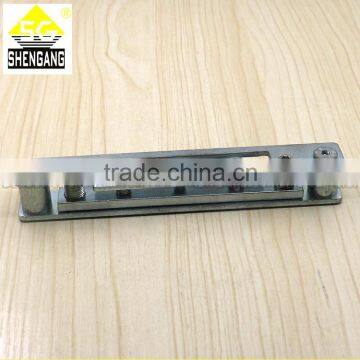

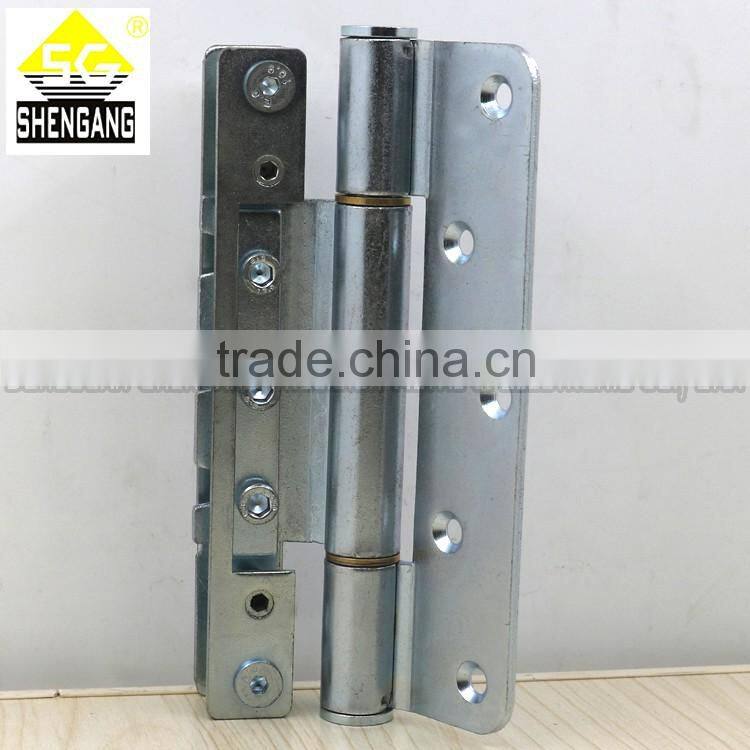

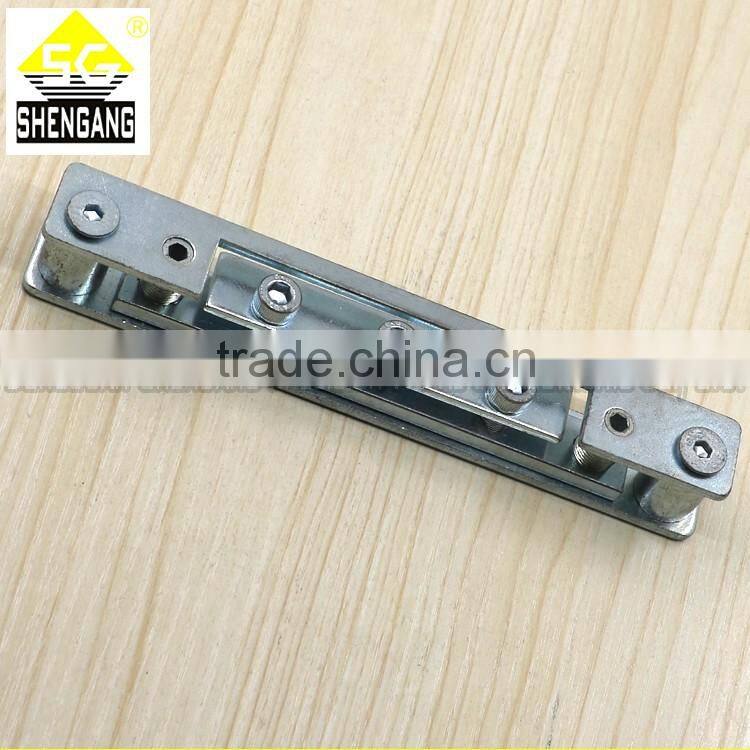

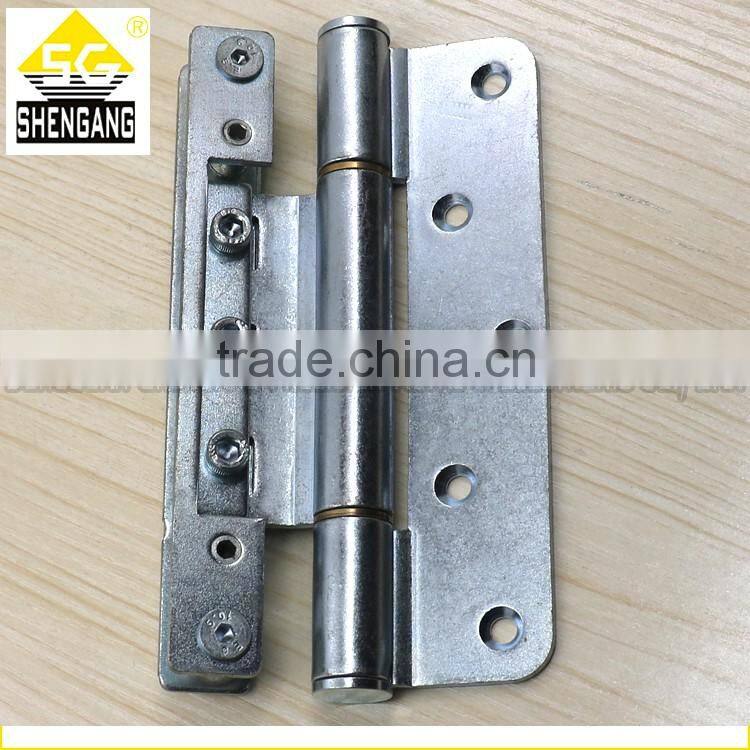

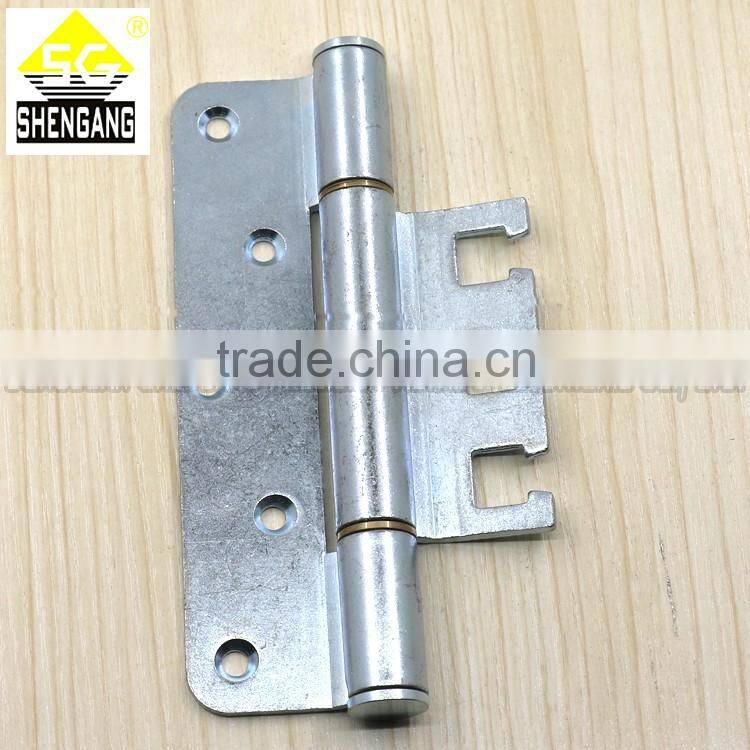

Product Picture
The Advantages Of Our Products
1.180 degrees opening angle
Save a space to maxmize usable floor area.
2.Concealed installation
The perfect concealed installation make the surrounding enviroment more harmoniousand beautiful.
3.Hindden position
Relying on the hinge body bearing to prevent the door leaf droping.
4.3D adjust
Have regulating fuction for left and right ,up and down, front and back .
5. Opening and closing is mute
All sliding parts adop imported nylon wear-resistant meterias.
6.Quality tested by authority
The products have passed the German TUV test.
7.Hinges standerdized
We urge the factory to conduct the open operation automaticly to saving the cost of processing and installation to the greatest extent.
About Us
FAQ
1.How many square meter of factory and dorm room?
Factory is 4000 square metres, dorm room is 1200 square metres.
2.How many employee?
There are totally 75 people, Staff of more than 3 years is 65%.
3.What Shengang Hardware supply?
Shengang Hardware is for short of Dongguan Shengang Precision Metal & Electronic Co., Ltd. , which is specialized in door and window hardware design, manufacture and sale. "3d adjustable hinge" as a synonym for Shengang Hardware.
4.How about the company’s history?
Shengang Hardware called dongguan hengfeng precision mould factory before 2007, we manufactured precision mould, mould part and jig. Mainly matched with big electronics and mould factory. At 2007, we ware lucky to worked with a Japanese furniture company in door hardware. Since then, we had developed 8 series(totally 100 items) products from a single business.
5.How many department in Shengang?
We have production department, administrative department, QM(quality management), sales department, engineering department and mould department.
Production department includes stamping, die casting, machining, grinding and polishing processing, secondary drilling tapping processing and assembly processing.
Administrative department includes human resouce, logistic division, accounting department, purchasing department, production management.
Quality management includes material inspection,outgoing inspection, assembly inspection, finished product sampling.
Sales department includes domestic business and exporting business.
Engineering department includes product design, mould design, product test assessment, processing flow control, Instructions book design and mould processing.
Mould department includes the processing of die casting mould, plastic mould, stamping mould.
6.Does any guarantee of the raw material?
Yes, raw material supplier must offer us all the test report, otherwise, the material will not be acceptable. Steel offered from Baosteel, stainless steel offer from lisco, zinc alloy from huatong. Reclaimed materials and non standard material won’t be used in Shengang Hardware. Good quality based on good material. This is our company rule.
