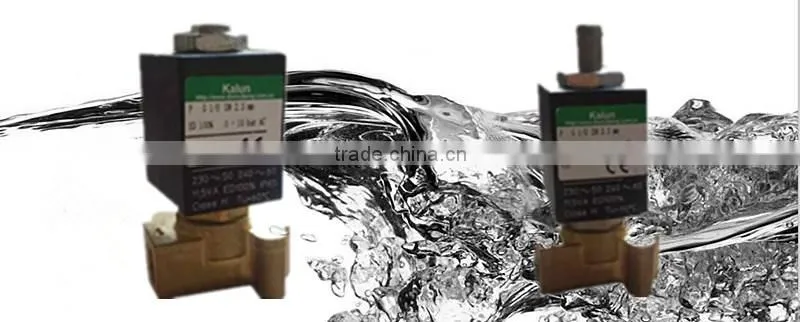

KL-F3 2/3 way electric Solenoid valve for coffee machines and coffee makers,
mini solenoid valve, water solenoid valve, 220V-240V solenoid valve

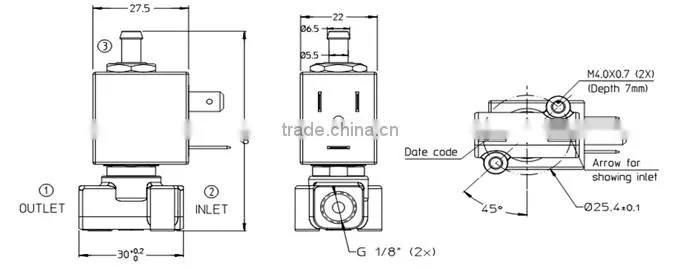

| Specification | |
| P/N | KL-F3 electric solenoid valve |
| Function | NC-normally closed |
| Oriffice (mm) | 1.2 2.0 2.3 |
| Rating voltage | 24V 110V 120V 220V 230V 240V |
| Inlet & Outlet | G 1/8' |
| Ambient temperature | -10℃ ~ +60℃ |
| Fluid temperature | +130°C(FKM-oil,water,steam) |
| Max pressure | 40 bar |
| Max differential working pressure | 8-15 bar |
| KV fluid |
0.7L/min ( Φ1.2mm), 1.8L/min( Φ 2.0mm) 2.3L/min( Φ 2.3mm) |
BAOKEZHEN was established and started to produce switches since 1987, with 18 years manufacturing experience, we have successfully extended our switch series, such as micro switch series, single pole rocker switch series, double pole rocker switch series, push button switch series, rotarry switch series, slide switch / toggle switch series, keyboard switch / piano switch series, and so on... Meanwhile, we also extended some new industries range, such as fluid control components,solenoid pumps, solenoid valve, PCB controller for appliances care. So far BAOKEZHEN yearly products capacity has been up to 100million pcs.
BAOKEZHEN has the 10 years experience in export and import, so the shipment by express courier / by air / by sea / truck or FCL / LCL can be easily treated.
