On Sale Rutile Type Aws E7018 Welding Electrode Welding Electrode Aws E6013

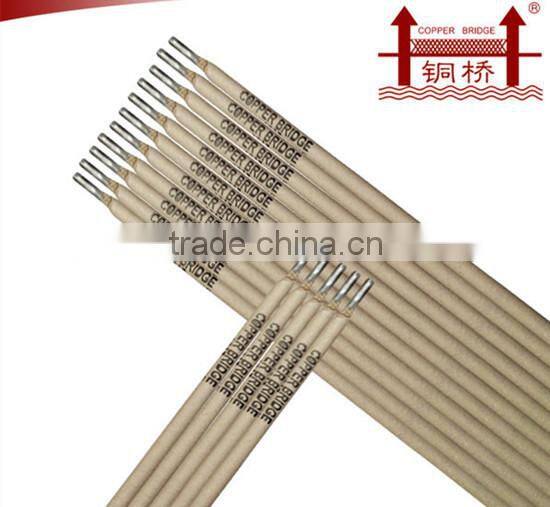

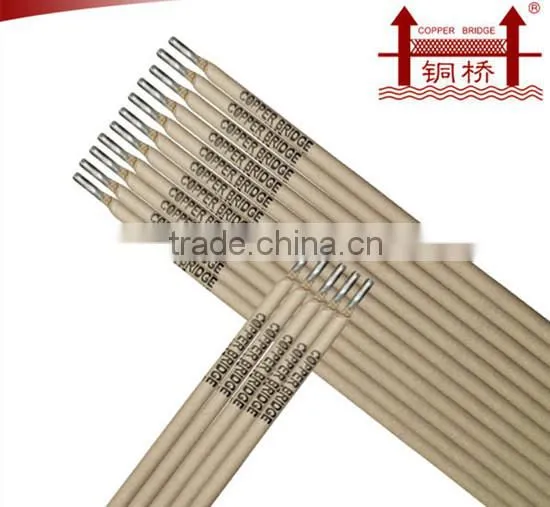

On Sale Rutile Type Aws E7018 Welding Electrode Welding Electrode Aws E6013 photo-1
US$ 500 - 650 MOQ: 5 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Copper Bridge
Model Number:
AWS E6013
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Copper Bridge
Model Number AWS E6013
Material Steel Alloy
Length 300mm,350mm,400mm,450mm
Operating Current 60-90, 90-120, 120-150
Welding Current AC/DC
Operating Temperature common
Diameter 2.5mm,3.2mm,4.0mm
Application low carbon steel



FEATURES:

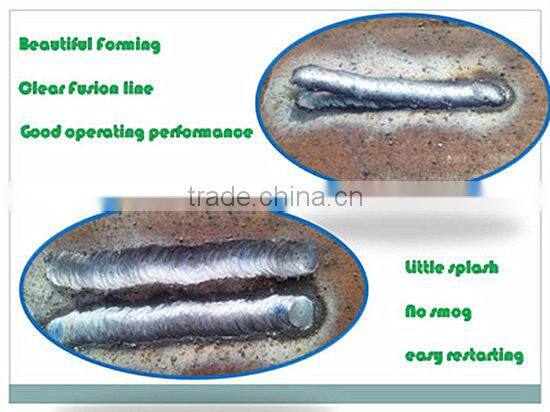

 AWS E6013 welding electrodes  is carbon steel welding electrode covered with a high titania potassium type coating. Both AC and DC can be applied, and it is applicable for all-position welding, including vertical-down welding. It shows a very good welding performance with small spatters, easy restrike arc and very good wled shape.



APPLICATIONS:

AWS E6013 welding electrodes suitable for welding low carbon steel structures and low carbon galvanized plate especially applicable for vertical-down welding and intermittent welding



PACKAGE:

AWS E6013 welding electrodes



Size: 2.5MM X 300MM

(Packing : 2.5kg/inner boxes  8 boxes/cartons=20kg)

Size: 3.2MM X 350MM

(Packing: 5.0kg/inner boxes  4boxes/cartons=20kg)

Size: 4.0MM X 400MM

(Packing: 5.0kg/inner boxes  4boxes/cartons=20kg)





Product Information & Terms of Business

Brand

COPPER BRIDGE ,OEM accepted

Type

AWS E6013 / E7018 / E6011 welding electrodes

Coated

Rutile (25%-30%)

Wire

H08A steel

Diameter

2.0mm/2.5mm/3.2mm/4.0mm/5.0mm

Length

300mm/350mm/400mm

Packing

Box+ Carton ,  OEM accepted

Certification

CE , CCS , ISO9001 , BV , TUV , SONCAP

Current

AC / DC

Application

Low carbon steel

MOQ

5TON

Payment Term

T/T(30% as deposit, balance against the copy of B/L.), L/C

Port of Loading

TIANJIN port

Delivery time

within 20 working days after confirm the order and the deposit



Chemical composition of deposition metal(%)



C

Mn

Si

S

P

0.09

0.43

0.18

0.028

0.033

Mechanical properties of deposition metal

Item

Rm

(Mpa)

Rel

(Mpa))

A(%)

Akv(J)

0°C

number

440-570

355

22

47

Current

 (mm)

2.5

3.2

4.0

5.0

 (A)

50-90

80-130

150-200

180-240


On sale rutile type aws e7018 welding electrode welding electrode aws e6013
On sale rutile type aws e7018 welding electrode welding electrode aws e6013
On sale rutile type aws e7018 welding electrode welding electrode aws e6013
On sale rutile type aws e7018 welding electrode welding electrode aws e6013
On sale rutile type aws e7018 welding electrode welding electrode aws e6013
On sale rutile type aws e7018 welding electrode welding electrode aws e6013

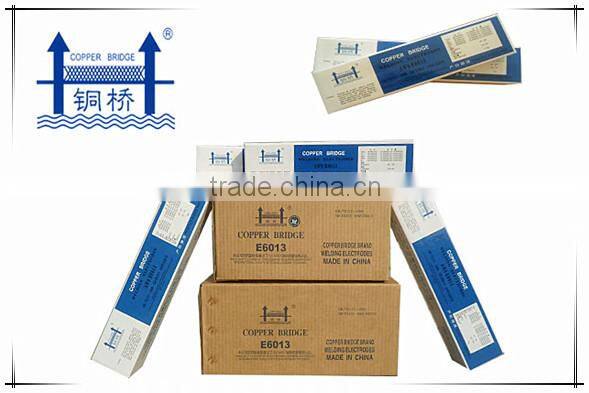

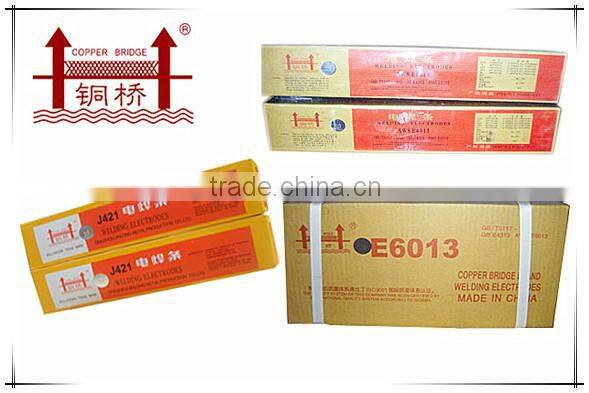

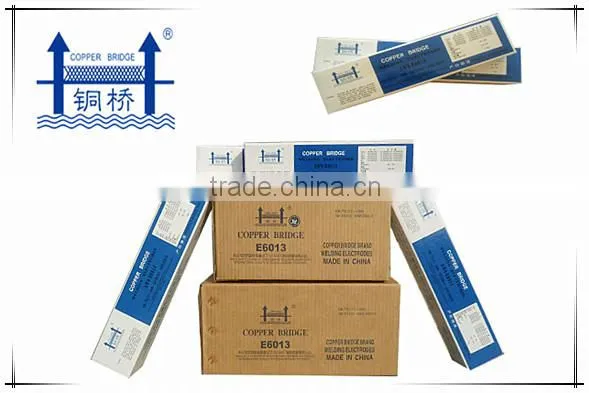

 Packing
welding electrodes

SIZE(MM)

WIGHT

INNER PACKING(MM)

OUTER PACKING(MM)

2.5×300

2.5kg/box 8boxes/carton=20kg

310*75*60

320*175*130

2.5×350

5kg/box  4boxes/carton=20kg

350*75*60

370*175*130

3.2×350

5kg/box  4boxes/carton=20kg

350*75*60

370*175*130

4.0×400

5kg/box  4boxes/carton=20kg

410*80*53

420*175*120

5.0×400

5kg/box  4boxes/carton=20kg

410*80*53

420*175*120

Inner boxes----- shrink-wrapped cardboard box

Outer box-----carton box, two pack

Pallet------- 2T/Pallet

Container------27ton ,1350cartons. (50cartons/ton)





On sale rutile type aws e7018 welding electrode welding electrode aws e6013



On sale rutile type aws e7018 welding electrode welding electrode aws e6013

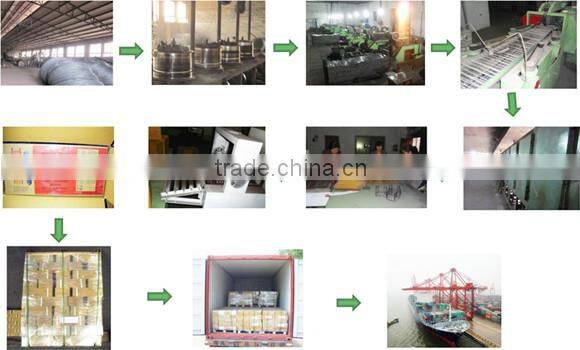

Production process

On sale rutile type aws e7018 welding electrode welding electrode aws e6013



Certification

On sale rutile type aws e7018 welding electrode welding electrode aws e6013

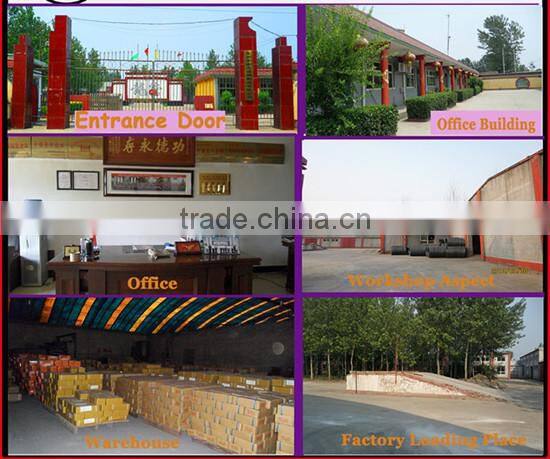

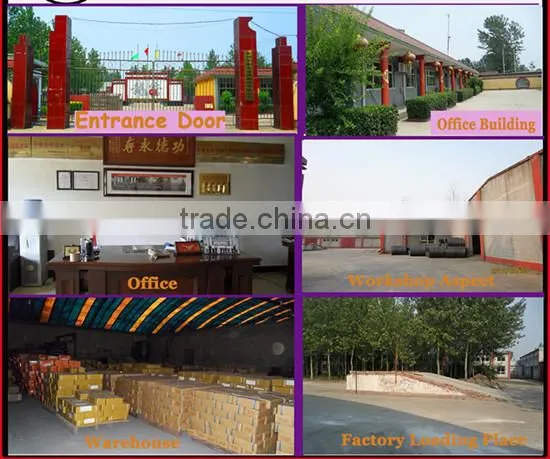

Office & Factory

On sale rutile type aws e7018 welding electrode welding electrode aws e6013



Canton fair

On sale rutile type aws e7018 welding electrode welding electrode aws e6013

On sale rutile type aws e7018 welding electrode welding electrode aws e6013

As a professional welding electrode factory in China, our main products are series of welding electrodes and welding wires. Additionally, we can offer our customers some metal products, such as pvc coated wire, celling system products,nails and pipes.

We have two our own brandsCopper Bridge”“Forever.

"QUALITY FIRST, CUSTOMERS FIRST" is our service tenet

"HONESTY,PRAGMATIC,INNOVATION" is our firmly seeking business ideas.

Give us a chance we will offer you a surprise!
