200 scans per second-be improve mini scanner oem

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Type	Barcode Scanner
Scan Element Type	Other, Manuel&Auto Sense scaning	Colour Depth	32 Bit
Interface Type	USB, Other, USB, RS232,KB	Max Paper Size	N/a
Optical Resolution	3.3mil(32 bit)	Scan Speed	200 times/sec

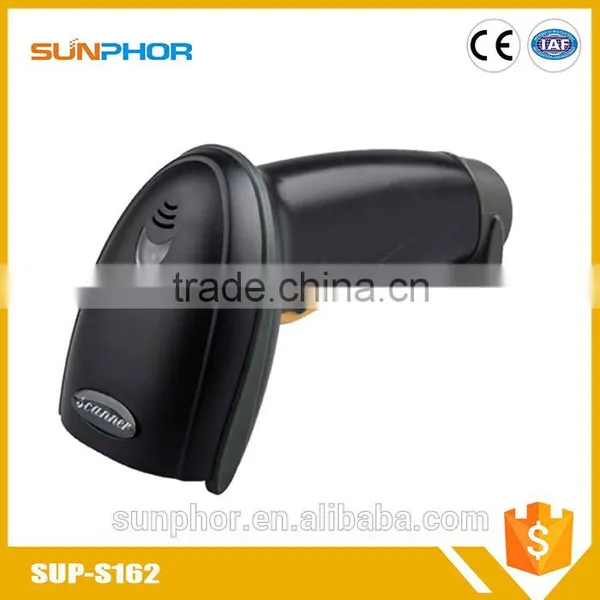

Brand Name	SUNPHOR	Model Number	SUP-S162
Place of Origin	Guangdong, China

Product Description

200 scans per second-be improve mini scanner oem

Product Description

Physical Characteristics
Dimensions	16.5 cm* 6.3 cm* 8.7cm
Net weight	129g
Material	ABS+PC
Voltage	5 V +/- 10%
Current	110mA , idle 10mA
Color	white, gray, black
Performance Characteristics
Scanner type	bi-directional
Light source	650nm Visible laser diode

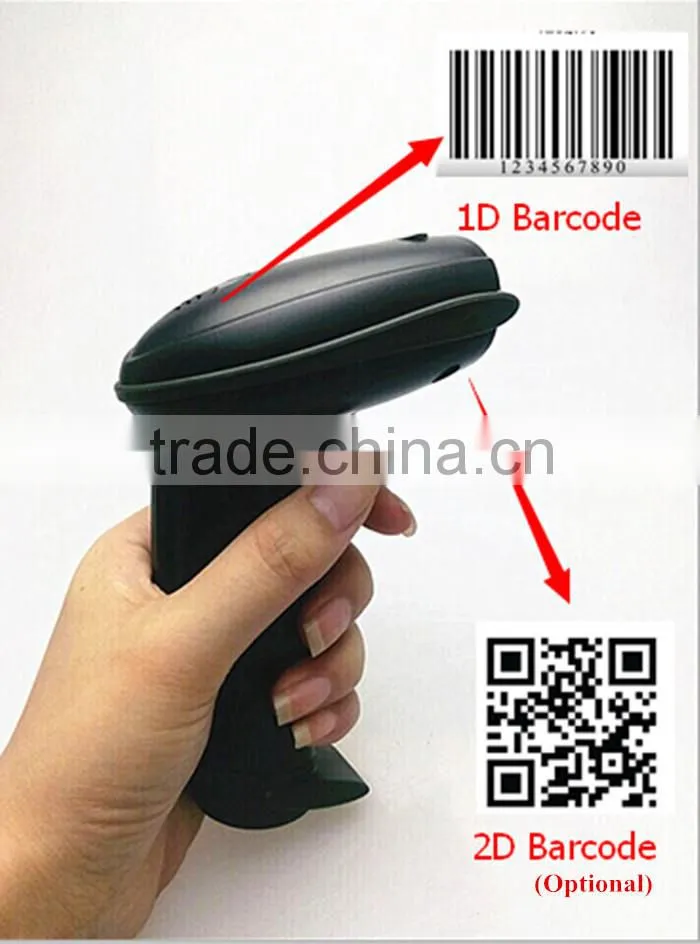

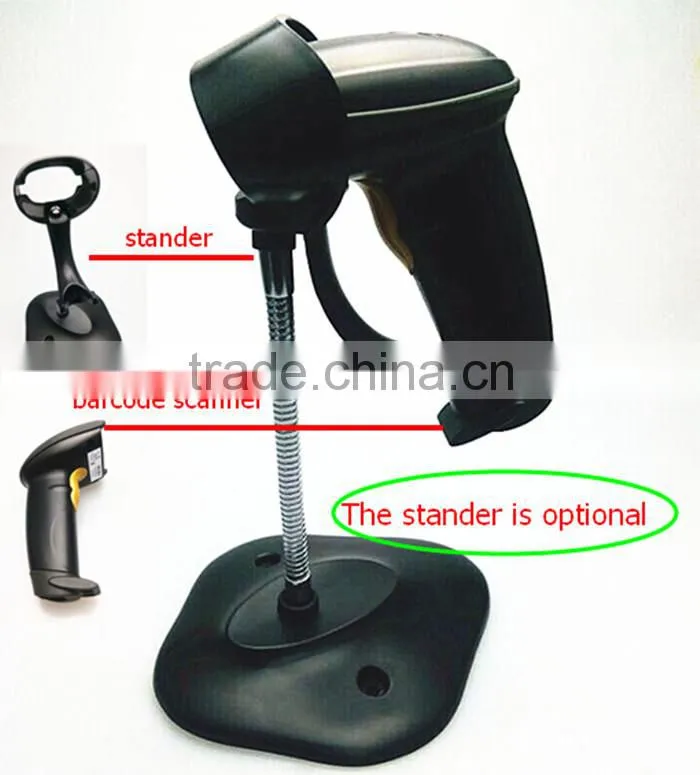

Optional	2D, bluetooth, stand
Scanning Rate	200 scans per second-be improve
Scanning distance	2.5mm-600mm
Scanning scope	18cm
Print contrast	25% minimum reflective difference
Roll(tilt)	+/- 30degrees
Pitch	+/- 45 degrees
Skew(yaw)	+/- 60 degrees
DecodeCapability	UPC/EAN,UPC/EANwithsupplementals
	Code128,UCC/EAN128,Code39Code39FullASCII,
	Code128,UCC/EAN128,Code39Code39FullASCII,
	Code128FullASCII,Codabar,Interleaved2of5,Code93,
	MSI,Code11,ISBN,ISSN,china post code, etc
Bit error rate	1/20million-be improve
Resolution	3.3mil(32 bit)
Tip	buzzer and led
Scanning mode	Press button, Automatic continuous scan Auto-induction
Working times of button	one million times
Working hours of laser	10000hours

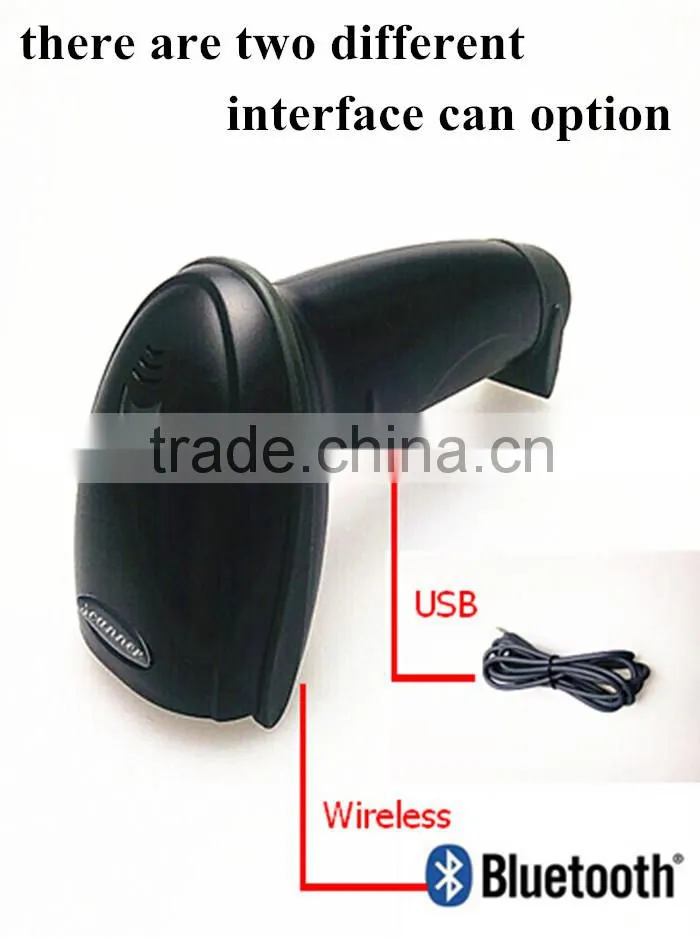

Interfaces supported	RS232,keyboard wedge, USB
Cable length	2M
User Environment
Working temperature	0°C-45°C/32°F-104°F
Storage temperature	-400°C-60°C/-40°F-140°F
Relative humidity	5%-95%(Non-condensing)
Anti-shock design	withstand 1.5M drops
Ambient light immunity	immune to direct exposure of normal office and factory lighting conditions, As well as direct exposure to sunlight.
Regulatory
Electrostatic discharge	certified to ±15KV air discharge and ±8KV of contact discharge
EMI/RFI	FCC Part 15 Class B,European Union EMC Directive,Taiwan EMC,CE
Laser safety	CDRH Class II,IEC Class 2
Environmental protection	certified toRoHS directive 2002/95/EEC

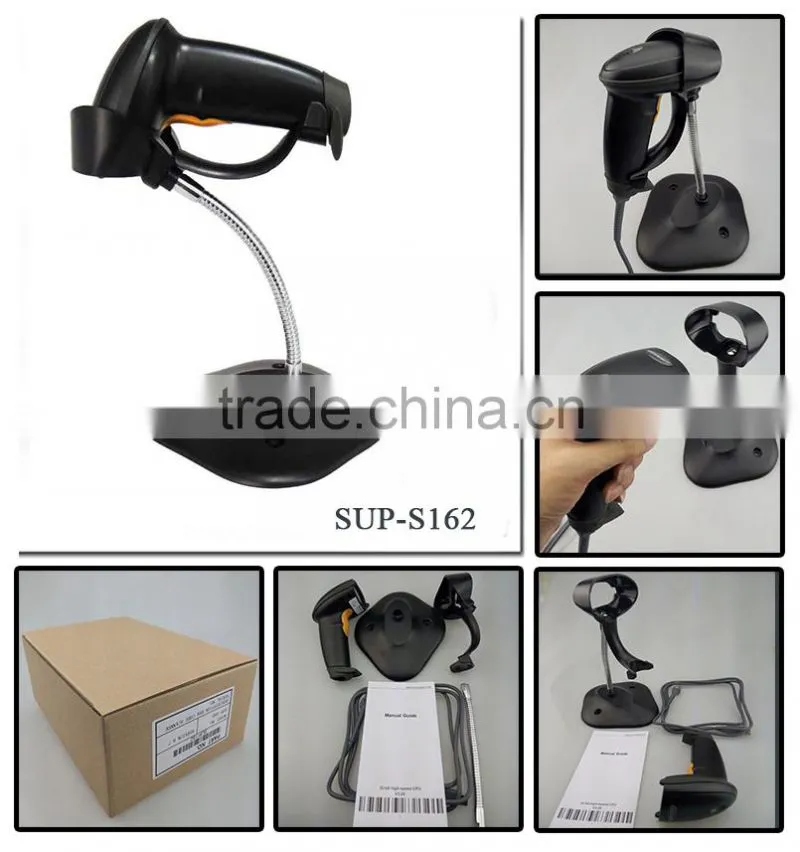

Standard Configuration:Manual,Product Certification,Stand(optional),USB Cable

Detail display

Advantage

Product categories

Application field

Contact Us

Shenzhen Sunphor Electron Limited: Contact nameToby Chow
Chat Now; Phone86-755-83222035; Address4F, Building 7,TongFuYu Industrial Park,HuaXing Road,DaLang,LongHua District., Shenzhen, Guangdong

*Email
Please enter Your valid email address.
*To

Toby Chow
*Message
Your inquiry content must be between 20 to 5000 characters.
Please enter a correct verification code.

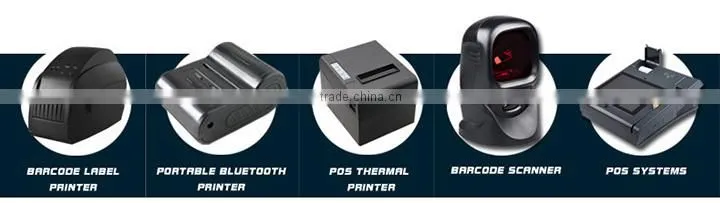

Product Categories
