Straight N Male to RP SMA Male Jack 50ohm rf Coax Adapter

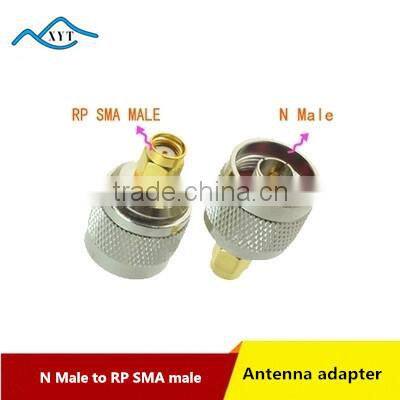

Straight N Male to RP SMA Male Jack 50ohm rf Coax Adapter photo-1
US$ 0.2 - 0.99 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
XYT
Model Number:
XYTC-29
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name XYT
Model Number XYTC-29
Type Adapter
Application RF
Gender Male
Product Description

Straight N male to RP SMA male jack 50ohm rf coax adapter



Impedance

50 ohm

Frequency range

0-12.4GHz on flexible cable

0-18GHz on semi-rigid cable

Temperature

-65°C~+165°C



Working voltage

RG-178:170 VRMS max

RG-316,.085”:250 VRMS max

RG-142,.141”:335 VRMS max



Dielectric withstanding voltage

RG-178:500 VRMS min

RG-316,.085”:750 VRMS min

RG-142,.141”:1000 VRMS min

VSWR

Straight: 1.3 max

Right angle: 1.5 max

Contact resistance

Center contact: 6 milliohms max

Outer contact: 2 milliohms max

Insulator resistance

500 megohms min


Straight N male to RP SMA male jack 50ohm rf coax adapter



We have many kinds of connectors and adapters,We alao can based on your drawing to make,if you need ,pls contact us for more detail information.Thanks

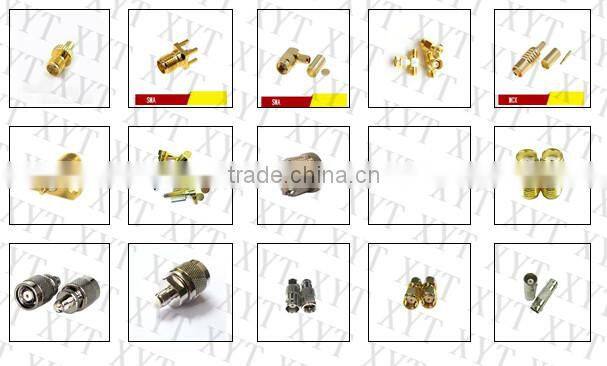

More Related Connector:



Straight N male to RP SMA male jack 50ohm rf coax adapter



Production Equipment:







About Us:



Shipping:







Trade Terms



 1. Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.

 2. Production lead time:5~ 7days against the deposit received.

  3. Sample can be delivered in 3-5 days.

 4. Shipping freight are quoted under your requests.

 5. Shipping port: Shenzhen.

 6. Discounts are offered based on order quantities.

 7.MOQ:1PCS.





Our Service



 1.Your inquiry related to our products or prices will be replied in 24hrs.



 2.Well-trained and experienced staffs to answer all your enquires in fluent English.



 3.OEM&ODM, any your customized Antenna we can help you to design and put into   product.



 4.Offered for your unique design and some our current models.

 5.Protection of your sales area,ideas of design and all your private information.



  If you need more detail information about us,pls send the enquiry to us now.thanks!
