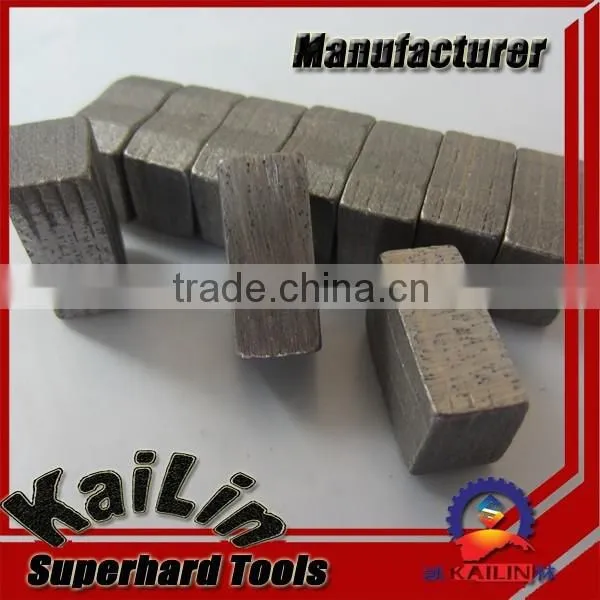

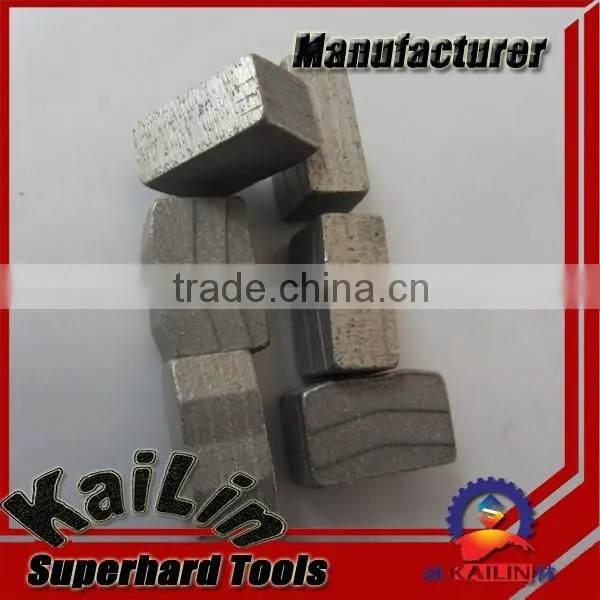

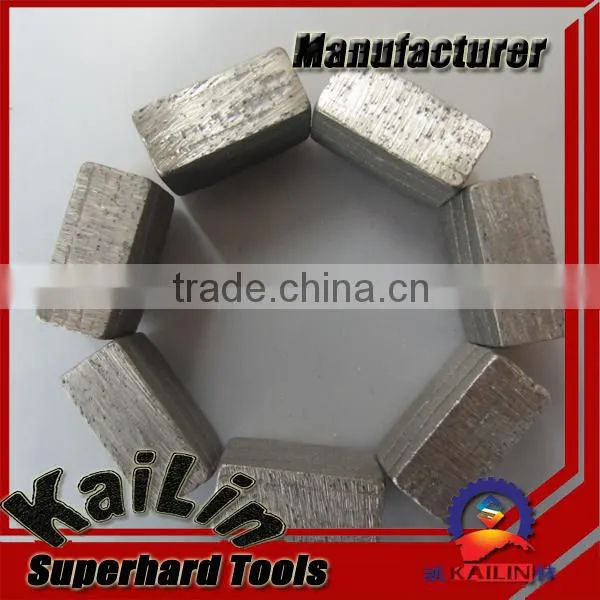

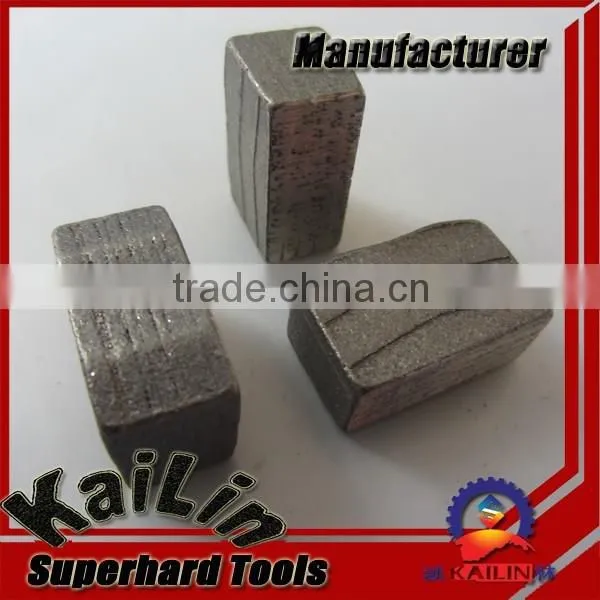

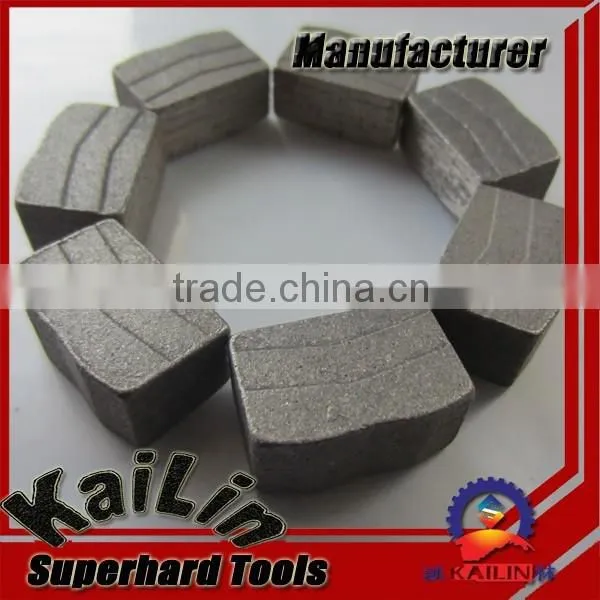

China hot sales diamond segment, granite segment, cutting segment all over the word
1. Diameter: 2500mm
2. Segment specification: 24*10.5/11.5*15mm
3. Segment No.: 140pcs/set
4. Application: granite block cutting
5. Different quality for soft, middle hard, hard granite
6. Market: India, Middle East market
According to different application, we offer:
1. Diamond segment for marble;
2. Diamond segment for granite;
3. Diamond segment for sandstone;
4. Diamond segment for limestone;
5. Diamond segment for basalt;
6. Diamond segment for slate and so on.
- High frequency welding, and use for Bridge cutting machine, Large size gantry cutting machine and single column cutting machine.
- Excellent comprehensive cutting performance.
- Good sharpness, high efficiency at the process of cutting & long lifespan.
- Smooth cutting, flat surface, narrow cutting gap, stone waste reduction.
-
Granite cutting segment, diamond segment specification for reference:
Diameter (mm) Segment Dimension L*X*H (mm) Core Thickness (mm) Segment No. (pcs) 250 40*3.0*10 1.8/2.0 18 300 40*3.2*12(15) 1.8/2.2/2.4 21 350 40*3.2*12(15) 1.8/2.2/2.4 24 400 40*3.4*12(15) 2.2/2.6/2.8 28 450 40*3.8*12(15) 2.5/2.8/3.3 32 500 40*4.2*12(15) 2.8/3.0/3.2 36 550 40*4.2*12(15) 3.0/3.5 40 600 40*4.6*12(15) 3.0/3.6 42 700 40*5.0*12(15) 3.6/4.0 46 800 40*6.0*12(15,20) 4.5/5.0 46 900 24*6.6/6.2*15 5.O 64 1000 24*7.4/6.8*15 5.O 70 1100 24*7.4/6.8*15 5.5 74 1200 24*7.5/7.0*15(20) 5.5 80 1300 24*8.0/7.4*15(20) 6.O 88 1400 24*9.0/8.4*15(20) 6.5 96 1600 24*9.0/8.4*15(20) 6.5 108 1800 24*10/9.0*15(20) 7.O 120 2000 24*10.6/9.8*15(20) 8.O 128 2200/2300 24*11.5/10.5*15(20) 8.5 132/136 2500 24*11.5/10.5*15(20) 9.5 140 3000 24*13.0/12*15(20) 10 160 3500 24*13.5/12.5*20(30) 11 180
Diamond segment Hand Tool Sets Product Diamond segment
Granite segment Hand Tool Sets Cutting material Granite segment
Cutting segment Hand Tool Sets Shape M shape
Diamond segment Hand Tool Sets Inch 100"
Granite segment Hand Tool Sets Diameter 2500mm
Nanan Kailin Superhard Tools Co., Ltd is found in 1993. We are professional manufacturer. Our factory located in Shuitou town, which is a famous stone city.
Our products include:
1. Diamond segment for stone cutting;
2. Diamond saw blade:
- Diamond saw blade for granite cutting
- Diamond saw blade for marble cutting
- Diamond saw blade for marble and granite cutting
- Diamond saw blade for sandstone cutting
- Diamond saw blade for limestone cutting
- Diamond saw blade for quartz cutting
- Diamond saw blade for ceramic cutting
- Diamond saw blade for Jade cutting
- Diamond saw blade for microcrystal cutting
- Diamond saw blade for Mosaic cutting;
- Diamond saw blade for concrete cutting;
- Diamond saw blade for reinforced concrete cutting;
- Diamond saw blade for asphalt cutting;
- and so on..
3. Multi blade and Multi blade segment;
4. Diamond gang saw blade and gang saw blade segment;
5. Diamond core drill bit and core bit segment;
6. Diamond wire saw:
- Diamond wire saw for granite quarry;
- Diamond wire saw for marble quarry;
- Diamond wire saw for granite block squaring;
- Diamond wire saw for marble block squaring;
- Diamond wire saw for granite profiling;
- Diamond wire saw for marble profiling;
- Diamond wire saw for concrete cutting;
- Diamond wire saw for reinforced conctere cutting;
- Diamond multi wire saw
7. Diamond polishing tools and so on..
Packing: Plastic film, Paper box and wooden case
Shipping:
1. Sample order by Express door to door, 3-5 days deliver your address after shipment;
2. Bulk order by Air or by Sea to your nearest airport or city port.
( 5-7 days by air, 15-45 days by sea.)
1. We are profession manufacturer in diamond tools, we have more than 20 years experience in this line.
2. We are Reliable Alibaba Supplier, Trade Assurance Supplier, we can ensure you good quality and on time shipment.
3. We offer competitive price, good quality, best service.
When send the enquiry, please kindly inform:
1. Product Specification
2. Application (such as cutting material)
3. Machine powder
We are new in Alibaba, but we are rich experience in manufacture diamond tools.
Wellcome to enquiry, your enquiry will be reply within 24 hours!
