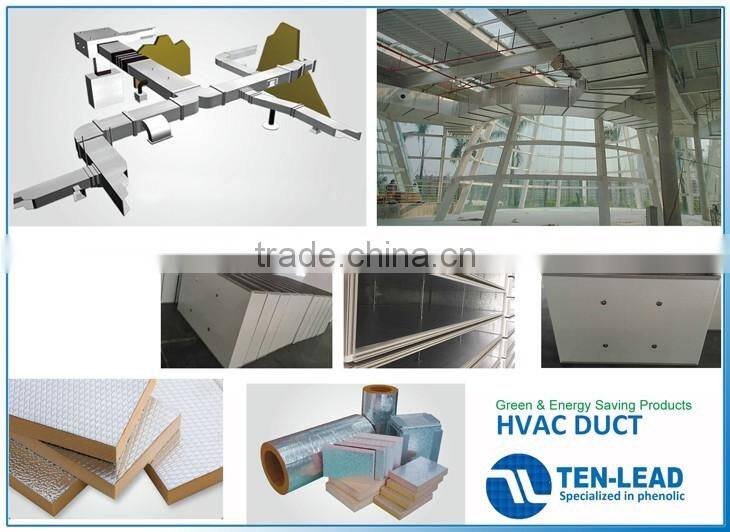

Help CenterChina GOOT Phenolic Foam Pre-insulated Koolduct Panel
Related Products
-
Phenolic Foam Insulation Pipe Section, Phenolic Pipe Supports, LNG Pipe InsulationUS$ 380 - 450MOQ: 1000 Cubic Meters -
Ten-lead Phenolic Foam Pre-insulated Duct PanelUS$ 5 - 7MOQ: 1000 Square Meters
-
ChinaTen-lead Phenolic Foam Insulated Duct PanelUS$ 5 - 6MOQ: 1000 Square Meters
-
Ten-lead Flame Retardant Insulation Panel,Phenolic Foam Pre-insulated Duct Panel,HVAC Ducting Panel, AC Duct PanelUS$ 5 - 7MOQ: 1000 Square Meters
-
Phenolic Foam Pipe Insulation Section, Phenolic Pipe Supports, LNG Pipe Insulation, Cool and Hot Water Pipe InsulationUS$ 380 - 450MOQ: 1000 Cubic Meters
Description
The GOOT® Phenolic Foam Pre-insulated Duct panel system the most advanced and nnovative energy saving system of air-distribution ductwork available worldwide. Ductwork is fabricated using rigid insulation panels in sections up to 3.95m-4m and can provide the optimum energy saving and environmental solution in comparison with other types of ductwork. The system consists of Phenolic Pre-insulated Duct Panels, fabrication methods, jointing systems and a complete line of accessories to produce a System where air leakage can be reduced to a fraction of that typical of sheet metal ductwork.
Advanges
Advantages compared to traditional insulated Sheet Metal Ductwork:
Do it in one time, no lag insulation required, save the labor and cost.
Save the buiding space
Very light, decrease the total weight of building
Little air leakage by flange joint connectting
Low thermal conductivity, no condensation and energy saving
Closed cell foam, good acoustic insulation
Fire proof, no smoke when exposing to fire
Faced with aluminum foil, it’s water proof and anti-microbial
CFC and HCFC free, environment friendly
Parameters
Item |
Unit |
Specification |
Panel Structure |
Alu./Foam/GI |
|
Standard Panel Size |
mm |
3950*1200*20 |
Alu. Foil Thickness |
mm |
0.06 |
Galvanized/Alu.sheet/Painted Steel Sheet Thickness |
mm |
0.18 |
Foam Density |
kg/m3 |
60 |
Thermal Conductivity |
w/m.k |
0.021 |
Compressing Strength |
Mpa |
0.25 |
Bending Strength |
Mpa |
1.2 |
Combustibility Property |
Class 0 (BS476 Part 6 & 7) Class A (ASTM E84) |
|
Water Absorption |
% |
1.9 |
Max Smoke Density |
% |
2 |
Dimension Change |
% |
0.3 |
Working Temperature |
°C |
-250- +150 |
Maximum Allowable Wind Velocity |
m/s |
≤15 |
Continuous Running Maximum Temperature |
°C |
≤120 |

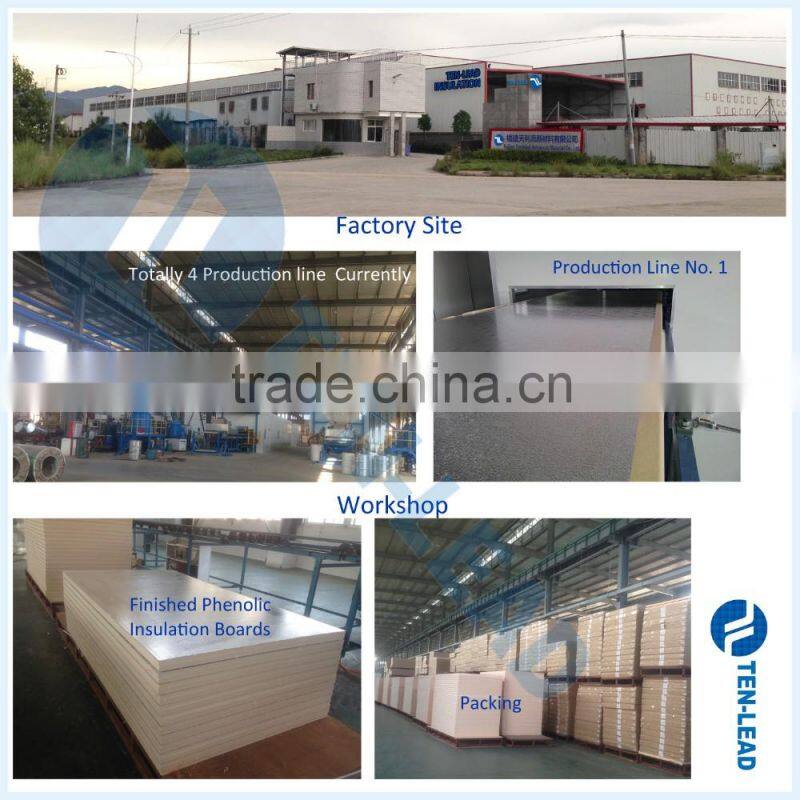

Factory and Workshop

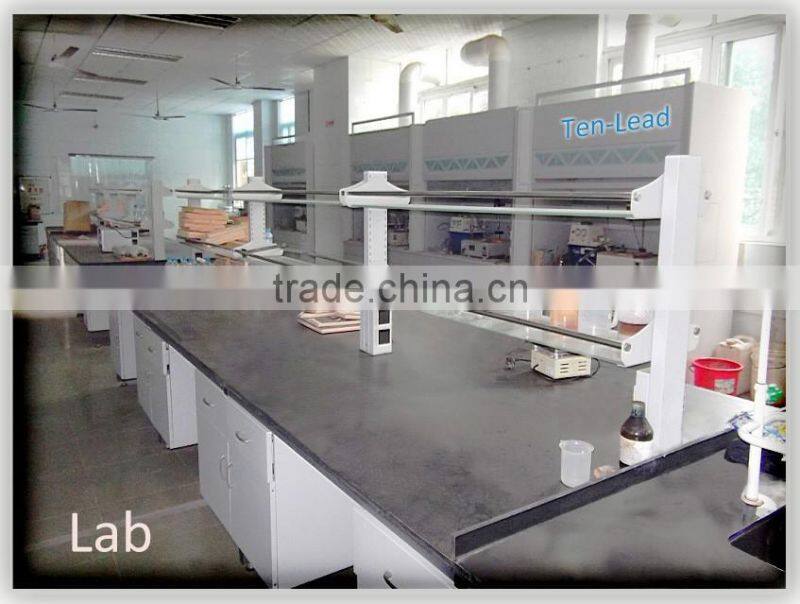

Lab

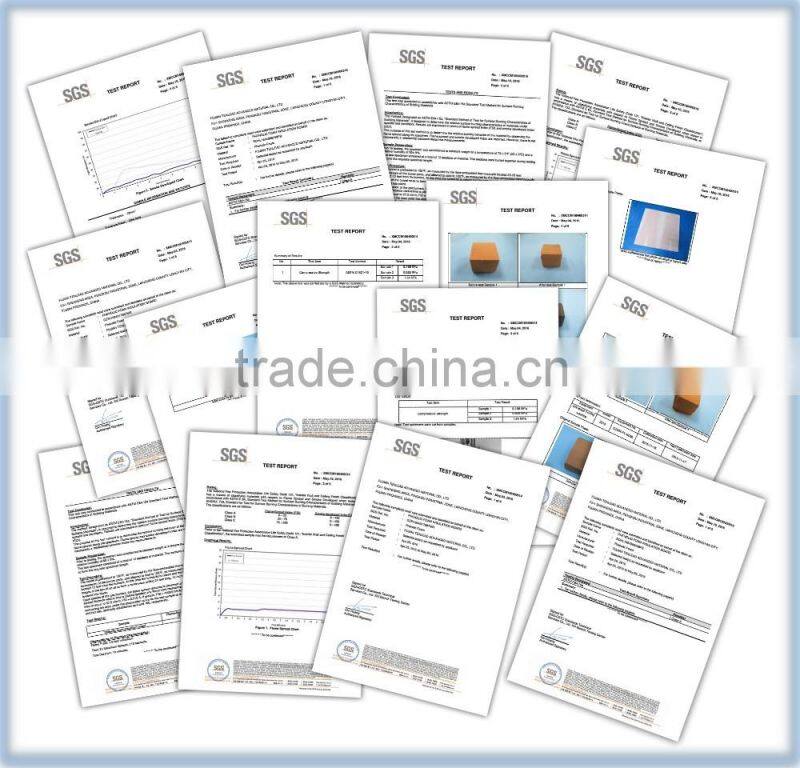

Certificates

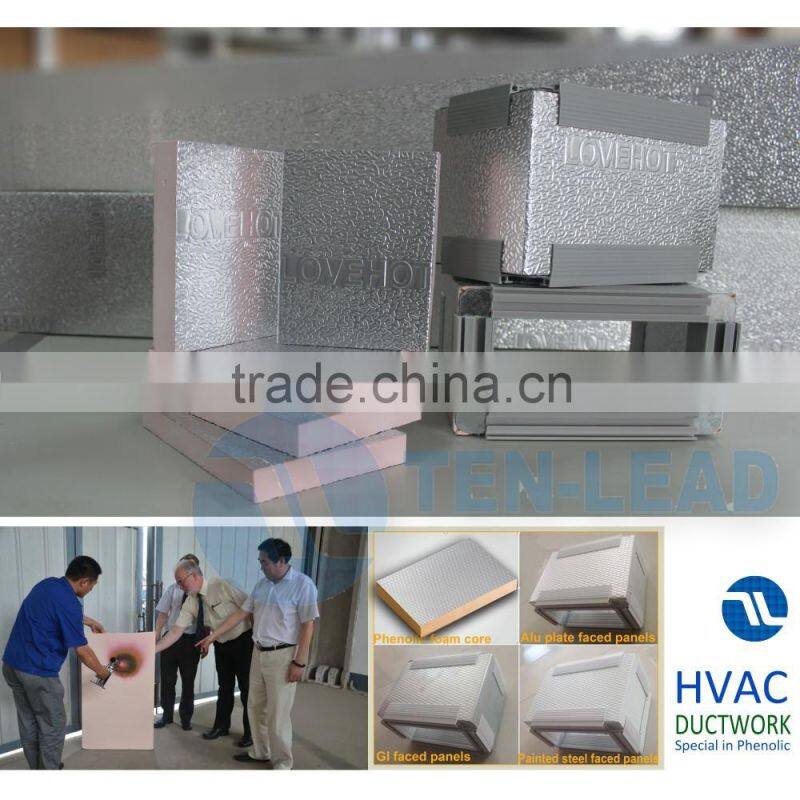

Products
Applications
Project Case
Wecome to our business Site, please let us know your detailed requirement so that we can quote you and offer you the right things at our earliest time!
