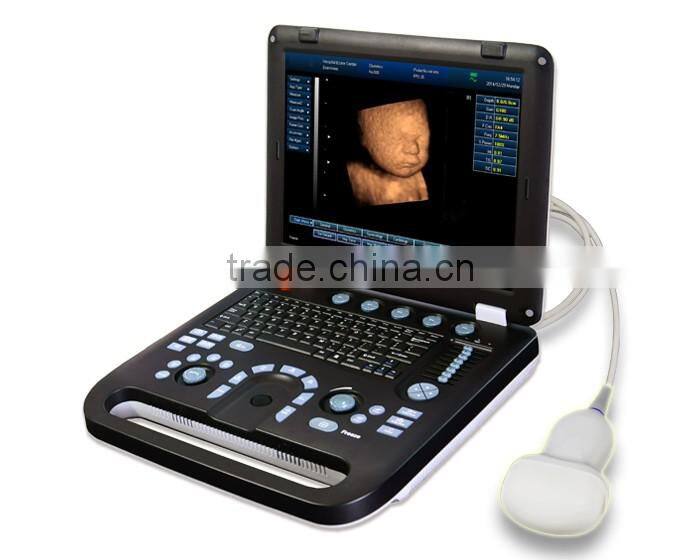

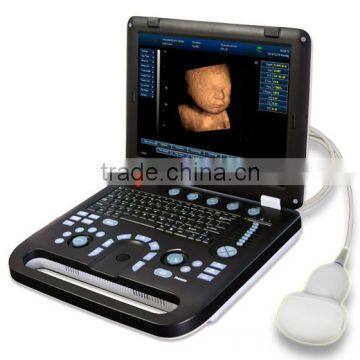

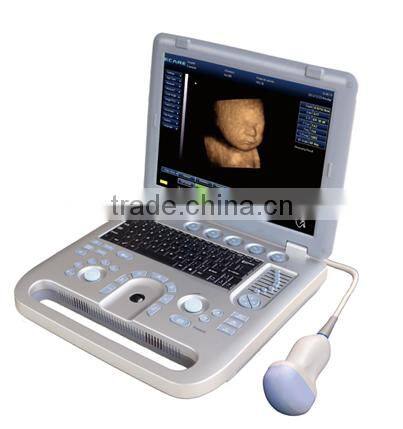

15in LCD Digital Laptop Ultrasound Scanner
Model:MCB-E5B
This newly developed laptop style, fully-featured ultrasound system is a perfect integration of cutting-edge ultrasonic diagnostic imaging techniques and modern computerization technology, which offers uncompromising 2D performance and exceptional value in a convenient and pleasant operation package. Real-time 4D fetus image which was traditionally seen in a color Doppler ultrasound system is now accessible in this black & white ultrasound.
1.Cutting-edge Imaging Techniques
Digital Beam Forming (DBF) Real-time Dynamic Aperture (RDA),
Dynamic Receiving Focus (DRF), Tissue Harmonic Imaging (THI)
2.Professional Clinical Diagnostic Solutions
Applications:General, OB/GYN, Cardiology, Urology, Small organ, etc
Imaging mode:B, 2B, 4B, M, B/M
One-click optimization: Preset various calculation formula, diagnostic parameters, case library, etc
File management: Image save, video save, examination report auto-generation
Peripheral ports: USB2.0/ Video/ /S-video/RS-232/ DICOM3.0

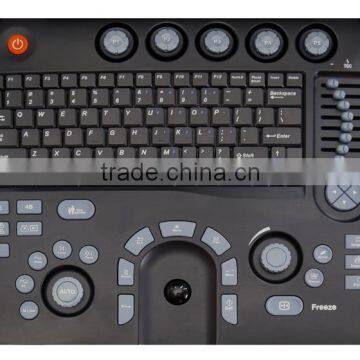

Ergonomic Designed Keyboard, Radium Carved Soft Keys
3.Multi-frequency, High-density, Broadband Probes
Volume
Convex
Linear
Trans-vaginal
Trans-rectal
Micro-convex
4.Standard Configuration
MCB-EC5 main unit
3.5MHz/R40 volume probe
4D imaging software package
250ml coupling gel
AC adapter
Built-in rechargeable lithium battery
Protection bag
Grounding cable
Fuse (2)
Operation manual
5.Options
3.5MHz/R60 convex-array probe
3.5MHz/R20 micro-convex-array probe
7.5MHz/L40 linear-array probe
6.5MHz/R13 transvaginal probe
DICOM3.0
Biopsy guide for convex probe
Video printer
Laser printer
Ergonomic mobile trolley
Air captain suitcase
Drag and pack backbag
| 6.Specification | |
| MODEL | MCB-50B |
| Monitor | 15 inch LED |
| Display mode | B, B+B, B+M, M, 4B, 9B |
| Image gray scale | 256 level |
| Cine loop | Auto 256 frames, Manual, 4B/9B, Auto/Manual M, B/M |
| Image storage | >50,000 frames |
| Scan angle | 60-160 degrees, depending on probe |
| Scan depth | 20mm~240mm |
| Dynamic range | ≥100dB, 4-level adjustable |
| Image flip | Up/down, left/right, black/ white, 90/180/270° |
| Zoom | Continuously, real-time dynamic PIP |
| Focus position | Adjustable |
| Focal space | Adjustable |
| Measurement | Distance, circumference, area, volume, angle, heart rate, time, velocity, residual urine, etc. |
| Software packages | General, OB, GYN, cardiology, urinary, small organ |
| Notation | Date, time, name, sex, age, doctor, hospital name, full screen notation |
| Body mark | 43 types |
| Peripheral port | Video, S-video, USB2.0, DICOM3.0, VGA |
| Battery volume | 8,000mAh |
| Power consumption (MAX) | 75VA |
| Dimension | 35.5*36.6*7.5 CM |
| Net Weight | 5kgs |
