Specifications
1.XQY12-60 Automatic brick making machine is Automatic Brick Machine2.Hydraulic pressure
3.PLC control
4.CE,BV,SGS
Technology Description:
machine,washing machine lg,ooi laser marking machine,print machine,printing machine,sewing machine,plastic machine,coffee machine,ice cream machine,wash machine,
1 Machine, electricity, hydraulic are all combined together and controlled by PLC with the optional locking password to protect the running with safety .Main control table is with computerized operation screener (Chinese / English menu, LCD touching screen), which can materialize the parameter setting, single collecting along with the machine and breakdown analyzing, thus the machine can keep in the best working status. By long-distance communication can materialize the long-distance monitoring, breakdown seeking and system updating.
2 Being vibrated by the hydraulic-pressure motor, the vibration efficiency is high. The unique vibration device is in the form of linkage incorporate vibration table, which materializes to minimize the gap between all the vibration points in even, thus further guarantee the density of the final products. The compressing and vibration are organic combined to guarantee the density of the products.
3 It is adopting advanced technology to lay the material; when the material laying device reaches to the upper on the mold, the material inside the device will fast and evenly pour into the mold. The material is laid evenly while being molded in a short time. The weight tolerance between each finished product is ±5%, while the intensity tolerance is ±15%.
Item |
Specification |
Quality |
|
Block Making Machine |
Main Machine |
XQY12-60 |
1 |
PLC Control Unit |
1 |
||
Hydraulic Unit |
1 |
||
Pallets Feeder |
1 |
||
Blocks Conveyor |
1 |
||
Belt for Material |
1 |
||
One set mould |
1 |
||
A set of Spare Parts & Tools |
1 |
||
Palletizer |
1 |
This machine is multifunctional, could make kinds of blocks while change the moulds.)
Referenced Capacity XQY12-60: (as per day/ 10 hours )
|
Per mold |
Per day |
230*110*75mm |
35pcs |
63000pcs |
Solid Block(240*115*53mm) |
60pcs |
108000pcs |
Eight-holes Block(240*115*90mm) |
30pcs |
54000pcs |
Hollow Block(390*190*190mm) |
12pcs |
21600pcs |
Technology Parameter:
Main Machine Overall size (L×M×H mm): 7800*2250*3200mm
Pallet Size (L×M×H mm): 1360*850*25mm
Molding Periodicity (differs from the different blocks):15-30 seconds
Machine Power: 42KW Machine Weight: 15 T
Our certificates for the hydraulic block making machine

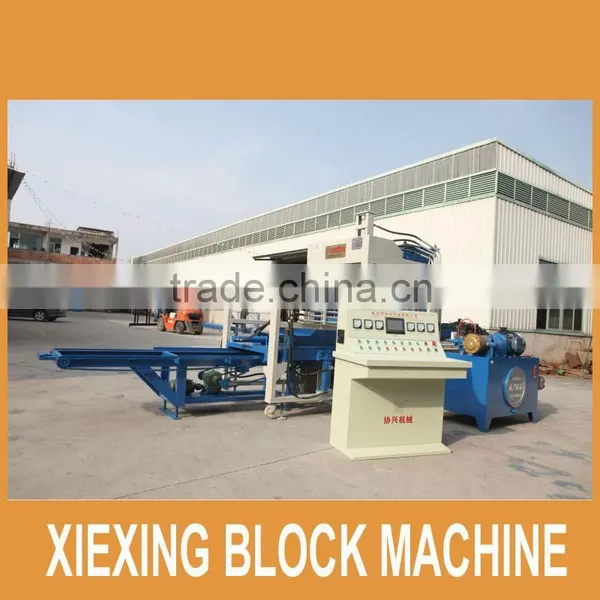

Our Factory workshop for hydraulic brick machine:
