Home > Products > Word Stock Display > 12832 Liquid Crystal Display LCD Monochrome Liquid Crystal Display Module
12832 Liquid Crystal Display LCD Monochrome Liquid Crystal Display Module
Negotiable
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
COB Graphic Lcd Display LCM Module ST7920
-
122x32 Lcd Display, ST7920 Controller Lcd Display Module, Chinese Word Stock Display
-
ST7920 Controller IC for 122X32 Dots Lcd Screen
-
12864 LCD Screen With Chinese Character LCD Blue Screen With a Backlight ST7920
-
128x32 LCD Module Chinese Word Stock Lcd Display
-
Hot Sales Graphic Matrix Display Module With ST7920 128x32 Lcd
Product Details
| Place of Origin | Guangdong, China | Brand Name | YB | |
| Model Number | YB12832ZB | Type | LCM |
Product Description

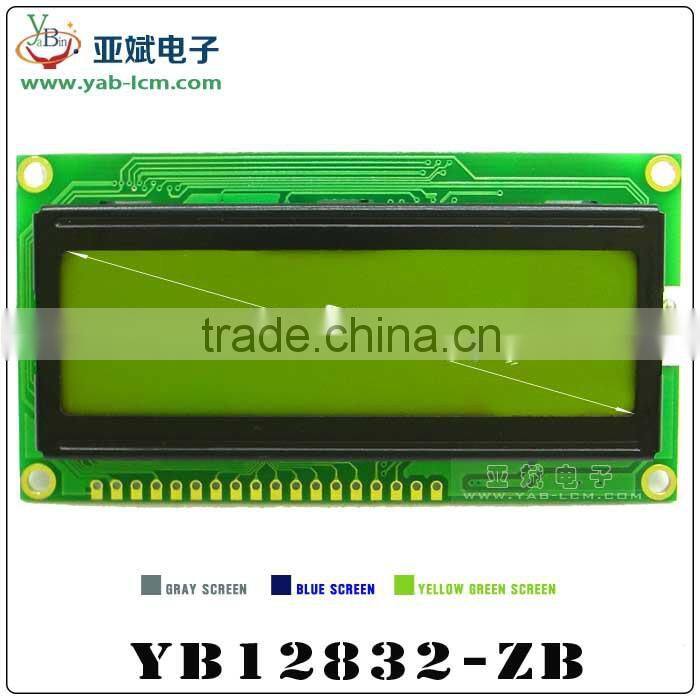

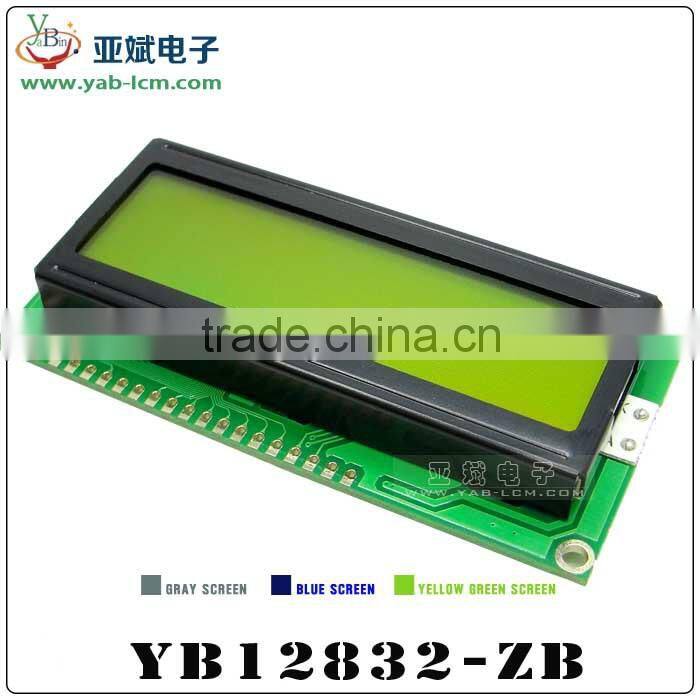

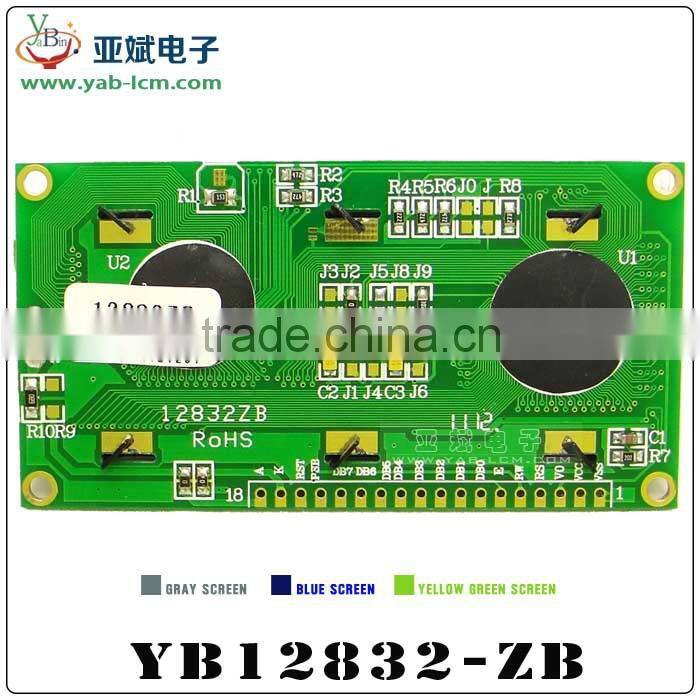

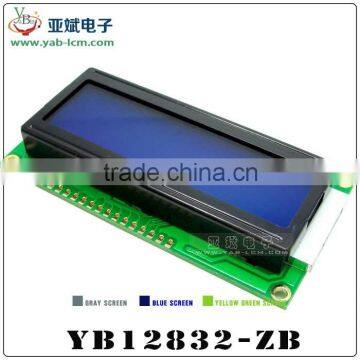

12832 liquid crystal display LCD monochrome liquid crystal display module
Product Description
1. Descripotion
| Gross Weight (kg) | |
| Manufacturer | YaBin |
| Series Number | YB12832ZB |
| Display Format | 128*32Dots |
| Outline Dimension | 84*44*13mm |
| Visual Area | 70*20mm |
| Active Area | 66.5*16.6mm |
| Diagonal Size | 2.866 inch |
| Dot (Pixel) Size | 0.48*0.48mm |
| Dot (Pixel) Pitch | 0.52*0.52mm |
| IC Package | COB |
| IC or Equivalent | ST7920 or EQV |
| Interface | 8-bit/4-bit Parallel,3-SPI Serial |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 45mA |
| Operating Temp | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| If accept customized | Yes |
| RoHS Compliance | Yes |

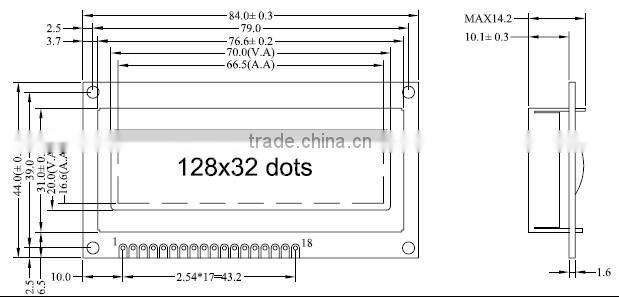

2. Outline size

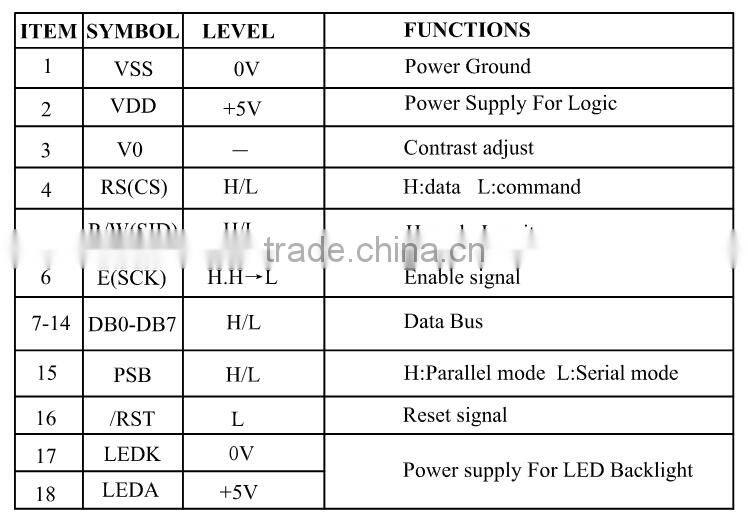

3. The interface definition
Packaging & Shipping
Our Services
| 1. Has a number of high quality engineers and experts to provide guidance for the maintenance. |
| 2.Skilled technology and strict for quality. |
| 3.Powerful products design and develop. |
| 4.Experienced sales team |
| 5. High Quality |
| 6. 1 year warranty for the products. |
Company Information
| Shenzhen yabin electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises. |
| 1. The pen sections of display module series (TN, HTN, mode) |
| 2. The character dot matrix LCD module series |
| 3. The graphic dot matrix display module series (COB, COG, etc) |
| 4. The OLED dot matrix display screen |
| 5. TFT color screen and industrial control screen series |
FAQ
| A. ask: are you a factory or trading company? |
| Answer: we are a factory |
| B.ask: do you provide product stable? |
| Answer: long-term guarantee continuity of supply. We guarantee that supply long-term supply continuity and never end. Some controllers, integrated circuit may stop production, we will do everything to try to find completely compatible. If the equivalence is unavailable,we will make the new tool and use the most similar IC as a substitute. So you don't have to worry about even if you study for a long time. |
| C.ask: what time can you make delivery? |
| Answer: we can be in 7 to 15 working days according to the size of your order quantity and delivery on schedule. |
| D. ask: what kind of check can provide? |
| Answer: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party. |
| E.ask: what is your warranty period? |
| Answer: shenzhen yabin electronics provides a year of quality assurance,products from the purchase date, unless it is due to the force majeure and human factors. |
| If you want to know more information about the LCD liquid crystal display module, welcome you at any time to come to consult! |
