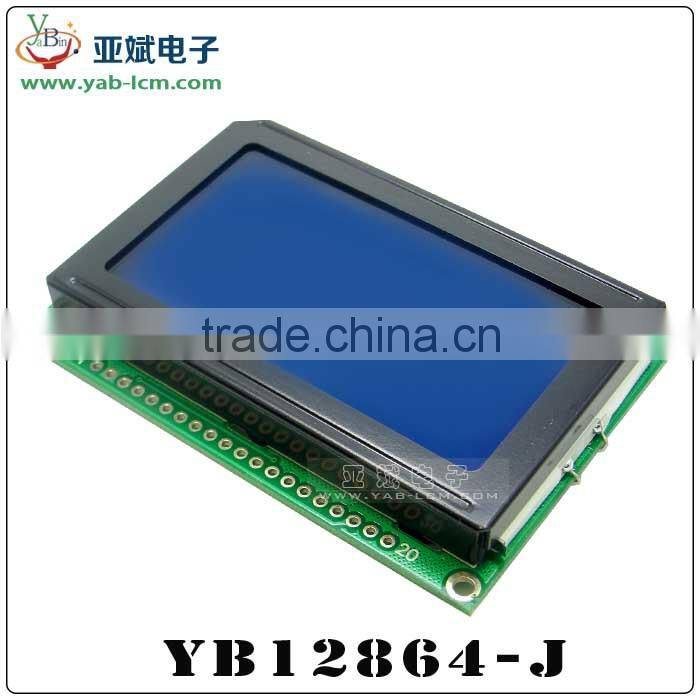

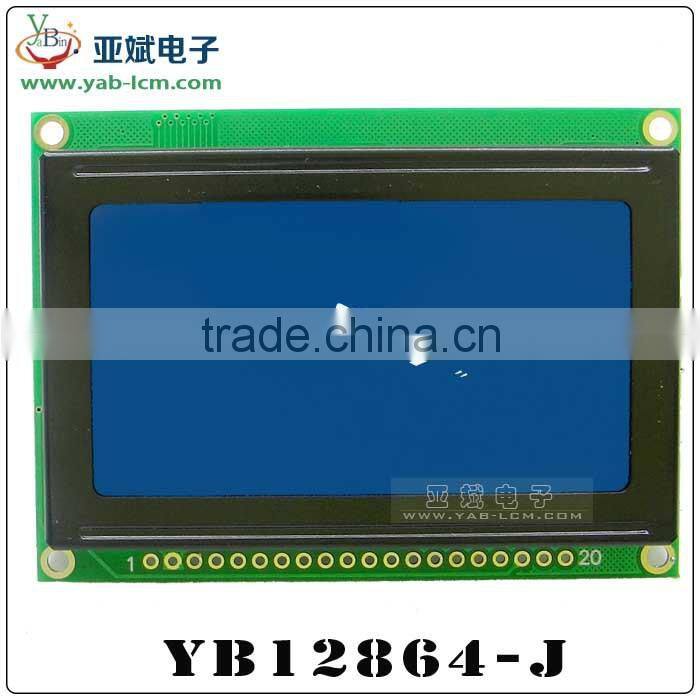

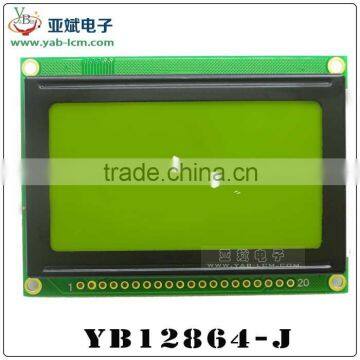

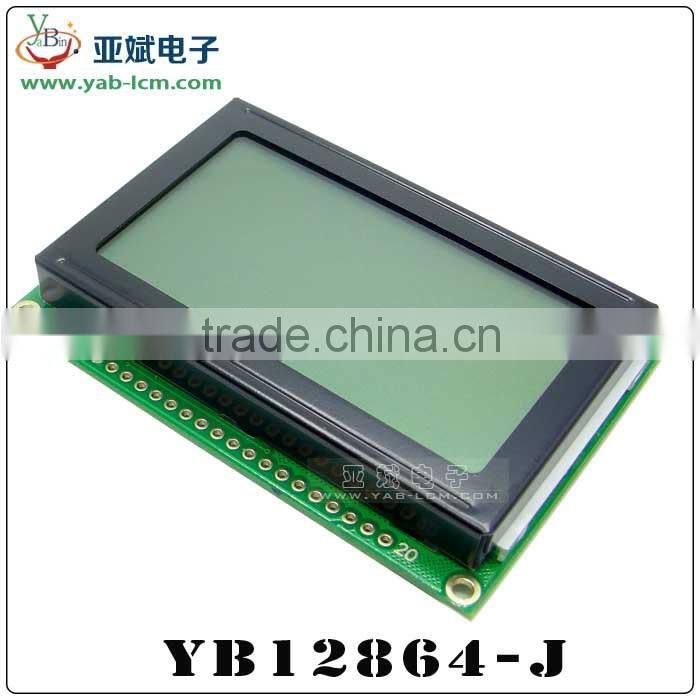

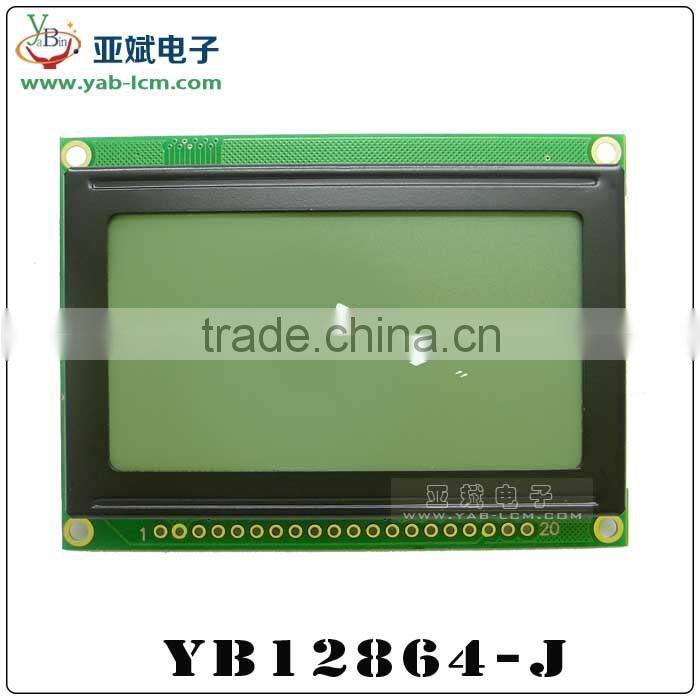

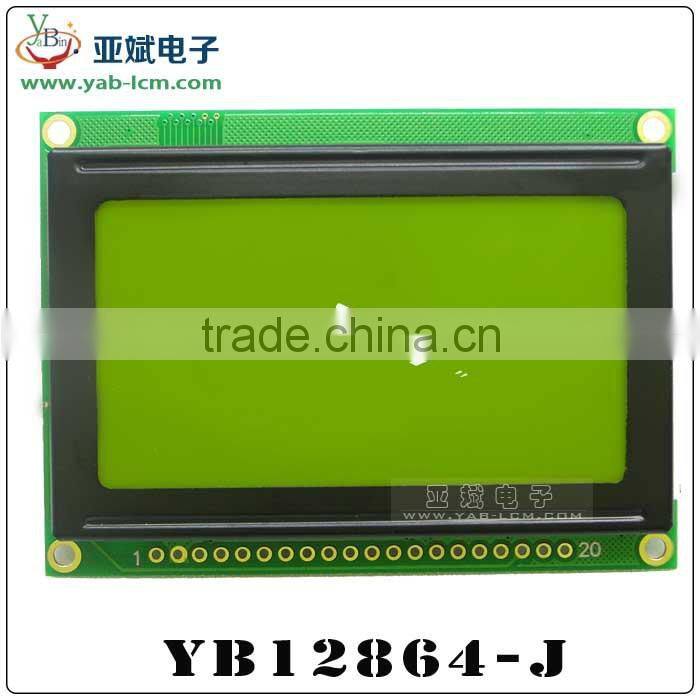

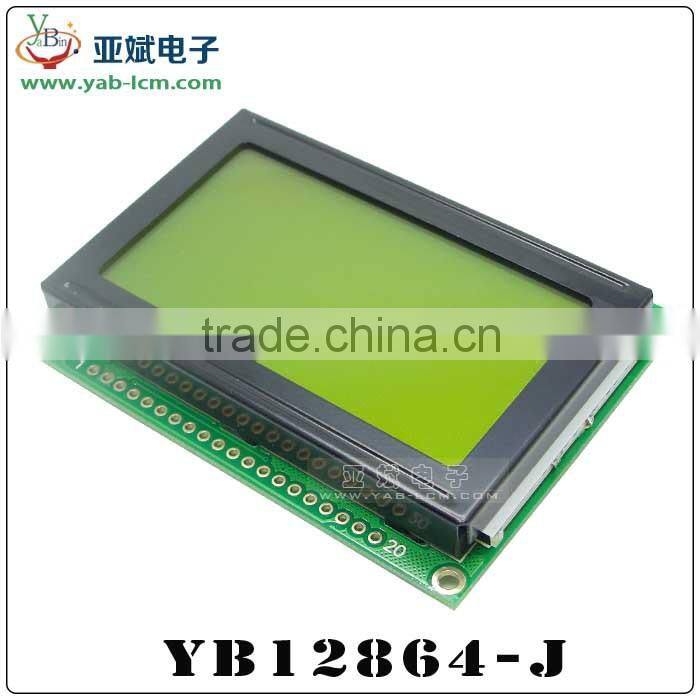

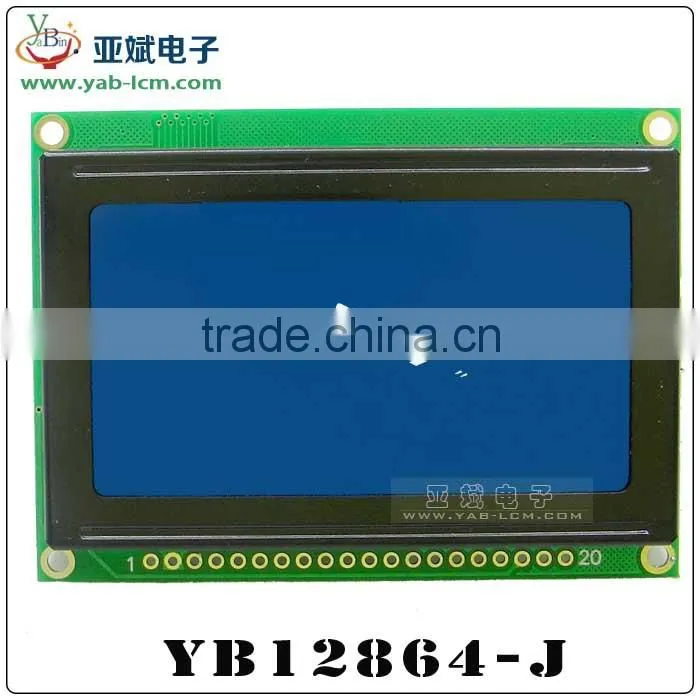

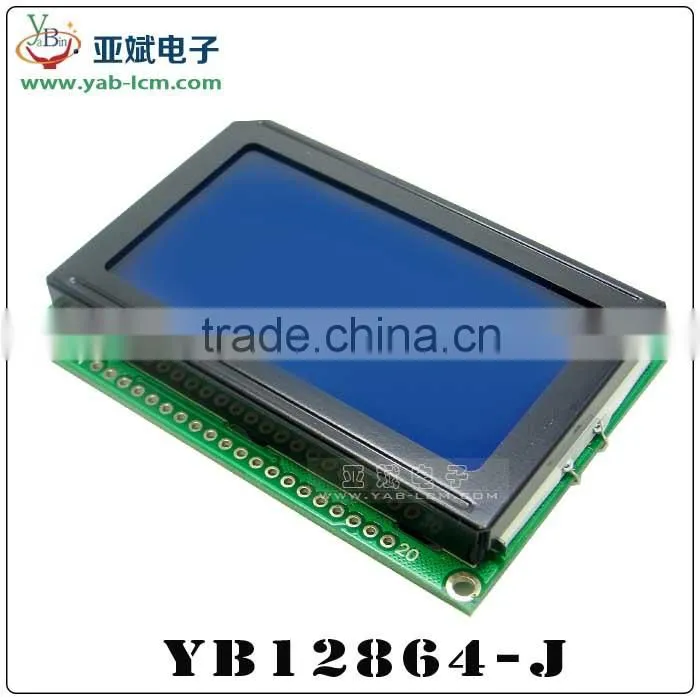

12864 Lcd Module Lcd Panel 128X64 With Backlight Blue Yellow-green Gray
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YB
Model Number:
YB12864J
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Graphic Matrix LCD 12864 LCM Display Module STN Blue Backlight White Character 5V Logic CircuitNegotiableMOQ: 1 Piece -
128X64 5V Yellow/Green Blue Dots Graphic Matrix 12864 LCD Module DisplayNegotiableMOQ: 1 Piece
-
Low Cost 12864 LCD Graphic Module LCD DisplayNegotiableMOQ: 1 Piece
-
KS0107 IC 128x64 Graphic Lcd ModuleNegotiableMOQ: 1 Piece
-
128X64 LCD Module With KS0108 Controller Blue/ Yellow-green Screen,12864 Graphic Lcd Module for LED BacklightNegotiableMOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
YB
Model Number
YB12864J
Type
Graphic
12864 lcd module lcd panel 128X64 with backlight Blue yellow-green grey
Product Description
1. Describe :
| Gross Weight (kg) | |
| Manufacturer | YaBin |
| Series Number | YB12864J |
| Display Format | 128*64 Dots |
| Outline Dimension | 75.0*54.7*12.5mm |
| Visual Area | 60.0*32.6mm 12864 lcd module |
| Active Area | 56.27*38.35mm |
| Diagonal Size | 2.69 inch |
| Dot (Pixel) Size | 0.4*0.4mm |
| Dot (Pixel) Pitch | 0.43*0.43mm |
| IC Package | COB |
| IC or Equivalent | KS0107/S6B0107/SBN6400 or EQV |
| Interface | 6800 8-bitParallel |
| Display Type | STN/FSTN |
| Sunlight Readable | No |
| Touch Panel Optional | No |
| Contrast Ratio(Typ) | No |
| Viewing Direction | 6:00 |
| LED Backlight Color | Blue /Yellow Green /Gray |
| Appearance | White on Blue/Black on Yellow Green/White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Backlight Current (Typ) | 75mA |
| Operating Temp | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| If accept customized | Yes |
| RoHS Compliance | Yes |
2.Overall dimensions:

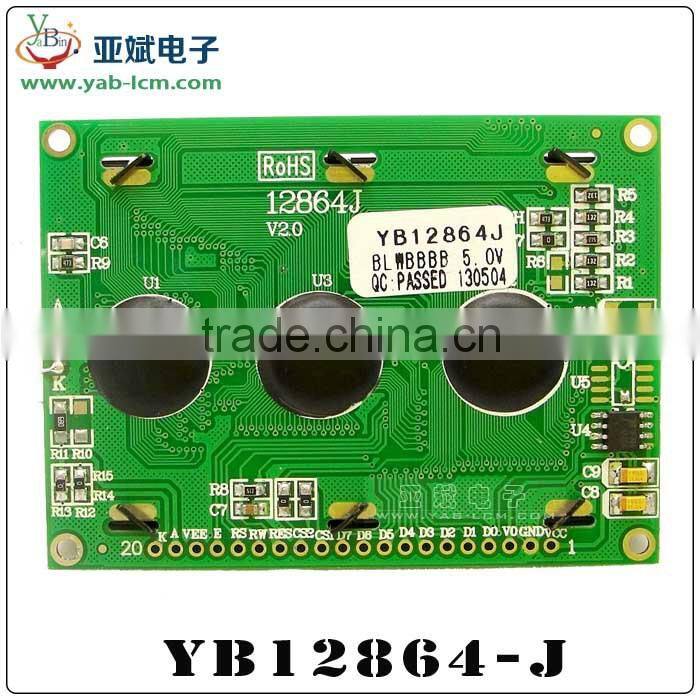

3.Interface pin connec:
Detailed Images
Packaging
Product Range
According to customers' various requests,tft lcd, lcd panel, lcd monitor, lcd screen, TN and STN lcd display module,character and graphic lcd module,industrial lcd,we can match all accessories which inclusive of driver board,LED backlight
1.We provide a verity of lcd glass and lcd moudle, Includeing TN LCD,HTN,STN,FSTN,LCD,COB,COG( 8 Digital LCM )
2.Character Module: Whole product series for 8x2, 16x1, 16x2,16x4,20x2,20x4,24x2,40x2,40x4 characters
3. Graphic Module: Including 64x32 dots,122x32 dots,128x32 dots,128x64 dots,144x32dots,192x32 dots,
192x64 dots,160x80 dots,240x128 dots, 320x240 dots series.
4. LCD Display Module, TFT
Our advantages
1.Skilled technology and strict for quality.
2.Powerful products design and develop.
3.Experienced sales team
4.Prompt delivery and service
5.Low cost solutions and high quality product supply
2 Character lcd screen is elaborated as follows:
Advantages:
1. Backlight Replaceable
2. LED backlight
3. Wide view angle
4. High Quality
5. Produced in our own factory
6. Reasonable Price
FAQ
| 1. Long Term Continuity Supply Warranty |
| We understand you probably worry whether we still offer the display after your long development time.EastRising gives the promise to every |
| customer to every product we sell on this web store. We promise the long terms continuity supply and would never end supply.Some controller |
| IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent is unavailable, we’ll make the new |
| tooling and use the most similar IC as replacement.So you don't have to worry even your research time is very long. |
| 2. What is covered under warranty and for how long? |
| All products are covered under our limited warranty, which provides all products are free of functional defects for a period of one year from the |
| date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the date of shipment. |
| If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt. |
| 3. What is not covered? |
| Warranty is void and no repair or replacement is granted under the following conditions: |
| 3-1. Evidence of mechanical stress to parts including but not limited to. |
| 3-2. Damaged or broken glass or touch screen. |
| 3-3. Damaged conductors/components. |
| 3-4. Damaged polarizer. |
| 3-5. Damaged mounting holes. |
| 3-6. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind. |
| 3-7. Addition or removal of components. |
| 3-8. Evidence of damage caused by applying incorrect voltage. |
| 3-9. Evidence of damage caused by operating outside of specified temperature range. |
| 3-10.Evidence of damage caused by electrostatic discharge (ESD). |
| 4. What if I have a defective product under warranty? |
| We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or refurbished product. |
| "Refurbished" means a component that has been returned to its original specifications. We do not give refunds, credit memos. |
| 5. How do I make a warranty claim? |
| For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.(Please refer to our “Return" |
| policy for more detail.) |
