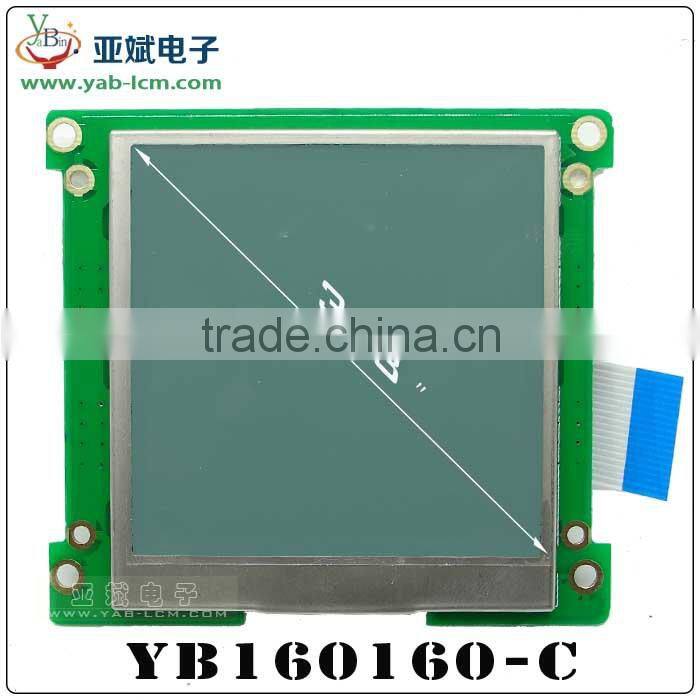

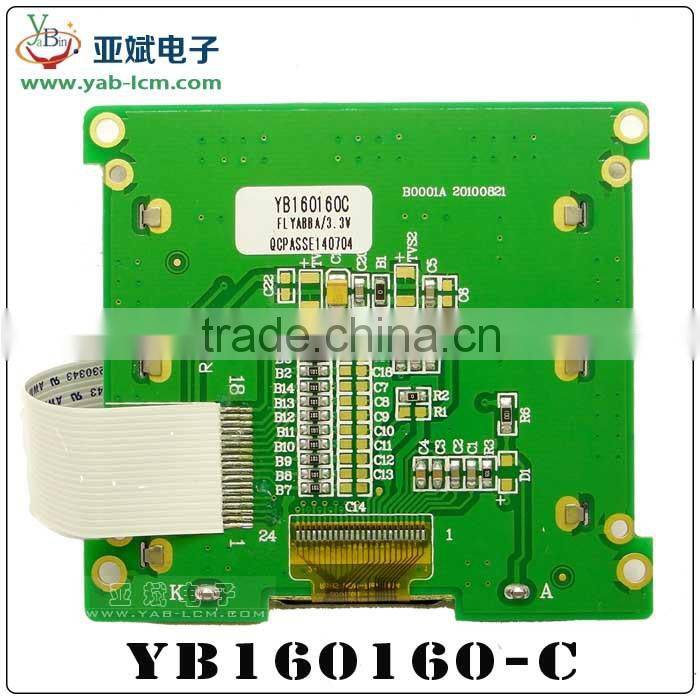

COG 160*160 dot matrix display module 3.3V/5.0V
1. Descripotion
| Gross Weight (kg) | |
| Manufacturer | YaBin |
| Series Number | YB160160C |
| Display Format | 160*160 Dots |
| Outline Dimension | 84.0*76.5*8.0mm |
| Iron frame size | 70.4*65.4*4.4mm |
| LCD size | 63.35*69.3*2.1mm |
| Area size | 60.4*60.4 |
| Diagonal Size | 3.3 inch |
| Dot (Pixel) Size | 0.32*0.32mm |
| IC Package | COG |
| Controller | UC1698u |
| Display Type | FSTN |
| Viewing Direction | 6:00 |
| LED Backlight Color | White |
| Appearance | White on Gray |
| Power Supply(Typ) | 3.3V/5V |
| Operating Temp | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| RoHS Compliance | Yes |

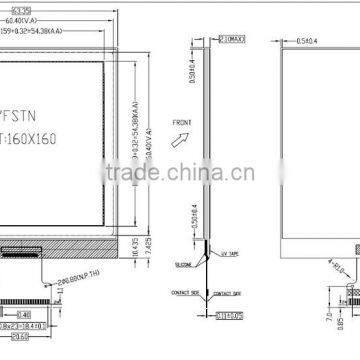

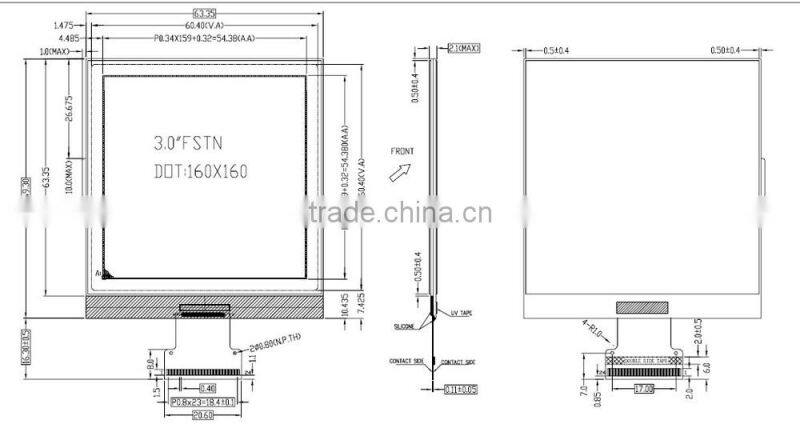

2. Outline size
lcd panel
lcd panel
lcd panel
Packaging: Cartons, Cupboard, EPE, Blister Tray,About how many products in one package, it is up to the size of products,according to customer request.
Shipping: Express way as DHL,Fedex,EMS,UPS,air shipping,sea shipping,Any shipping method you prefer.
1).High Quality. RoHS ,SGS ISO9001 compliant. Every products are strictly checked by our quanlity control department before shipment.
2). Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3).Best Service. We provide best pre-sales and after-sales service to you
4).Custom Design,can specially meet your needs
5).Samples available on request
6).Small MOQ orders can be negotiated
Shenzhen yabin electronics co., LTD is a professional engaged in liquid crystal display (LCD) and liquid crystal display module (LCM) development design, production and sales of high-tech production-oriented enterprises
Products cover the TN, HTN, the STN, FSTN, LCD series products, including COB, TAB, COG,TFT,OLED etc. Series of liquid crystal display module. Products can be widely applied to the temperature and humidity meter, electronic scale, multimeter, smart meter, water meter, gas meter; The bank paper, electronic safes, cash register, stock machine, telephone, walkie-talkie; Massager, treadmill, fat instrument; Air conditioning, microwave ovens, remote control; Learning machine, electronic dictionary, calculator; Nc tanker, industrial control; Game consoles, perpetual calendar, watches, instruments and meters, finance, communications, health care instrument and with the domestic and foreign many well-known manufacturers to establish a long-term good cooperative partnership.
1.Q: Are you manufactory or trade company?
A:We are professional manufactory, which specializes in TN, HTN, FSTN, STN ,TFT ,OLED Color LCD display module and monochrome liquid crystal display module ,LCD modules more than 10 years in Shenzhen! Our advanced full set equipments make sure good quality and competitive price!
2.Q: How can I get the samples?
A: Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing → confirm drawing → make tooling & samples → Samples finished → Delivery via freight collect
3.Q: How long can I expect to get the sample?
A:Contour drawing: 2-3 days Sample time: 10-15 business days
4.Q: what kind of check can provide?
A: shenzhen yabin electronics have multiple test by different departments,from material procurement to finished product QA, QC, salesrep resentatives,ensure all franchise player is in good condition before shipment. We also accept the inspection you designated third party.
5.Q: Can you design the lcd in accordance with our demand?
A:Sure.We will give you the best tooling charge.
6.Q: How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice for deposit payment. We need to know the following information of your order.
6-1)Product information-Quantity,part number
6-2)Delivery time required.
6-3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.
6-4)Forwarder's contact details if you have any in China.
7.Q:How long of mass production ?
A: 25-30 business days. It depends on different order quantities and part number.
Welcome To Your Inquiry !
If you have any more special requests, please contact me. We are a specialized manufacture
in the lcd display module field; and we will make all efforts to meet your need. Thank you .
