Character LCD Display 16x2 , External size:85X30X12mm
- 10000 Piece / Pieces per Month
- shenzhen guangzhou hongkong
- T/T Credit Card PayPal
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | YB | Model Number: | YB1602DB |
Type: | Character |
Product Description

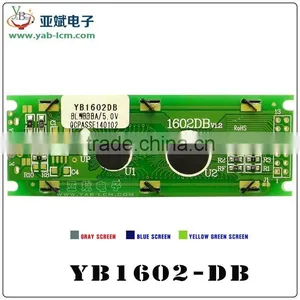

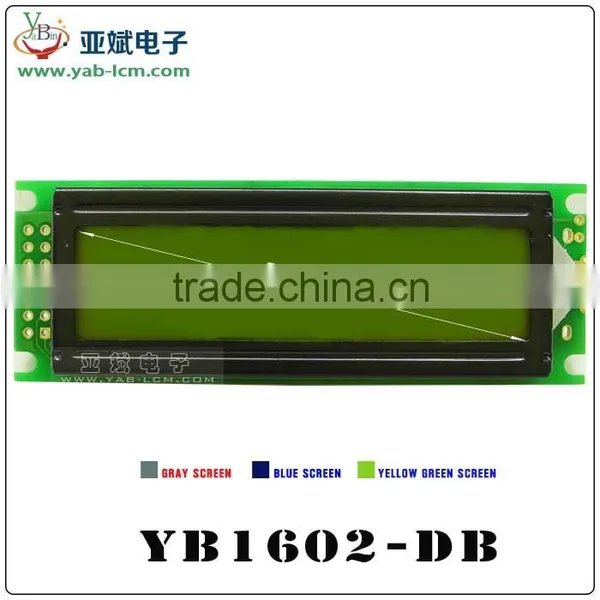

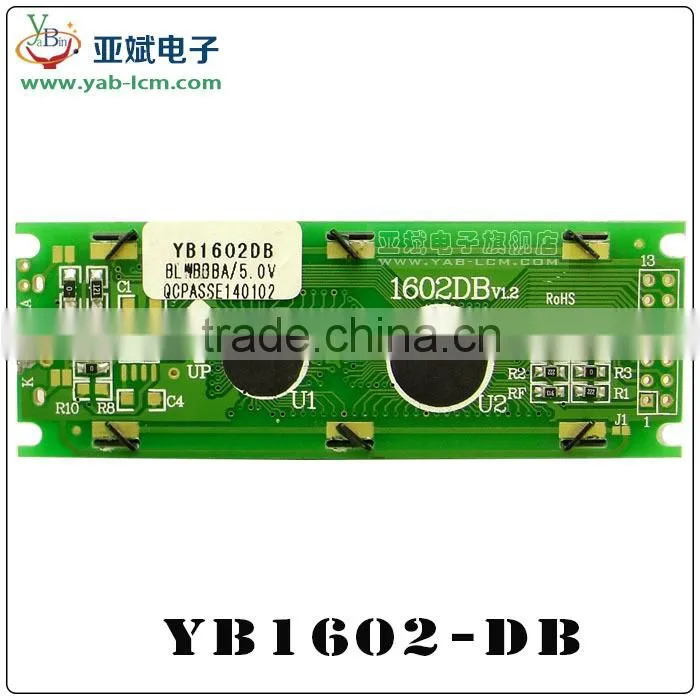

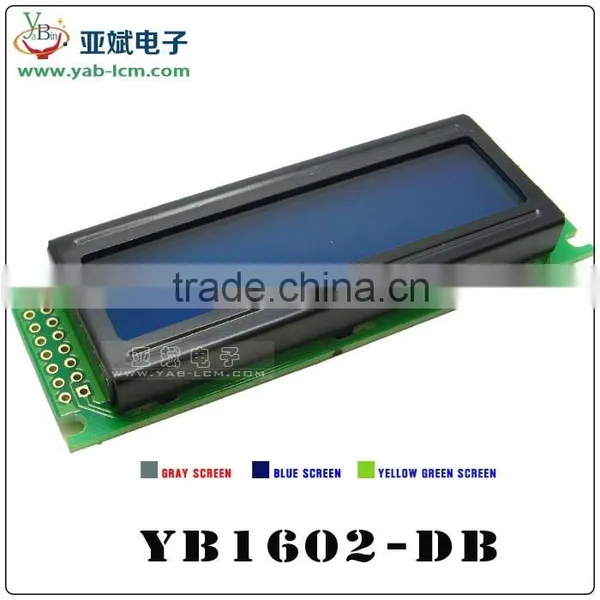

Character LCD Display 16x2 , External size:85X30X12mm
Gross Weight (kg) | |
Manufacturer | YaBin |
Series Number | YB1602-DB |
Display Format | 16x2 Dots |
Outline Dimension | 85(W)x30(H)x12(T)mm |
Visual Area | 64.5×16.0mm |
Active Area | 55.45(W)x10.75(H)mm |
Character Size | 2.95x5.15mm |
Diagonal Size | 2.6“ |
Dot (Pixel) Size | 0.55X0.60mm |
IC Package | COB |
IC or Equivalent | SPLC780C/HS44780/KS0066 or Equivalent |
Interface | 6800 8-bit/4-bit Parallel |
Interface | parallel |
Display Type | STN/FSTN |
Sunlight Readable | No |
Touch Panel Optional | No |
Contrast Ratio(Typ) | No |
Viewing Direction | 6:00 |
LED Backlight Color | Blue /Yellow Green /Gray |

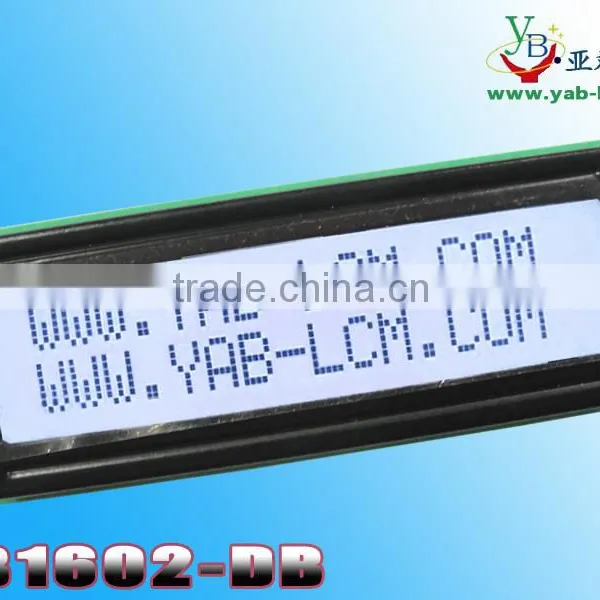

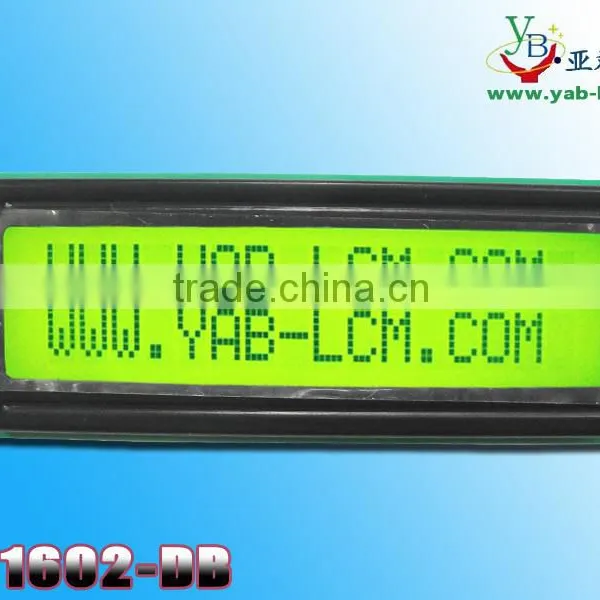

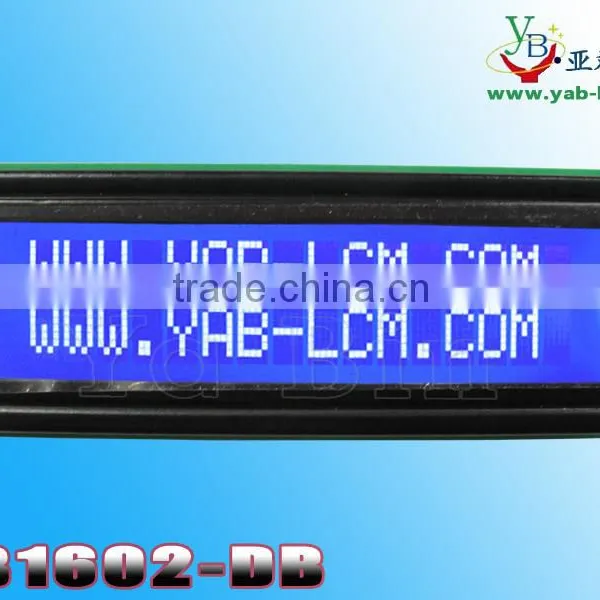

Appearance | White on Blue/Black on Yellow Green/White on Gray |
Power Supply(Typ) | 3.3V/5V |
Backlight Current (Typ) | 15mA |
Operating Temp | -20℃~70℃ |
Storage Temperature | -30℃~80℃ |
If accept customized | Yes |
RoHS Compliance | Yes |
1.Dimensional Drawing(Unit:mm)
2. sequential interface
Competitive Advantages :
1.High Quality. RoHS ,SGS compliant. Every products are strictly checked by our quanlity control department before shipment.
2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it
could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3.Best Service. We provide best pre-sales and after-sales service to you
4.Custom Design,can specially meet your needs
5.Fast Delivery ,about 20 days for lead time
6.Samples available on request
7.Small MOQ orders can be negotiated
Different specifications lcd/lcm can be customized!
