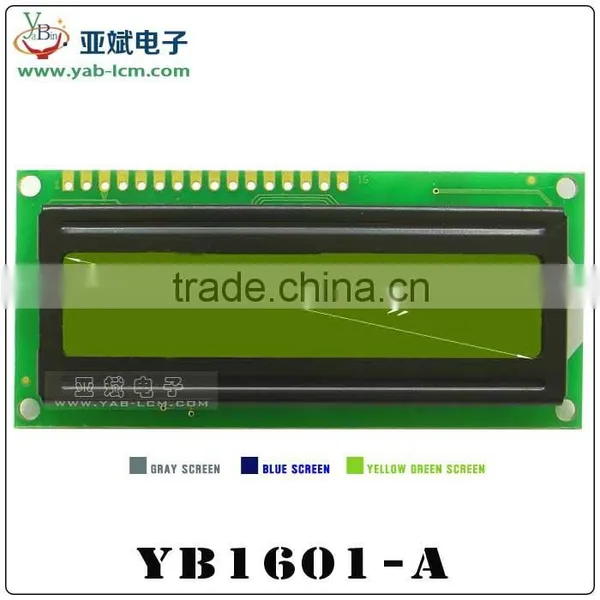

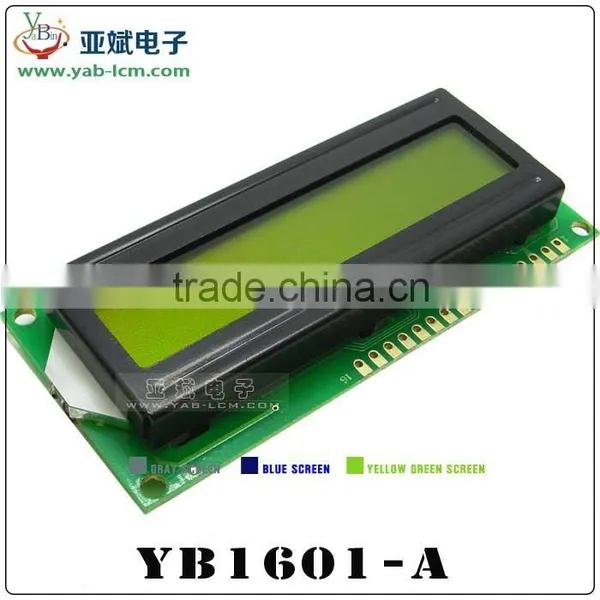

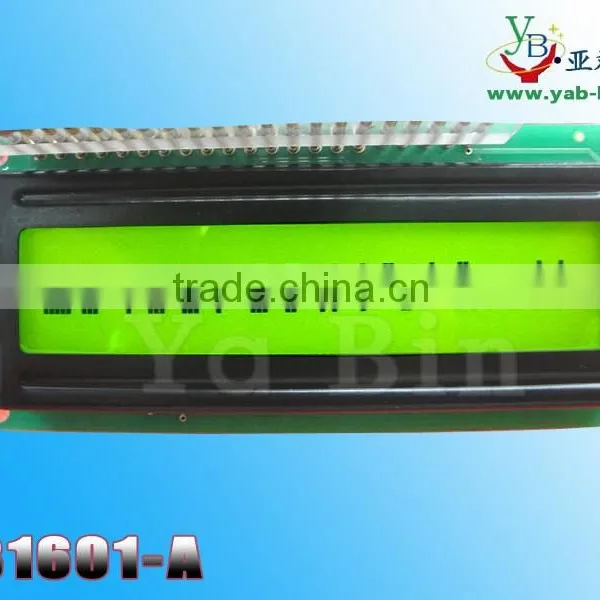

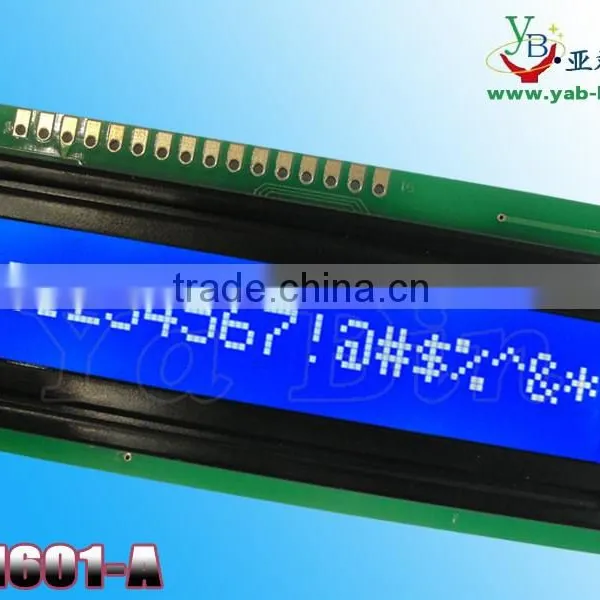

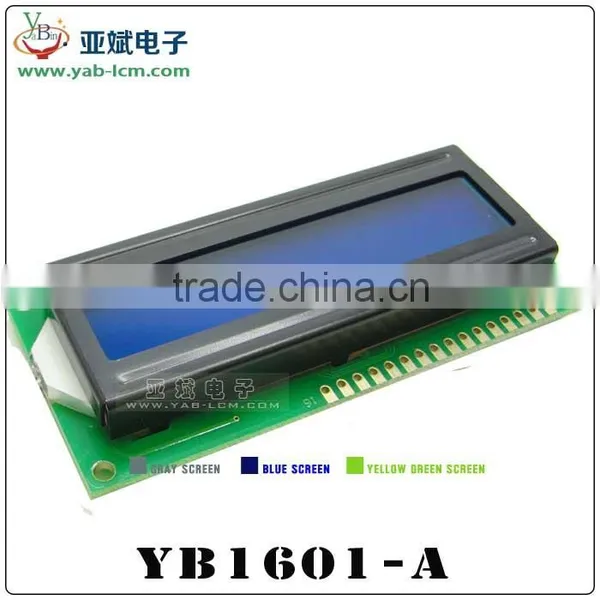

16x1 lcd display module (NO:YB1601A)
| Product Number | YB1601-A |
| Dot Matrix | 16×1 Lines |
| LCD Module Dimension | 80.0L×36.0W×12.5(max)H Unit:mm |
| Viewing Display Area | 64.5×13.8 mm |
| Character Size | 3.20×5.95 |
| Character Pitch | 3.75×6.50 |
| LCD Display Type | STN/FSTN |
| Viewing angle | 6 o'clock |
| Controller IC | SPLC780C/HS44780/KS0066 or Equivalent |
| IC Assembly Type | COB |
| Power Supply For lCM | DC +5.0V |
| Operating Temperature | -20℃to 60℃; |
| Storage Temperature | -30℃to 70℃; |
| LED Backlight Color | Blue /Yellow/ Green /Gray |
| Active Display Area | As customer request |
| RoHS Compliance | Yes |
| Is Customized | Yes |
2.Dimensional Drawing(Unit:mm)

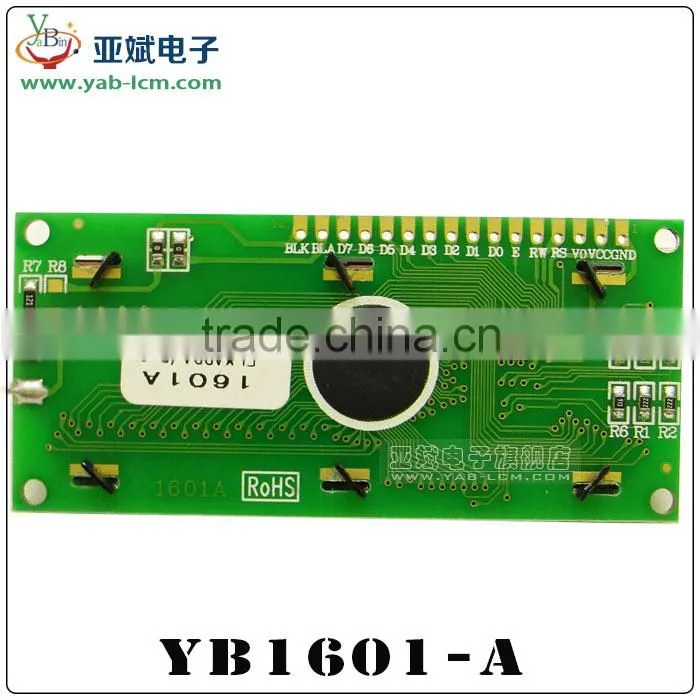

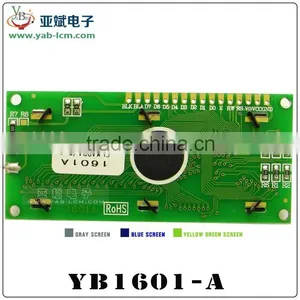

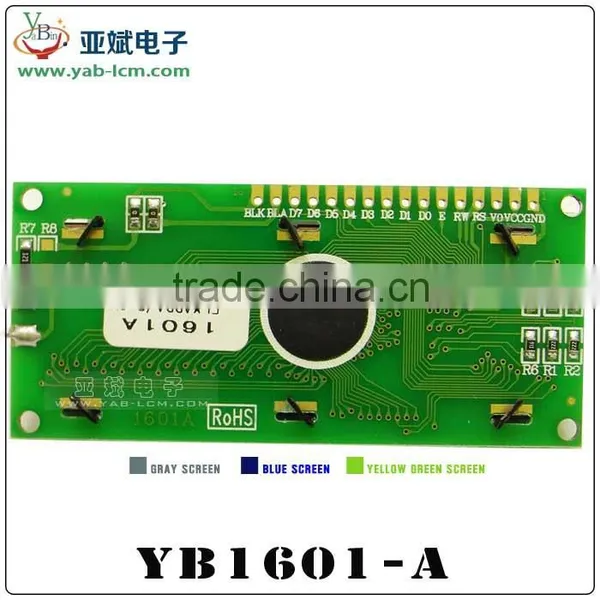

3.Pin Connection & Wiring Diagram
Competitive Advantages :
1.High Quality. RoHS ,SGS compliant. Every products are strictly checked by our quanlity control department before shipment.
2. Resonable price. A favorable factory price offer will be quoted on the basic of parameters which you provide to us, hope it
could show you our sincerity and bring a good long-term business relationship with your esteemed firm in near future.
3.Best Service. We provide best pre-sales and after-sales service to you
4.Custom Design,can specially meet your needs
5.Fast Delivery ,about 20 days for lead time
6.Samples available on request
7.Small MOQ orders can be negotiated
Different specifications lcd/lcm can be customized!
