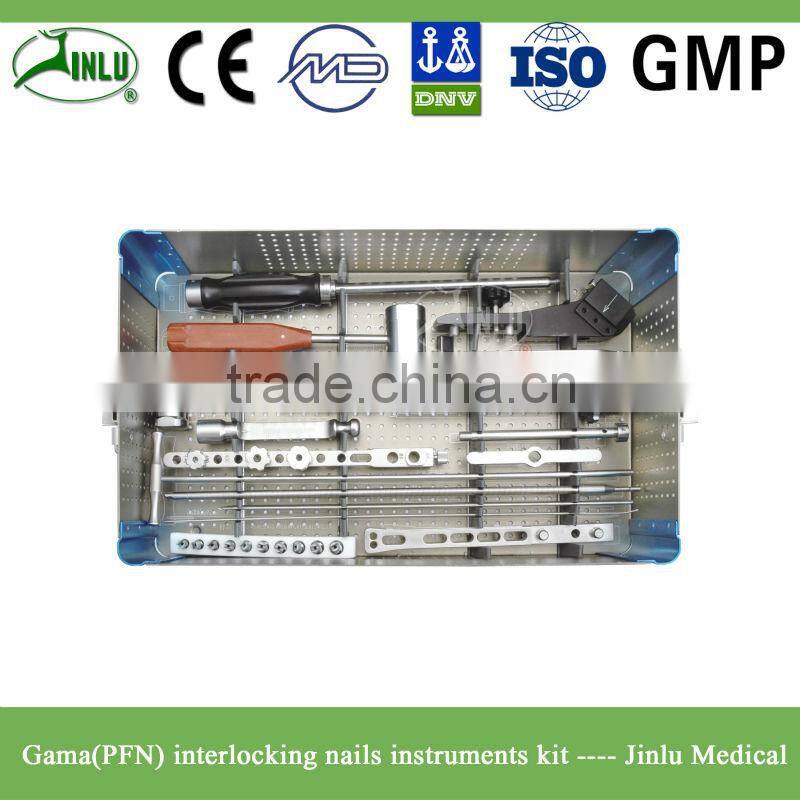

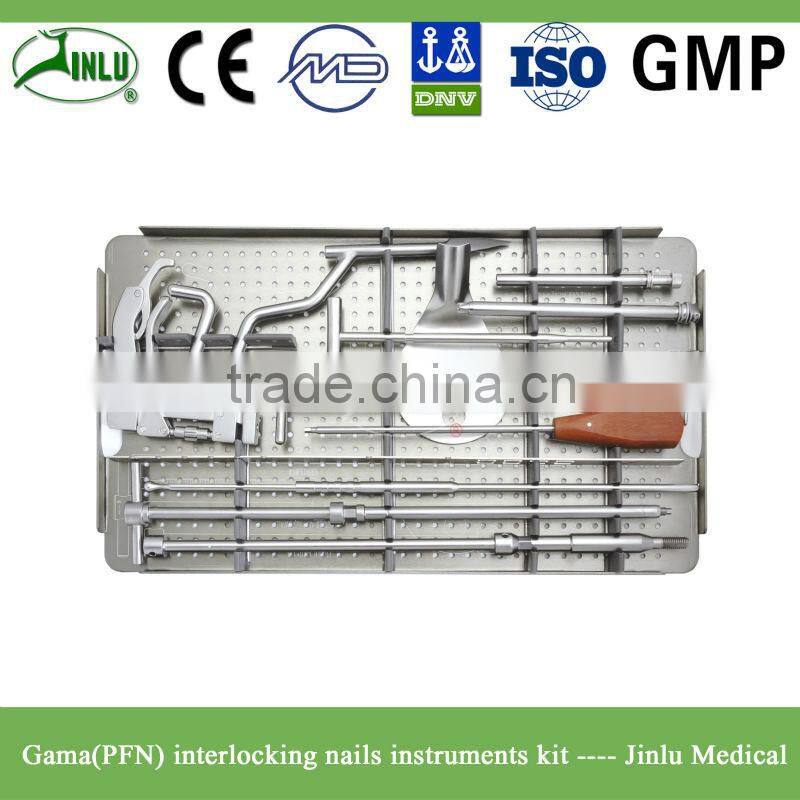

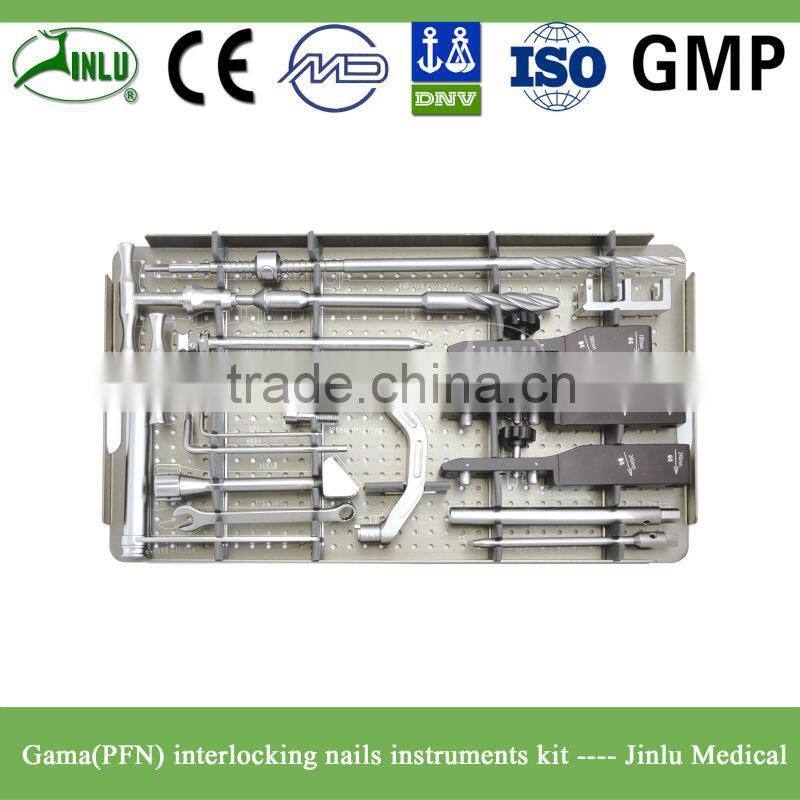

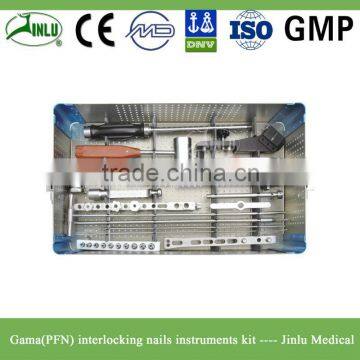

Gama PFNA Femur Intramedullary Nail Medical Surgical Instrument Case for Gama(PFNA) interlocking nails fixation.
| Gama(PFN) interlocking nails instrument kit II ID 1332 | ||||||
| ||||||
| Ref | Prod. | Size | Ref | Prod. | Size | |
| 001 | Template for development | 032 | Drill bit | Φ 4.3 | ||
| 002 | Guide sleeve | Φ 16.5 | 033 | Position stopper | Φ 4.3/SW3 | |
| 003 | Guide pin sleeve | Φ 16.5/3.2 | 034 | Small wrench | SW3/Φ 4 | |
| 004 | Handle w/quick clouping | 035 | Distal locking holes depth gauge | |||
| 005 | Proximal hollow drill bit | Φ 16.5/3.2 | 036 | Distal locking screw wrench | SW4 | |
| 006 | Hollow open tapper | 037 | Tail hook guide pin | Φ 2.8 | ||
| 007 | Protected plate for soft tissue | 038 | Tail hollow screw driver | Φ 2.8/SW6.5/SW11 | ||
| 008 | Handle w/quick clouping | 039 | Tail hollow sleeve/extension rod | SW11 | ||
| 009 | Connection bolt | M10*1.5/SW8 | 040 | Blade nail device | M7*1L/SW4.5 | |
| 010 | Universal wrench of connection bolt | SW8 | 041 | Sliding hammer | ||
| 011 | Main pin impactor | 042 | Nail remove rod | M10*1.5 | ||
| 012 | Open wrench | SW11 | 043 | Reduction rod(guide pin leading device) | ||
| 013 | Impactor hammer | 044 | Ball head guide pin | Φ 2.5/4 | ||
| 014 | Proximal guide bar | 045 | Guide pin control device soft expansion tool rod | |||
| 015 | guide sleeve | Φ 11.2 | 046 | Soft expansion tool rod | Φ 2.5/8 | |
| 016 | Support/compression nut | 047 | Soft expansion tool bit | Φ 8-13 | ||
| 017 | Guide sleeve for pins | Φ 11.2/3.2 | 048 | Long nail distal connection guide pin | ||
| 018 | Pins | Φ 3.2 | 049 | Long nail distal connection guide bar lock wheels | M8*1/SW5 | |
| 019 | Threaded pin | Φ 3.2*400 | 050 | Locking wheels spanner | ||
| 020 | Depth gauge | Φ 3.2 | 051 | Long nail distal guide bar | ||
| 021 | Proximal hollow position stopper | Φ 10.6/3.2 | 052 | Long nail distal guide pin lock wheels | M8*1/SW5 | |
| 022 | Position stopper | 053 | Long nail distal positioning frame | |||
| 023 | Lag screw impactor/locking screw driver | M7*1L/SW4.5/Φ 3.2 | 054 | Long nail distal positioning frame lock wheels | M6/SW5 | |
| 024 | Lag screw extracting connection rod | 055 | Position pipe | Φ 10/8.1 | ||
| 025 | Lag screw extracting wrench | 056 | Positioning stem bushing needle | Φ 8.1 | ||
| 026 | Distal guide bar | 180 | 057 | Positioning stem drilling sheath | Φ 8.1/5.2 | |
| 027 | Distal guide bar | 240 | 058 | Positioning drill rod | Φ 5.2 | |
| 028 | Distal 90° guide bar | 180/240 | 059 | Positioning stem flats drill | Φ 5.2 | |
| 029 | Distal locking pin sleeve | Φ 11/8.2 | 060 | Positioning rod | Φ 8.1/5.2 | |
| 030 | Distal locking pin drill sleeve | Φ 8.2/4.3 | 061 | Positioning card | ||
| 031 | Sleeve pin | Φ 4.3 | 062 | Instrument kit | ||
- Material: Stainless Steel(SUS420J2 or SUS630).
- Color: Nature.
- OEM service provided.
Thousands of orthopedic surgery instruments are for your choices. And we are able to produce those not shown in our catalogue under your drawings or samples.
Alluminum box with instruments, then with one inner carton and an outer carton, and finally sealed with polypropylene strap outside for shipping, to ensure it safe for delivery. The world best expresses such as FEDEX, DHL, TNT, EMS, UPS etc are chosen, at least one suits you.
- OEM SERVICES
- PRODUCT CERTIFICATIONS
- SAMPLES
- DOOR TO DOOR DELIVERY
- CUSTOMIZED PRODUCTS
- 5*12 HOURS CONSULTATION(8:00am~8:00pm Beijing time)
Question: Are you a manufacturer or trader, and how about your certification status?
Answer: We are manufacturer, certified CE, ISO 13485, ISO 9001:2008 and GMP. If you need some additonal, we can work on it.
Question: Can I buy products not shown but similar to your catalogue?
Answer: Of course you can, just send us pictures or samples. But this takes a little longer leadtime for delivery.
Question: Do you have stock for listed products, or they are newly produced?
Answer: Generally, we have stock for every listed products, which were produced monthly. But it depends on our sales condition. Better to ask our salesman for accurate inventory information.
Question: What kind of transportation of your delivery?
Answer: Usually we deliver under our customers’ requirements by door to door courier service such as FEDEX, DHL, EMS, UPS and TNT etc.
|
Our workshops are located in Zhangjiagang City, near Shanghai China. Jinlu was engaged in medical apparatus’ development, production and marketing since 1958.
Our products won the State Silver Medal, National Invention Prize and the brand “JINLU” is awarded as Famous Brand of Jiangsu Province.
You are welcome to visit our factories at site!
- Our Prizes
1. State large industrial enterprise by the National Bureau of Statistics in 2005
2. Re-contract and Trustworthy Enterprise by ZJG govenment
3. Member Unit of CAMDI
4. Jiangsu Famous Trademark (2010-2013)
5. Jiangsu Association for Medical Devices Industry Executive Director Unit
- Photo Galley
- Our shows around the world
1. 2010 Africa Health (South Africa)
2. 2010 Arab Health (Dubai)
3. 2010 MEDICA (Germany)
4. 2010 Mediconex Cairo Health (Egypt)
5. 2014 COA
6. 2014 Vietnam Medipharm (Vietnam)
- QMSC
| ISO13485:2003 | ISO9001:2008 |
| | |
| CE certification | |
| |
