220V/380V SunnyPower high quality home use blue 5kw solar system

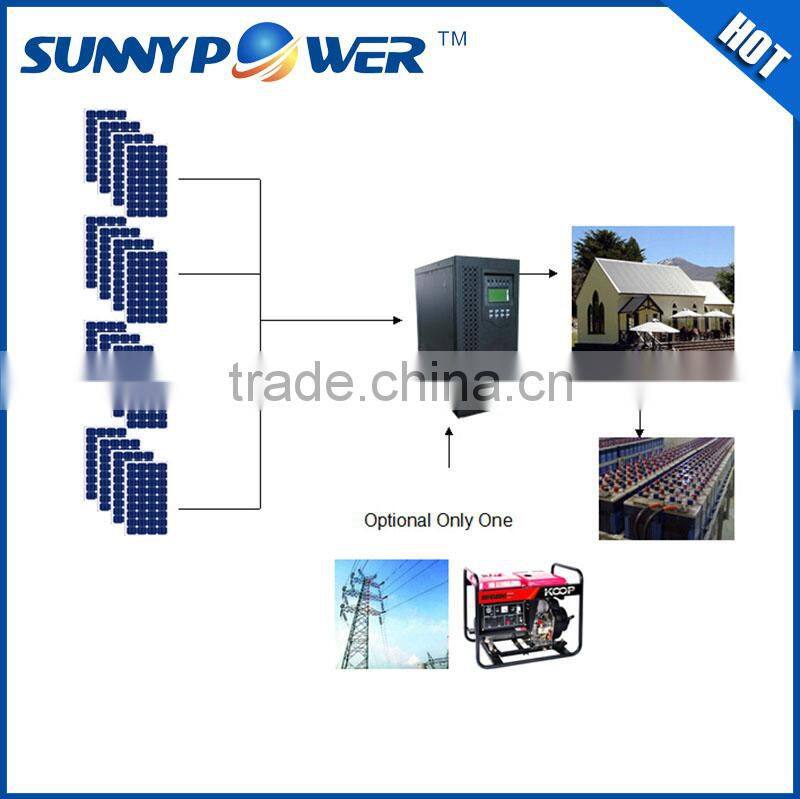

1. product picture

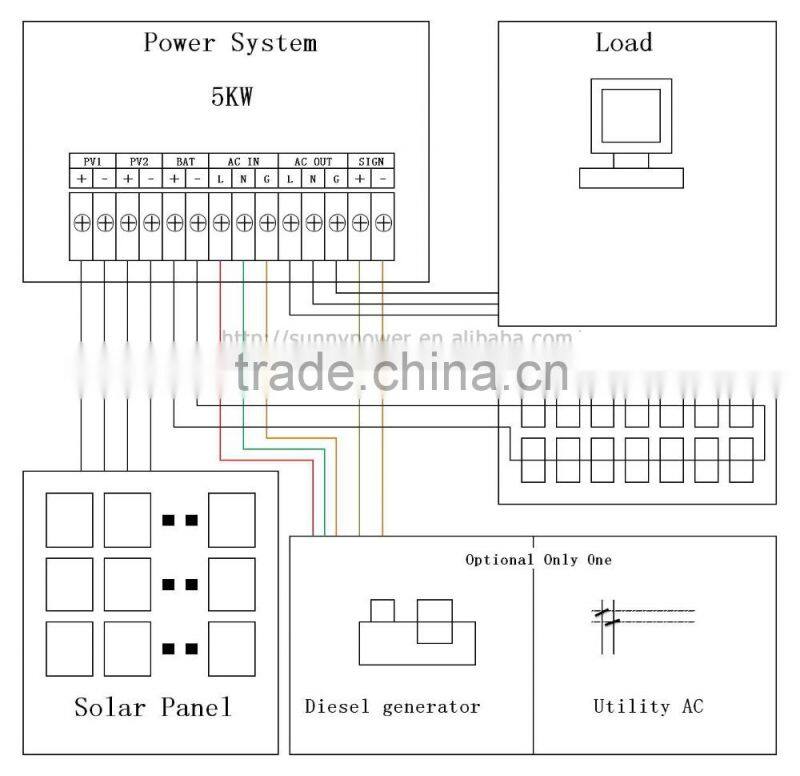

2. Design drawings
3.product introduction
| Technical data | ||
| Item No. | SPS-5KW | |
| Capacity | 5KW | |
| System voltage | 96VDC | |
| Daily consumption | 11KWH | |
| Industrial Frequency Inverter and Controller All In One | ||
| Inverter | Output wave | Pure sine wave |
| Output voltage | AC220V/380VAC±5% | |
| Output frequency | 50HZ/60HZ | |
| Output Waveform | THDIAC< 3 % | |
| Overload ability | 120%,30 seconds | |
| Efficiency(TYP.) | ≥92% | |
| Controller | Maximum solar power | Ppv=12KWp |
| Charge output voltage | 240V | |
| Stop charging | 290VDC | |
| Charge recovery | 264±6VDC | |
| Battery | 12V 260AH*8pcs Gel or OPZV battery | 24960WH |
Keep1rainy day and D.O.D 70% ,if rainy day little , battery capacity more, discharge less, extend life time | ||
| Solar panel | Pmax | 250W*20pcs |
| Vmp | 30V | |
| Imp | 8.3A | |
| Load reference: | ||
| SPS-5KW solar home system | ||
| loads name | specification | Daily consumption (WH) |
| lighting | energy saving light | 880 |
| Fan | ceiling fan | 800 |
| Computer | LCD displays | 2400 |
| printer | jet | 250 |
| fax machine | jet | 150 |
| refrigerator | 200L | 1200 |
| washing machine | 150 | |
| Air conditioner | 1P | 3000 |
| Color TV | 29inch | 1600 |
| pump | 200 | |
| TOTAL | 10630 | |
| Peak sunshine 4.5hr per day, keep 1 rainy day | ||
| 5KW solar system Solution | ||||
| Item | Specification | Q'ty(pcs or sets) | ||
5KW Solar Power System | solar panel 250W/30V(SPM-250PB204) with cables | 20 | ||
| 5KW power box,96VDC/220AC,with diesel engine switch | 1 | |||
| combiner box(lightning protection) with cables | 1 | |||
| battery steel bracket and Connect the copper/wire | 1 | |||
| solar panel steel alloy bracket( Ground installation ) | 1 | |||
Cables : solar combiner box to power box 40M battery to power box 3M | 1 | |||
| option | GEL battery 2V 350Ah | 48 | ||
| OPZV battery 2V 350Ah | 48 | |||
Warranty
- Solar panel: 5years for replacement. 25years lifespan (power not less than 90% in 10years and 80% in 25 years.
- Inverter and controller : 2years warranty. About 20 years lifespan.
- Battery: AGM 2years warranty,lifespan 5years . GEL 3years warranty,lifespan 8years.
- Brackets : 5years. Lifespan around 20years.
- Othe accessories: 1year

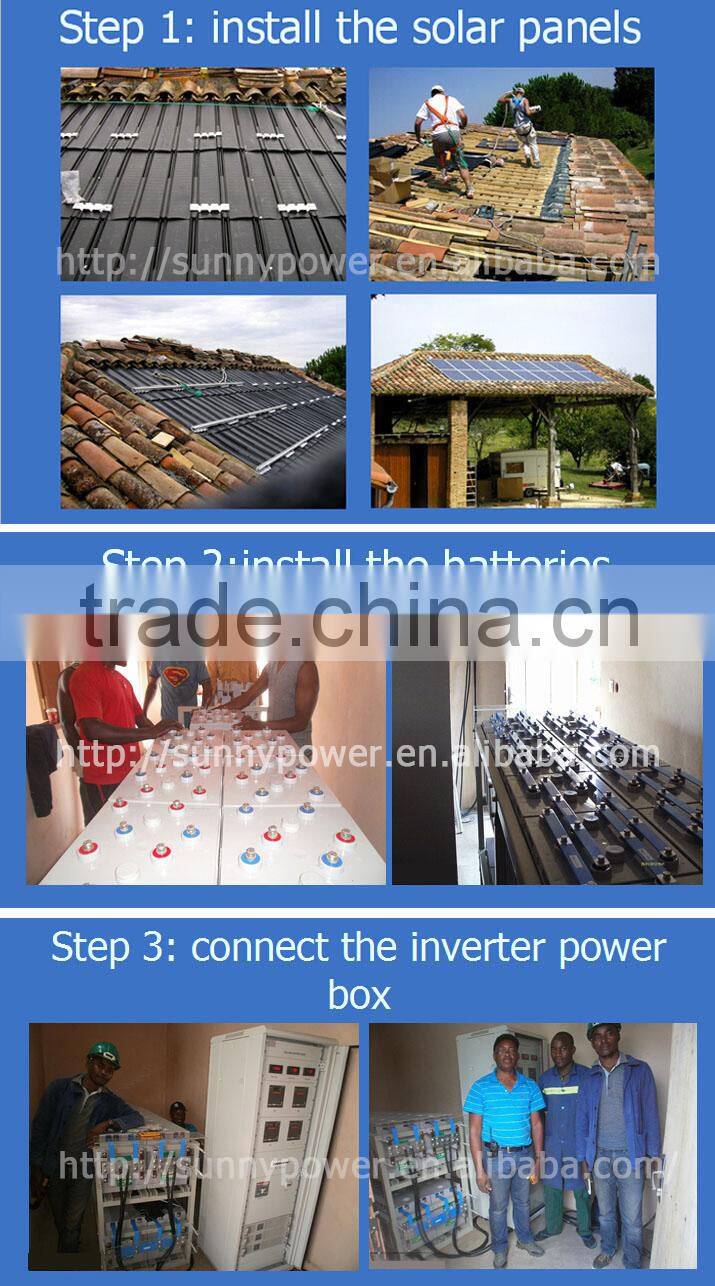

4.Install reference
5. More products pls click below
| |
| | | |
Company Information
FAQ
1. Q:What is your brand of the solar material solar cells?
A:We import the solar cells from TAIWAN MOTECH,the top 5 cells in the world,the
cells quality directly determine the quality of the solar advertising panel.
2. Q:Are u manufacture or trading company?
A:We are manufacture founded 10years.
3. Q:How many employees in your company?
A:We have about 100~150 employees,including office staff,R&D engineers,production line workers.
4. Q:What is ur certification?
A:Our product are approved by ISO, CE, VDE IEC, MCS, CSA-UL, CEC.
5. Q:Your main export market?
A:Our main market is: Asia,Africa,Mid-East, Oceania and North America
6. Q:What is ur main product?
A:Our main product: solar advertising panel, portable solar lighting system,intergrated solar home system 100W~1000W,off grid solar home system 1kw~5kw,micro solar power system 5kw~300kw,grid tie solar power system,solar street LED light system,solar fan,solar refrigerator,solar water pump and so on.
7. Q:What is your product technical support?
A:We makes progress in the field of new energy application, product R&D, technical innovation, system integration, etc. by responding to the national strategy of new energy development and adhering to “development & innovation “management concepts.Our
company partner Shanghai Academy of Sciences, Hubei Technology University and Huazhong Science & Technology University, to provide product and service for
clean energy.
More Solar Panel and Solar System Please Click below
portable solar lighting system 10w-120w
Integrated solar home system 100w-1000w
off-grid solar home system 1kw-5kw
micro solar power system 5kw-100kw
grid tied solar power system
mono solar panel
poly solar panel
