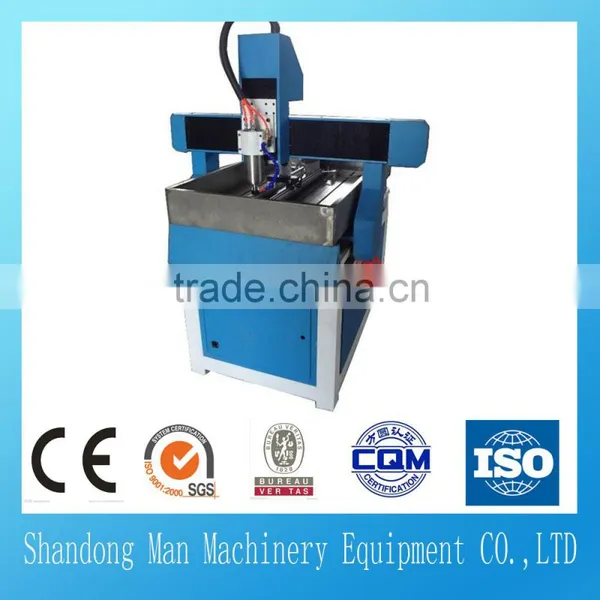

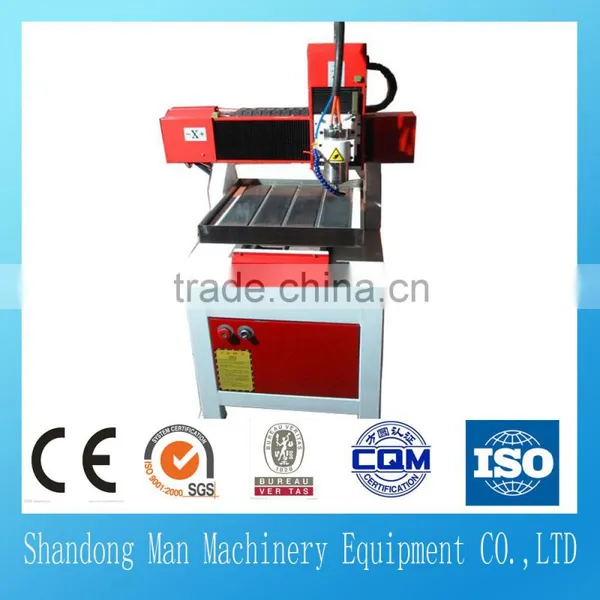

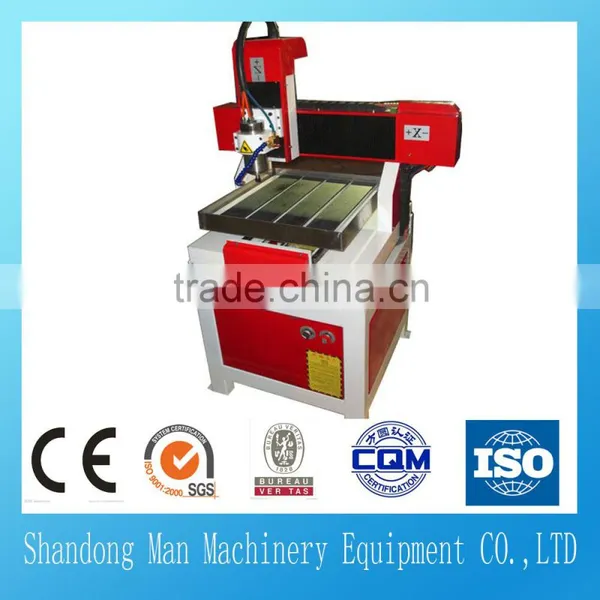

mini cnc pcb router/ cnc router desktop 3040/ 4060 from china maufacturer
Technical Parameters
Model |
3030 |
3636 |
6090 |
X-axis travel(mm) |
300mm |
360mm |
600mm |
Y-axis travel(mm) |
300mm |
360mm |
900mm |
Z-axis travel(mm) |
70mm |
80mm |
90mm |
Motion positioning accuracy |
±0.02/300mm |
||
Repositioning accuracy |
±0.04mm |
||
Mechanical Structure |
Cast iron lathe bed |
||
Table Structure |
Aluminum Section & high-density PVC |
||
Command accepted |
G code,u00*.mmg*.plt |
||
Max motion speed |
25.000mm/min |
||
Max working speed |
9,000mm/min |
||
Spindle power (kw) |
1.5KW-ER11, Inverter-driven spindle motor cooled by water |
||
Operating System |
NC-Studio PC Control Operating System Option: Mach3 PC Operating Control System DSP off-line Control System with USB interface, 128 M flash Memory |
||
Software |
Type3 copy software with tutorial video for free Ucancam V9, ArtCAM software and so on |
||
Drive type |
Stepper motor with Leadshine drive |
||
Drive mechanism |
German Imported ballscrew for X,Y, Z -axis |
||
Z-high setting |
Auto-Z Origin Tool High Sensor |
||
XYZ Guide Rail |
XYZ Round Shaft for transmission as standard configuration Option: Square Linear Rail for Y, round Rail for X,Z |
||
Power |
AC220/50HZ |
||

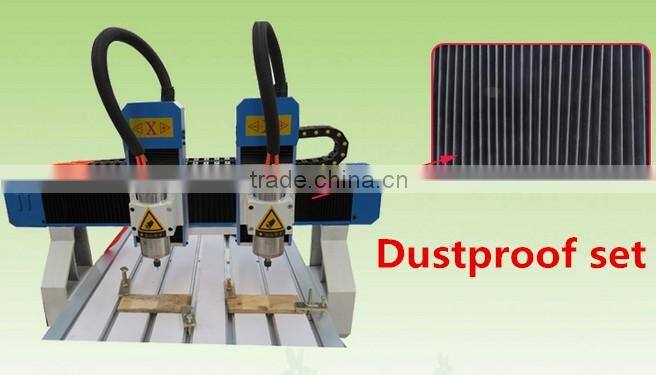

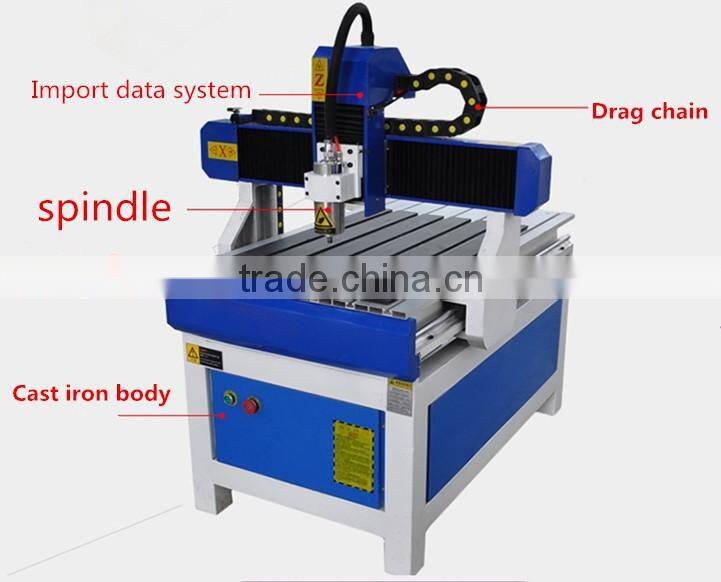

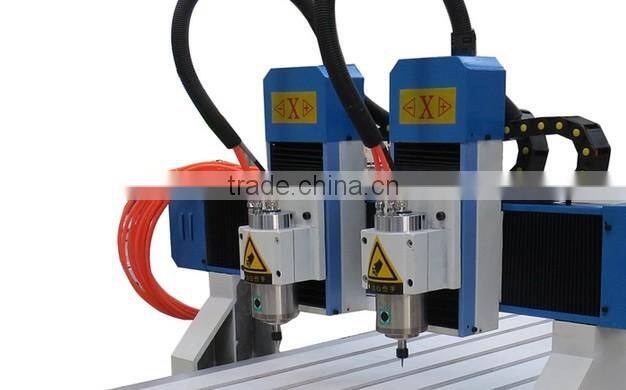

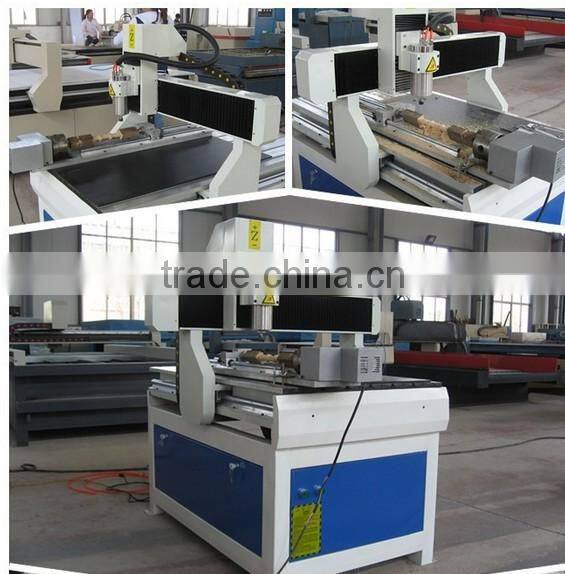

Main parts
Sample
Packaging & Shipping
Packing:
1: Plastic film + plywood case ;
Accessories and manual book are putted in handbag
2: According customer's requirement
Shipping:
By express (Fedex, DHL,TNT, UPS etc.) / by sea
Our services
1. our technicans will provide on-site service to customers in china.
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction

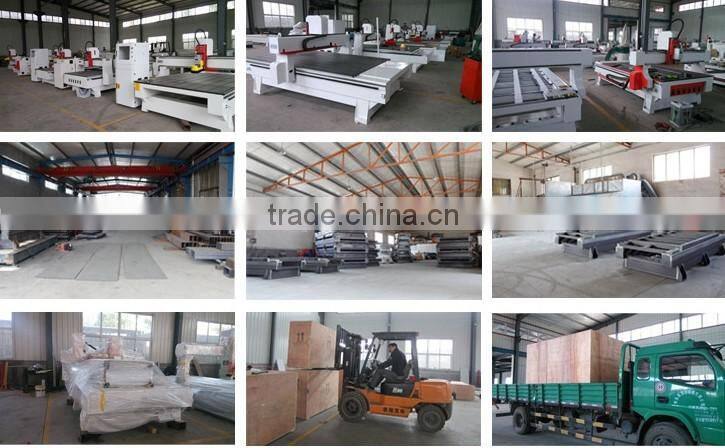

Company Information
Shandong Mann Machinery Co. Ltd. is CNC equipment manufacturers a set design, production and sales. High quality products, professional sales and after-sales team, won the domestic and foreign customers alike. Company main products for CNC engraving machine, laser engraving machine and other general machinery. Suitable for wood, advertising, stone, metal, crafts and other materials, involving a number of industries. Machines are exported to the United States, Germany, Canada, Australia, Russia, Southeast Asia and other countries and regions, more than 70. The company to the quality of survival, to serve the development of high quality is our eternal pursuit. Advanced manufacturing technology, large-scale production, excellent product quality, professional user training, perfect after-sales service, is to ensure that the basis of user satisfaction.
