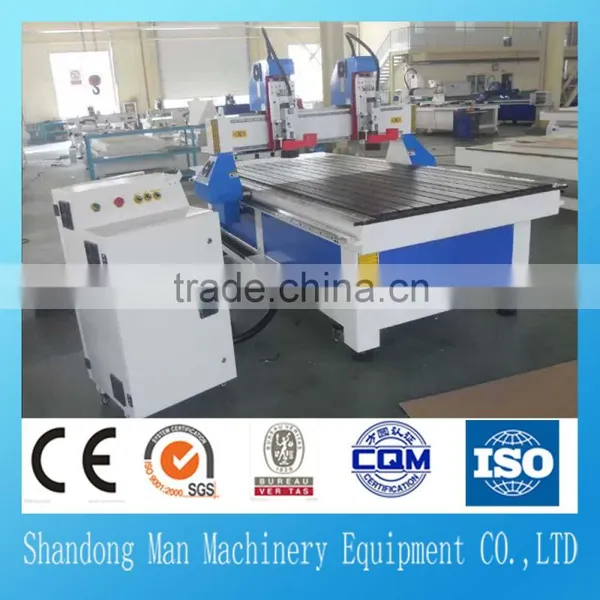

1325 cnc router taiwan syntec cnc router /HSD spindle/servo motor
Product Description
NO. |
Items |
|
Parameters |
|
1 |
Working Area |
XYZ |
1300*2500*200mm |
|
3 |
Table Type |
|
T-Slot Vacuum table |
|
4 |
Accuracy |
Working Accuracy |
±0.03/300mm |
|
Repositioning Accuracy |
±0.02/200mm |
|||
6 |
Drive system |
X,Y with Rack and Pinion Z with lead screw |
||
7 |
Speed |
MAX Traveling Speed |
30000mm/min |
|
MAX Working Speed |
15000mm/min |
|||
8 |
Spindle |
Spindle Power |
3.0kw air cooling spindle |
|
Spindle Speed |
0-18000r/min Stepper |
|||
10 |
Drive and Motor |
|||
12 |
Working Voltage |
|
AC380V/50Hz |
|
14 |
Operating System |
|
DSP |
|
15 |
Net Weight/Gross Weight |
|
1500 KG/1800 KG |
|
16 |
Packing size |
|
3250*1950*1650mm |
|

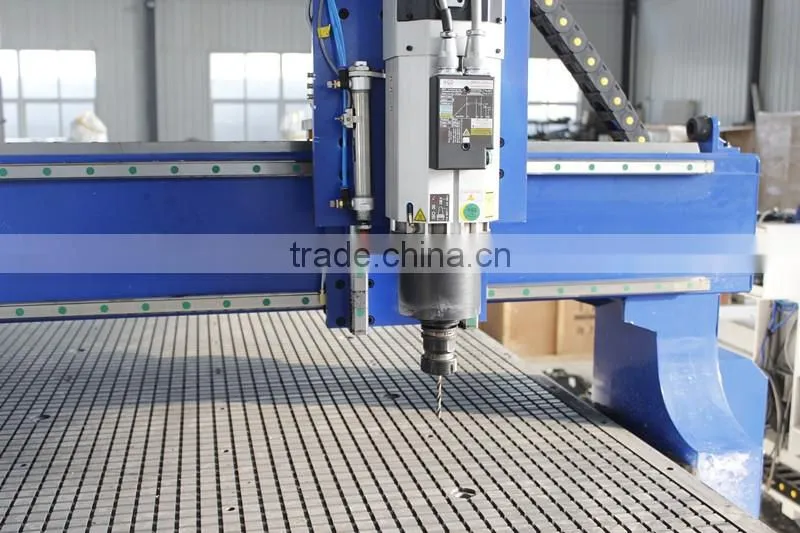

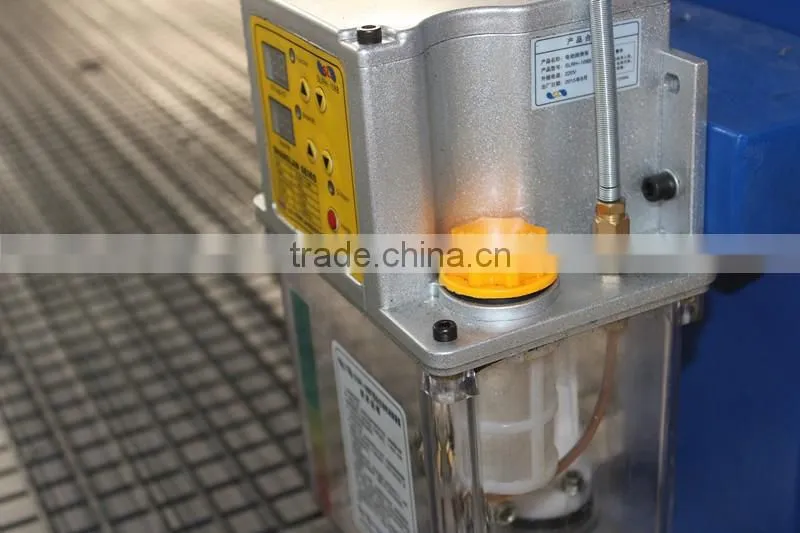

1325 cnc router Main parts
taiwan syntec cnc router /HSD spindle/servo motor
Sample
about our services
1. our technicans will provide on-site service to customers in china.
2. within the warranty period and the machine parts damage under normal using condition, we will offer new ones for free for replacement
3. We will offer software upgrade for free for life
4. after the expiry of warranty, we can renewal of the contract, which can enjoy the same service that during the waranty period
5. our company will research the staffs service attitude aperiodically to improve the service satisfaction
Packaging & Shipping
Packing:
1: Plastic film + plywood case ;
Accessories and manual book are putted in handbag
2: According customer's requirement
Shipping:
By express (Fedex, DHL,TNT, UPS etc.) / by sea

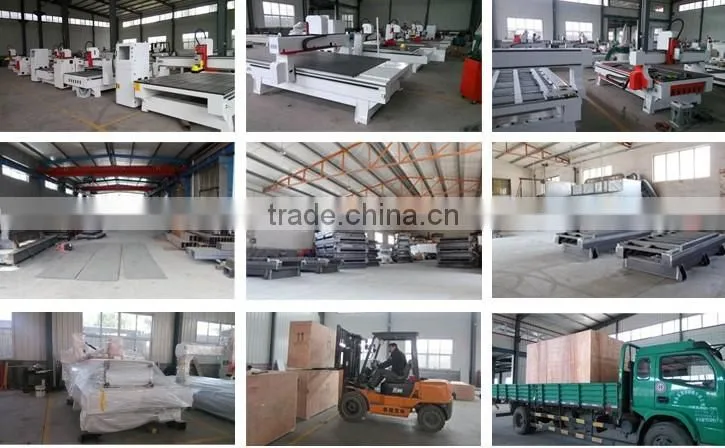

Company Information
Shandong Mann Machinery Co. Ltd. is CNC equipment manufacturers a set design, production and sales. High quality products, professional sales and after-sales team, won the domestic and foreign customers alike. Company main products for CNC engraving machine, laser engraving machine and other general machinery. Suitable for wood, advertising, stone, metal, crafts and other materials, involving a number of industries. Machines are exported to the United States, Germany, Canada, Australia, Russia, Southeast Asia and other countries and regions, more than 70. The company to the quality of survival, to serve the development of high quality is our eternal pursuit. Advanced manufacturing technology, large-scale production, excellent product quality, professional user training, perfect after-sales service, is to ensure that the basis of user satisfaction.
FAQ
Q1.how to get the most suitable machine and best price
please tell the material you want to working on ?
How to working on it ? Engraving ? Cutting ? Or other ?
What’s the MAX size of these material ?( length ? Width ? Thickness ?)
Q2: Do you have the manual of machine.
Yes,we have
