Specifications
red led dsplay with printerAutomatic zero tracking
with weighing function,ideal for platform and floor scales.
as professional factory in this market for decades,we have established mutually beneficial relationship with many other companies,like,zemic,yaohua,keli,caisun,ect.very often,we have intergrated their parts to expand our products line,as a result,some of their indicators slao available in our company:

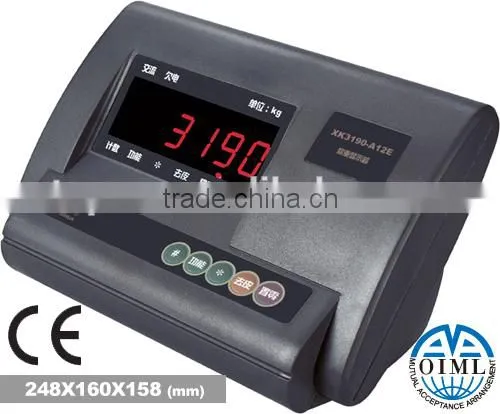

XK3190-12a
1. 10 V/m immunity to radiated electromagnetic fields
2. digit red LED
3. Drive up to 4 x 350Ω or 8 x 700Ω load cell
4. 1,000,000 internal ADC counts
5. Manual and automatic weight accumulation
6. Automatic zero tracking
7. Low battery warning

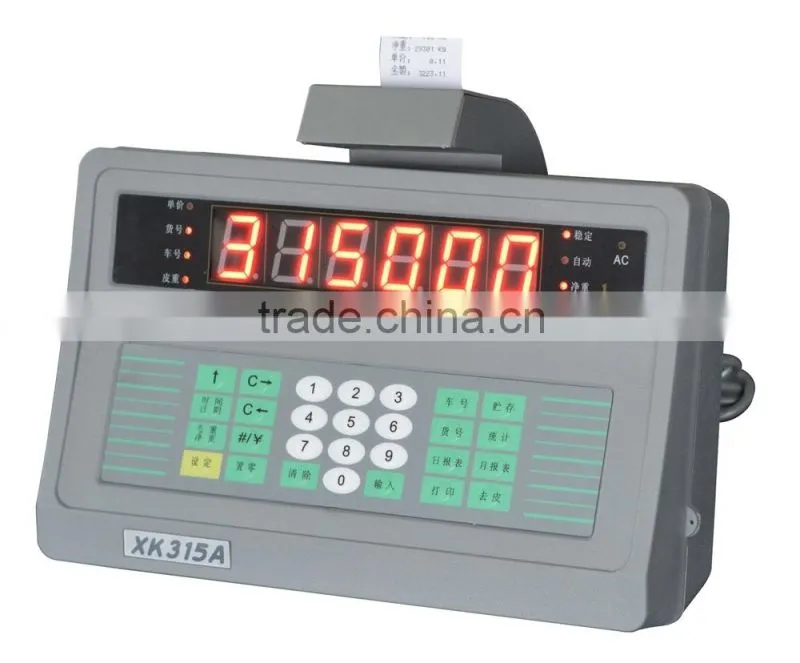

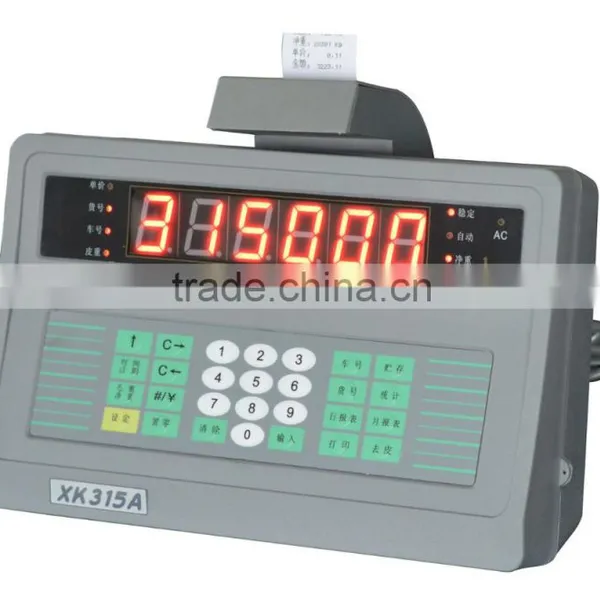

XK315A6
Features
1,Operating temperature: 0℃ to 40℃
2,Storage temperature: -25℃ to 55℃
3,Relative humidity:≤ 85% non–condensing
4,Drive up 8X350Ω or 16X700Ω load cell
5,Indicator can be replaced without recalibration 6,Four-point calibration
7,Low battery indication and automatic power-off
8,Store and recall up to 10 unit prices 9,Lock display when overload is greater 130%FS
10,Accuracy can be increased ten times 11,Real-time chock with programmable date and lock to stop work
|
12,Store and recall up to 200 vehicle numbers
and tares
13,Store and recall up to 1000 weighing records and statistical reports
14,Classify statistics by vehicle and goods number
15,Classify statistics by daily and monthly reports
16,Selectable printing of fill-in form
17,Parallel interface to external 24-pin dot matrix printer
18,RS232 serial interface 19,Optional RS485 serial interface 20,Selectable kg and t |
CX Display
CX displays series large screen possess high luminance, long working life, good stability and beautiful appearance. It suits various occasions,such as indoors, outdoors, day or night. The variety has the following four specifications: 8", 5", 3.2", 3"capable of matching with 8142, 8803A, T3800, XK3190, CAS5010, HT9800, EDI-800, XK315, series weighing instruments. 6Circuit board sets for vesual electronic hook scales. The circuit board sets for visual electronic gook scales. They possess good stability and fast speed of stabilizing and have been broadly used in weighing instrument industry.
Model |
Digit High(mm) |
Dimension(mm) |
Display Type |
Remarks |
CX8M |
200 |
900×320×78 |
Segment |
Five and a half digit |
CX5M(Luxury) |
130 |
780×400×58 |
Segment |
Five and a half digit |
CX5M(Stainless Steel) |
130 |
780×270×58 |
Segment |
Six digit |
CX5M(Universal) |
130 |
780×270×58 |
Segment |
Five and a half digit |
CX5M(Economy) |
130 |
670×270×58 |
Segment |
Five digit |
CX5M(Stainless Steel) |
130 |
670×270×58 |
Segment |
Five digit |
CX3M |
82 |
430×180×50 |
Segment |
Five and a half digit |
CX3M(Stainless Steel) |
82 |
430×180×50 |
Segment |
Six digit |
CX3M(rain block) |
82 |
480×250×100 |
Segment |
Five and a half digit |
CX3.2M(Plastic) |
82 |
350×180×30 |
Segment |
Five and a half digit |
CX1.2M(Stainless Steel) |
30.5 |
270×120×30 |
Segment |
Six double-sided digit |
