digital weighing indicator

Specifications

with red led display.
user friendly panel.
energy efficient.
with weighing function,ideal for platform and floor scales.

     our indicators suitabe for bench scales,floor scales,presented as all kind of forms in the followings:

tp-a1series(four items,all with same functions,ideal for bench/floo scales):



Features 1.Operating temperature: 0℃ to 40℃ 2.Storage temperature: -25℃ to 55℃ 3.Relative humidity:≤ 85% non–condensing 4.30 hours of full charge battery operation 5.Drive up 4X350Ω or 8X700Ω load cell 6.Manual/Automatic accumulation 7.Programmable zero tracking 8.Programmable digital filter 9.Selectable kg and lb 10.RS-232 serial interface 11.Accuracy can be increased ten times 12.Animal weighing 13.Hold function 14.Counting function 15.Printer

Optional RS485 serial interface Two set point function Four set point function 4-20mA Analog current output function Mechanical scale Wireless connection Blue tooth connection

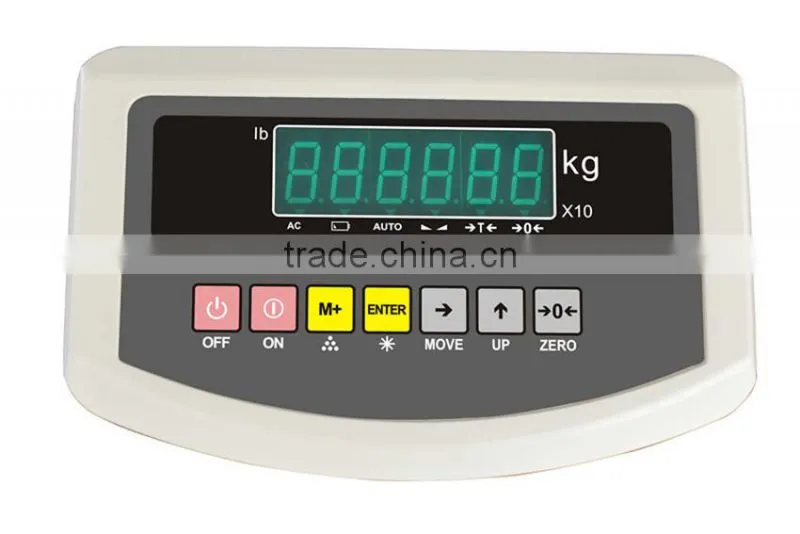

1--0.8 inch red led display:

2--1.2 inch red led display:

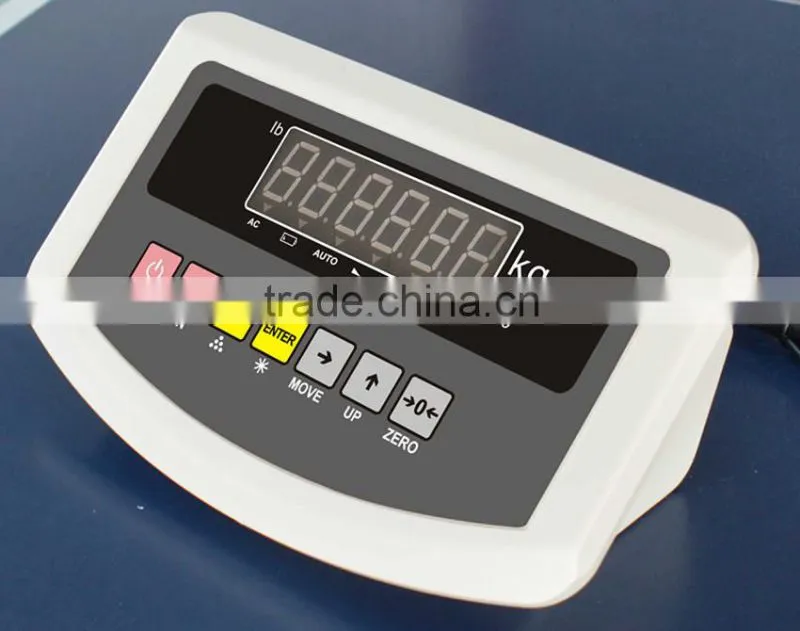

3--0.8 inch green led display:

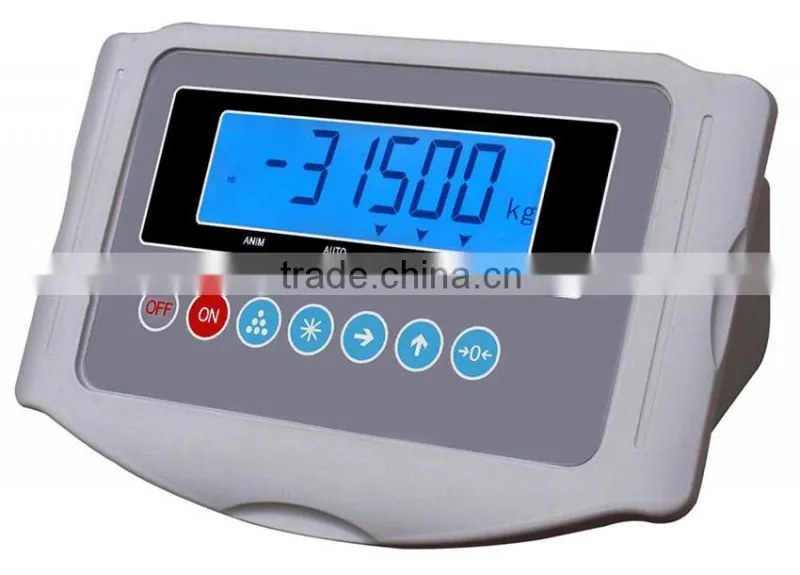

4--lcd display with back light:

please contact for the detail parameters and the how to of the operations.



tp-ew(for bench/floor scales):

1.General Specification

(1)Power supply:AC220/110V±10%,50~60HZ,built-in 6V/4AH lead acid accumulator.

(2)Use temperature and humidity:-5°C-40°C,<90%RS.

(3)Storage Temperature:-10°C~40°C.

(4)Power Consumpton:9W.

2.Technical Parameters:

(1)5V sensor power supply voltage:it can connect eight resistive strain gauge sensors with impendence reaching 350Ω.

(2)Non Linear Error:0.01%F.S.

(3)Interal Resolution:1/1,000,000.

(4)Display Degree:100~60 degree.

please contact for the detail parameters and the how to of the operations.

tp-cw(for bench/floor scales):

1.General Specification

(1)Power supply:AC220/110V±10%,50~60HZ,built-in 6V/3.2AH lead acid accumulator.

(2)Use temperature and humidity:-5°C-40°C,<90%RS.

(3)Storage Temperature:-10°C~40°C.

(4)Power Consumpton:9W.

2.Technical Parameters:

(1)5V sensor power supply voltage:it can connect eight resistive strain gauge sensors with impendence reaching 350Ω.

(2)Non Linear Error:0.01%F.S.

(3)Interal Resolution:1/1,000,000.

(4)Display Degree:100~60 degree.

please contact for the detail parameters and the how to of the operations.





tp-iw(for bench/floor scales):



Technical data



1.Input sensitivity:above 0.4μV/D

2.Adjustable sero range:-1mV~5mV

3.Max.sensor input voltage:15mV

4.Sensor excitatio voltage:DC5V±5%

5.Zero temperature coefficient:≤8ppm°C

6.SPAN temperature coeffiient:≤8ppm°C

7.Nonlinearity:≤0.01%F.S.

8.Input signal:±0.3μVpp

9.Input resistance:above 10MΩ

10.A/D conversion:by means of Δ∑

11.A/D conversion:max.24 bit

12.A/D conversion speed:15 tims/second

13.Sensor sesitivity:1mV/V~3mV/V

14.Effective net signal:≥3mV



please contact for the detail parameters and the how to of the operations.



tp-cj(for bench/floor scales):

Technical data

1.Input sensitivity:above 0.4μV/D

2.Adjustable sero range:-1mV~5mV

3.Max.sensor input voltage:15mV

4.Sensor excitatio voltage:DC5V±5%

5.Zero temperature coefficient:≤8ppm°C

6.SPAN temperature coeffiient:≤8ppm°C

7.Nonlinearity:≤0.01%F.S.

8.Input signal:±0.3μVpp

9.Input resistance:above 10MΩ

10.A/D conversion:by means of Δ∑

11.A/D conversion:max.24 bit

12.A/D conversion speed:15 tims/second

13.Sensor sesitivity:1mV/V~3mV/V

14.Effective net signal:≥3mV

please contact for the detail parameters and the how to of the operations.



tp-ca(for bench/floor scales):

Technical data

1.Input sensitivity:above 0.4μV/D

2.Adjustable sero range:-1mV~5mV

3.Max.sensor input voltage:15mV

4.Sensor excitatio voltage:DC5V±5%

5.Zero temperature coefficient:≤8ppm°C

6.SPAN temperature coeffiient:≤8ppm°C

7.Nonlinearity:≤0.01%F.S.

8.Input signal:±0.3μVpp

9.Input resistance:above 10MΩ

10.A/D conversion:by means of Δ∑

11.A/D conversion:max.24 bit

12.A/D conversion speed:15 tims/second

13.Sensor sesitivity:1mV/V~3mV/V

14.Effective net signal:≥3mV

please contact for the detail parameters and the how to of the operations.



tp-2(for bench/floor scales):

1.General Specification

(1)Power supply:AC220/110V±10%,50~60HZ,built-in 6V/4AH lead acid accumulator.

(2)Use temperature and humidity:-5°C-40°C,<90%RS.

(3)Storage Temperature:-10°C~40°C.

(4)Power Consumpton:9W.

2.Technical Parameters:

(1)5V sensor power supply voltage:it can connect eight resistive strain gauge sensors with impendence reaching 350Ω.

(2)Non Linear Error:0.01%F.S.

(3)Interal Resolution:1/1,000,000.

(4)Display Degree:100~60 degree.

please contact for the detail parameters and the how to of the operations.

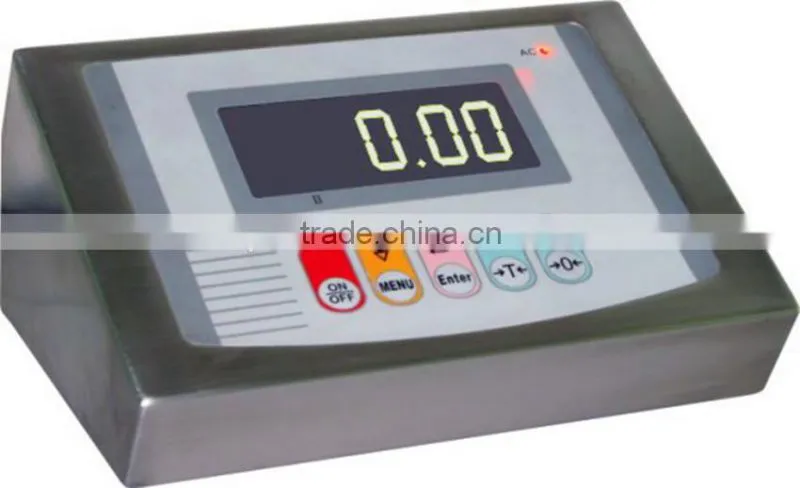

tp-3(staibless steel housing,ip66 approved,for bench/floor scales):

1.General Specification

(1)Power supply:AC220/110V±10%,50~60HZ,built-in 6V/4AH lead acid accumulator.

(2)Use temperature and humidity:-5°C-40°C,<90%RS.

(3)Storage Temperature:-10°C~40°C.

(4)Power Consumpton:9W.

2.Technical Parameters:

(1)5V sensor power supply voltage:it can connect eight resistive strain gauge sensors with impendence reaching 350Ω.

(2)Non Linear Error:0.01%F.S.

(3)Interal Resolution:1/1,000,000.

(4)Display Degree:100~60 degree.

please contact for the detail parameters and the how to of the operations.

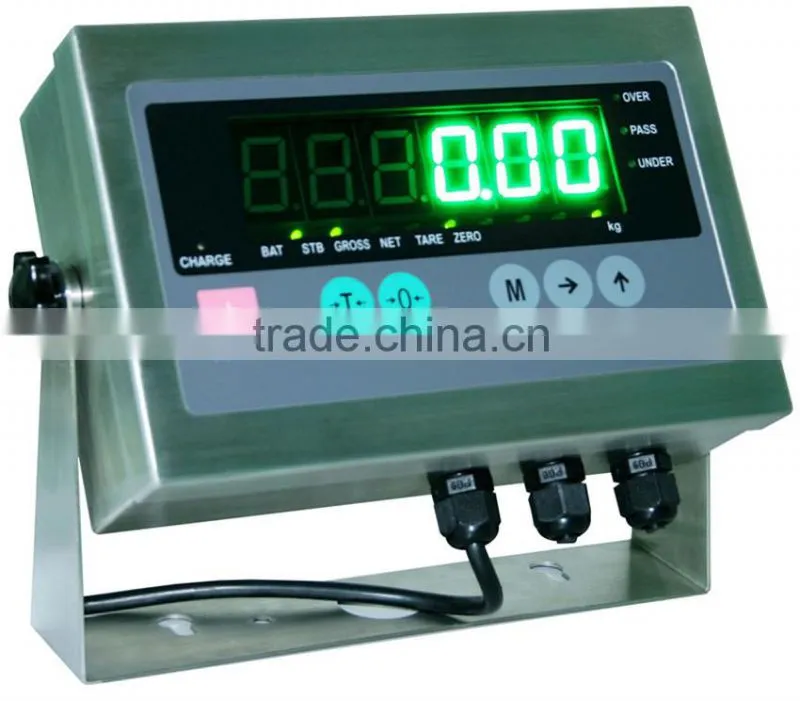

tp-5(stainless steel housing,ip67 approved,for bench/floor scales):



Overview:



TP-5 is a microprocessor chip good for all kinds of weighing application for Bench Scale , Floor Scale and Platform Scale . It is very high accuracy and use re-charge battery operate up to 120hrs . It is a new design for weighing indicator with build–in series output RS-232c.



Features :



1.Accuracy class:C-III.

2.A/D conversion speed:20 times/second.

3.Internal resolution 1/ 300,000.

4.Display resolution :1/1000~1/30,000 division.

5.Non linearity:<0.016%F.S.

6.Rated Output:0~20mV.

7.Excitation Voltage:+DC5V,Analog (up to 4 x 350Ω load cell) .

8.Power supply:DC6V/4Ah re-charge battery or AC230V power supply.

9.Display:6 digits LED display and height 25mm LED.

10.LED indicate :G.W., N.W., tare, zero, ct, oz, lb, kg.

11.Power consumption:1W.

12.Operating temperature:0 ~ 40 .

13.Humidity:≤ 85%.

 please contact for the detail parameters and the how to of the operations.

tp-6(stainless steel housing,with same function of our tp-ew,for bench/floor scales):
