U Pipe Solar Collector(WU)

Name: U Pipe Solar Collector(WU)
Brand: WKSOLAR
SKU: 117955705
Availability: InStock

US$ 100 - 250 MOQ: 1 Set

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

WKSOLAR

Model Number:

Wuxi Wankang Solar Water Heater Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name WKSOLAR

Model Number WU

Type Pressurized

Application Water Heater

Pipe Material Copper

Evacuated U Solar Collector(WU)

Operation:

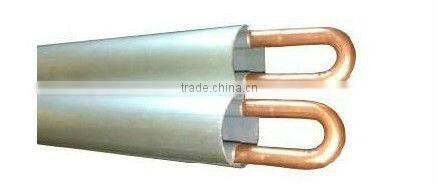

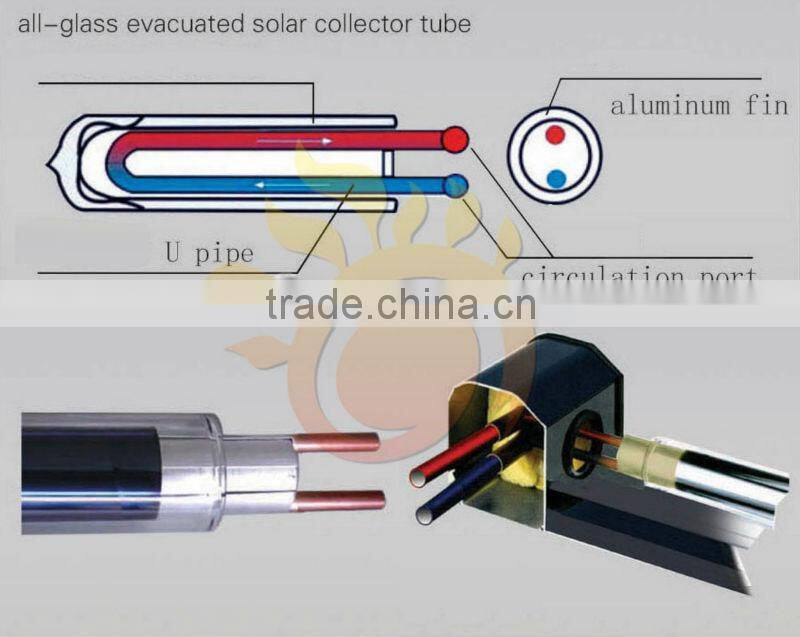

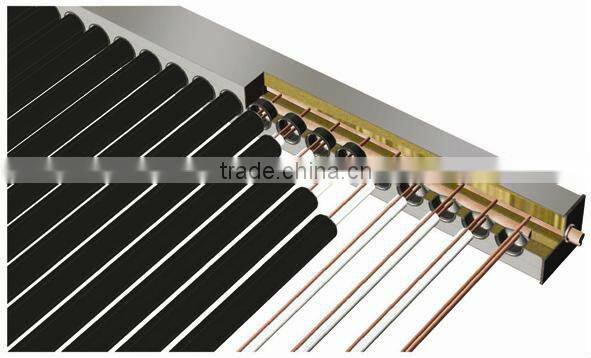

1. U pipe solar collector composes of metal U pipe , metal slice, insulation layer, vacuum tub and collector frame .

2. water circulates due to water teperature difference between the two sides of U pipe.

3. Solar collector is separated with tank by transmitter inside U pipe

4. Solar radiation converted into heat energy in the water tank by heat exchanger.

Production Model	WU-58*1800	WU-58*1800
Numbers of tube(pcs)	12	15
Absorber area approx(m2)	0.96	1.2
Gross size(m)	20001000130	20001240130
Work pressure	6-8bar
Test pressure	8bar
Heat transfer fluid	Anti-freeze Fluid(Water-Glycol)
ing temperature(°C)	220
Medium	Pure water
Start-up Temperature of heat pipe	≤30°C
Warranty	5years

Material Detail

Production Model	WU-58*1800
Manifold material and thickness	Aluminum alloy,thickness 2.0mm
Header pipe material and thickness	Diameter:32mm,thickness 1.0mm copper pipe
Heat pipe material and thickness	Diameter:14mm,thickness 0.5mm copper pipe
Inslation	Rock wool
Frame material and thickness	Aluminum alloy,thickness 2.0mm
collector mounting	flat roof/slope roof
Inlet and Outlet	1/2" OR 3/4"
Hail resistance	25mm
Coating of vacuum tube and size	SS-C/CU 471500/581800
Flow type	Heat pipe
