Home Using Heat Pipe Solar Collector(WCD-LH)

Specifications

Home Using Heat Pipe Solar Collector(WCD-LH)
1.CE
2.Heat pipe series
3.No water enter into tube

Home Using Heat Pipe Solar Collector(WCD-LH):



Product Parameter:

Manifold material and thickness	aluminum alloy-2.0mm
Header pipe material and thickness	Diameter:32mm, thickness 1.0mm copper pipe
Heat pipe material and thickness	Diameter:14mm, thickness 0.5mm copper pipe
Insulation	Polyurethane foam 50mm or Rock wool
Test pressure and work pressure	Test pressure 9Bar, work pressure 6bar to 8bar
Frame material and thickness	Aluminum alloy-2.0mm
Collector mounting	Flat roof/slope roof
Inlet and outlet	1/2’’ OR 3/4’’
Hail resistance:	25mm



Working Principle:





An active, closed-loop system heats a heat-transfer fluid (such as water or antifreeze) in the collector and uses a heat exchanger to transfer the heat to the household water.



Operation of the system is very simple:



1.Solar Absorption: Solar radiation is absorbed by the evacuated tubes and converted into heat.

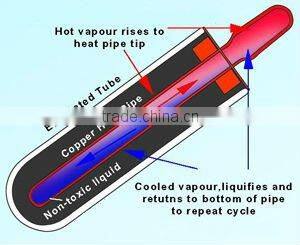

2.Solar Heat Transfer: Heat pipes conduct the heat from within the solar tube up to the header.

3.Solar Energy Storage: Water is circulated through the header, via intermittent pump cycling. Each time the water circulates through the header the temperatures is raised by 5-10oC / 9-18oF. Throughout the day, the water in the storage tank is gradually heated.



Features:

1.Internationally certified product.

2.Reliable,efficient,twin-glass evacuated tubes with copper heat pipes for rapid heat transfer,no water enter into the tube,can be used in cold area.

3.Easy plug-in installation and maintenance.

4.Suitable for mains pressure water (up to 8 bar/ 11 psi).

5.Corrosion resistent silver brazed copper header.

6.Stable solar conversion throughout the day (tubes passively track the sun)

7. Perfect solar collector for domestic solar water heater systems.

8.Ideal for big project like swimming pool,school,hotel..
