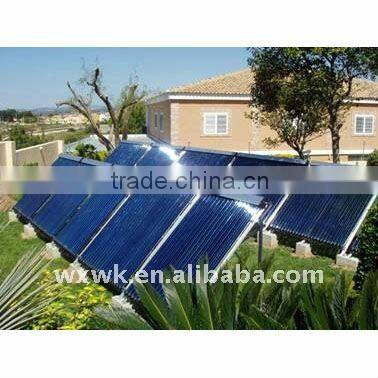

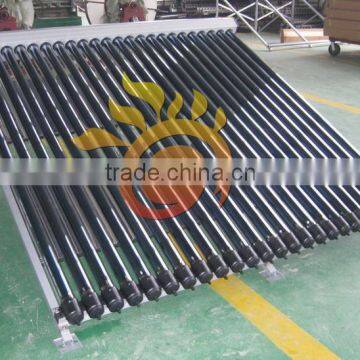

Aluminum Alloy Heat Pipe Solar System(WCD)
US$ 198 - 300
MOQ: 10 Sets
Key Specifications
Get Latest Price
Brand Name:
wankangsolar
Model Number:
WCD-58/1000-30tubes
Type:
Pressurized
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficient Heat Pipe Solar Product(WCD)US$ 363 - 363MOQ: 10 Sets -
220L Heat Pipe Solar System(WCD)US$ 198 - 300MOQ: 10 Sets
-
20 Tubes Super Metal Solar CollectorUS$ 100 - 350MOQ: 1 Set
-
150L Heat Pipe Solar Collector T(WCD)US$ 363 - 363MOQ: 10 Sets
-
Aluminum Alloy Heat Pipe Solar Collector(WCD)US$ 198 - 300MOQ: 10 Sets
Brand Name
wankangsolar
Model Number
WCD-58/1000-30tubes
Type
Pressurized
Application
Water Heater
Pipe Material
Copper

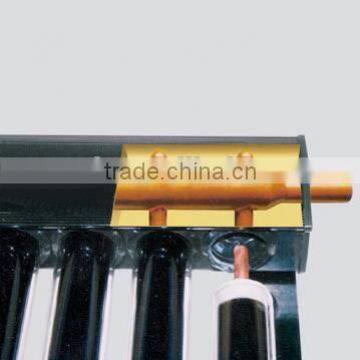

Heat pipe solar collector For split pressurized solar system or Big project.
Features:
Material:
Manifold material and thickness |
aluminum alloy-2.0mm/ Stainless steel 304 2B- 0.8mm |
Header pipe material and thickness |
Diameter:32mm, thickness 1.0mm copper pipe |
Heat pipe material and thickness |
Diameter:14mm, thickness 0.5mm copper pipe |
Insulation |
Polyurethane foam 50mm or Rock wool |
Test pressure and work pressure |
Test pressure 9Bar, work pressure 6bar to 8bar |
Frame material and thickness |
Aluminum alloy-2.0mm/ Stainless steel-1.2mm |
Collector mounting |
Flat roof/slope roof |
Inlet and outlet |
1/2’’ OR 3/4’’ |
Hail resistance: |
25mm |
Coating of vacuum tube: |
QB-AL-SS/CU-47/1500/58/1800 |
