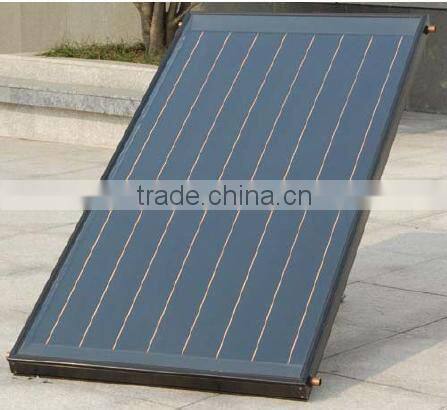

Flat Panel Solar Collector
US$ 1 - 1
/ Set
1 Set(Min. Order)
- Shanghai
- T/T Money Gram
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Yihao sun | |
| Model Number | WPB | Type | Flat Panel | |
| Application | Water Heater | Pipe Material | PVC |
Product Description
The Flat-Plate system comprises an insulated, weatherproof box containing a dark absorber plate under one or more transparent or translucent covers. Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated. This collector, although inferior in many ways to evacuated tube collectors, is still the most common type of collector in many countries.
| Model | Total area (m2) | Dimension (L*W*H)(mm) | Absorption Coefficient | Emission Coefficient | Weight (kg) | Insulation Layer(mm) | Material Thickness(mm) |
| FC208 | 2.0 | 1060*2000*80 | ≥95% | ≤10% | 32 | 40 | 1 |
| Absorber plate | Red Copper TP2 |
| Absorber Coating | black chrome |
| Flowing tube | φ25*0.60, Red copper TP2 |
| Header tube | φ10*0.50, Red copper TP2 |
| Connections | G3/4" female |
| Cover glass | Low iron,tempered patterned glass with 4mm thickness |
| Frame | aluminum alloy |
| Insulation | glass fiber, polyurethane |
| Side Insulation | foam |
| working pressure | 0.6MPA |
| Test pressure | 1.2MPA |
