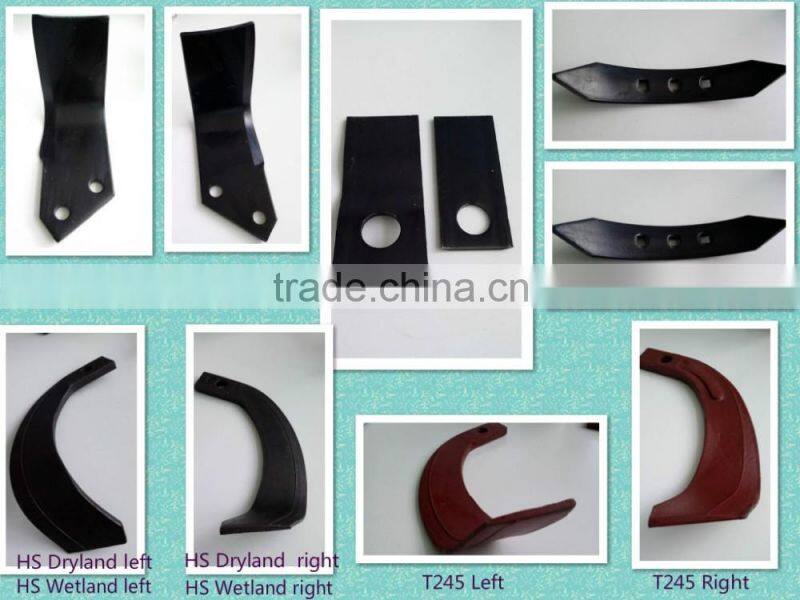

Dry Land Tiller Blade
Heat treatment :normalized-hardrned and tempered
Hardness:40-50HRC
Working hours:300-400
| 1 | Item Name | Rotary Tillage Coulter Blade |
| 2 | Material | 65Mn,60Si2Mn,28MnSiB |
| 3 | Producing | Forging/Heat Treatment/Painting |
| 4 | Service | ODM OEM |
| 5 | Color | Red or According to Your Requirement |
| 6 | Use | Widely used life and the reasonable price |
| 7 | Feature | Long using life and the reasonable price |
| 8 | Place of Origin | TianJin |
| 9 | Package | Carton box .otherwish we can supply the package according to your requirement if needed |
| 10 | Advantages |
Professional production team; Excellent engineer; High quality products |
Our company was bulit since year 1992, producing both blade martieral more than 20 years.
we can product the tiller blade as the requirement of you for its size,thickness,material,trademarkand so on if this product doesn't meet your requirement,you may take a look at other kinds of our products, maybe there is something you are interested in.
| Code No. | Plate | Hole dia/dis | Working height | Working radius | Weight |
| QB-R01 | 25mm*10mm | 10mm | 50mm | 195mm | 0.4kg |
| QB-R02 | 25mm*10mm | 11/24mm | 52mm | 225mm | 0.5kg |
| QB-R03 | 30mm*10mm | 13mm | 45mm | 240mm | 0.65kg |
| QB-R04 | 30mm*10mm | 13mm | 50mm | 225mm | 0.48kg |
| QB-R05 | 25mm*7mm | 11mm | 50mm | 175mm | 0.30kg |
| QB-R06 | 30mm*10mm | 13mm | 55mm | 245mm | 0.55kg |
| QB-R07 | 25mm*10mm | 12mm | 50mm | 225mm | 0.5kg |
| QB-R08 | 25mm*10mm | 12/24mm | 56mm | 225mm | 0.5kg |
| QB-R09 | 30mm*10mm | 14mm | 52mm | 225mm | 0.5kg |
| QB-R10 | 30mm*10mm | 14mm | 55mm | 225mm | 0.5kg |
| QB-R11 | 24mm*8mm | 11mm | 34mm | 120mm | 0.2kg |
| QB-R12 | 30mm*10mm | 12.5mm | 45mm | 230mm | 0.68kg |
| etc. |
| Material | Chemical compostion table | ||||||
| C(%) | Si(%) | Mn(%) | Cr(%) | P(%) | S(%) | B(%) | |
| 65Mn | O.62-0.70 | 0.17-0.37 | 0.90-1.20 | ≤0.25 | ≤0.015 | ≤0.035 | |
| 60Si2Mn | 0.56-0.64 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 | |
| 55SiMnB | 0.52-0.60 | 1.50-2.00 | 0.69-0.90 | ≤0.35 | ≤0.035 | ≤0.035 | |
| 28SiMnB | 0.24-0.32 | 0.60-1.00 | 1.20-1.60 | 0.014 | 0.015 | 0.0005-0.0035 | |
| 30MnCrB5 | 0.26-0.34 | ≤0.40 | 1.10-1.40 | 0.30-0.60 | ≤0.025 | ≤0.035 | |
| SuP9 | 0.52-0.60 | 0.15-0.35 | 0.65-0.95 | 0.65-0.95 | ≤0.030 | ≤0.030 | |

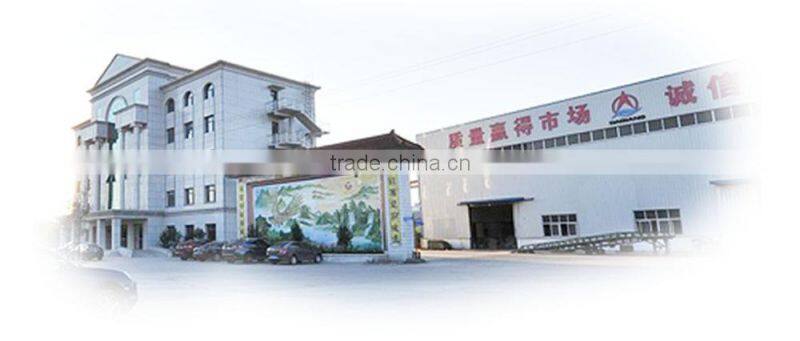

Tianjin DAQIANG steel Co., Ltd. has dedicated in steel industry
for almost 15 years.With rigorous quality control, advanced equipment,
skilled workers, we supply you with our high quality products and best service.

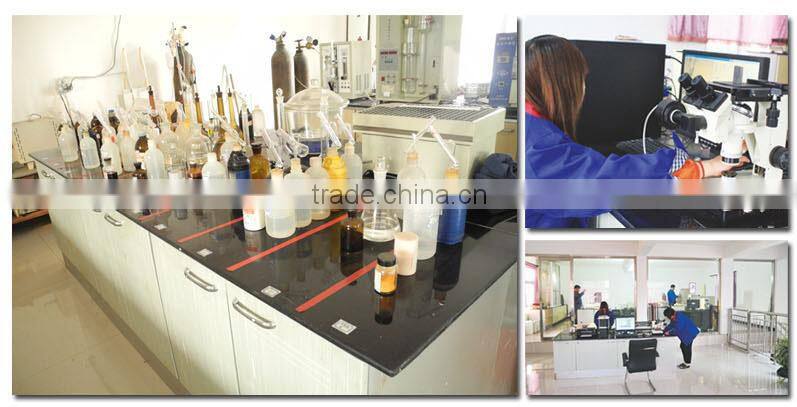

We have profesional technical staff ensuring product quality.

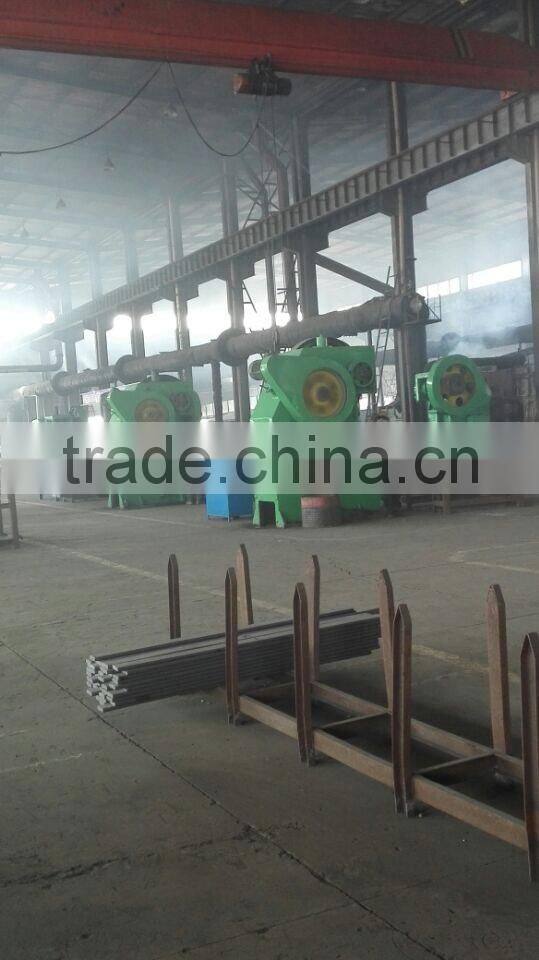

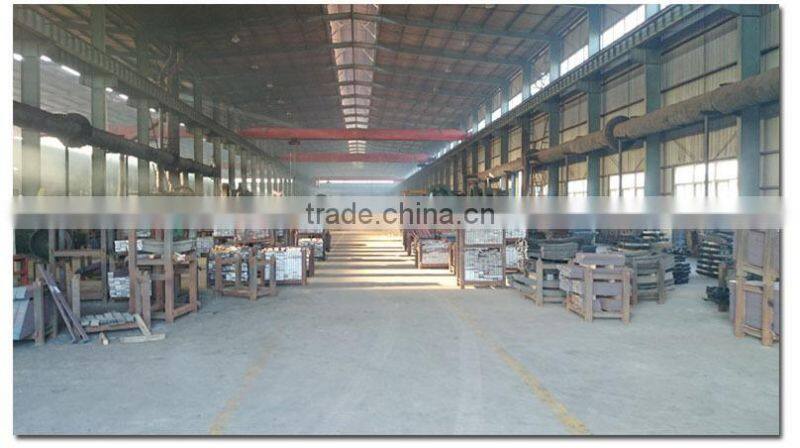

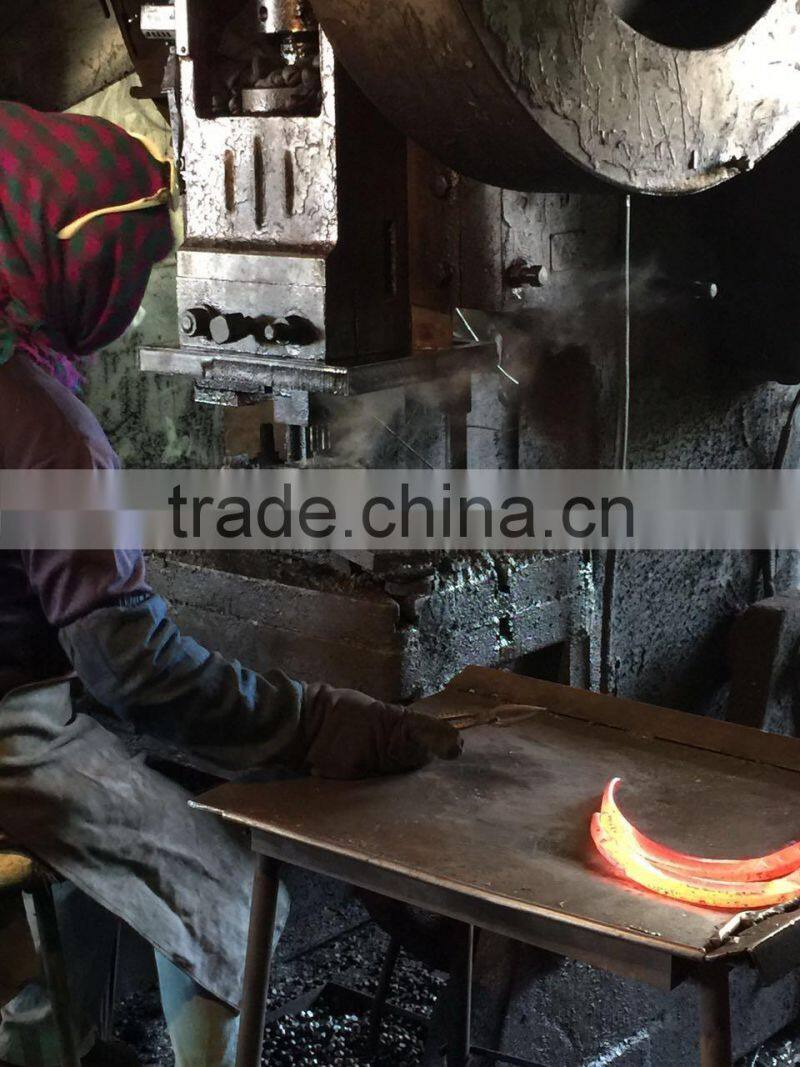

Production Line
We have advanced production quipment and profesional team.
Every year, we take part in kinds of large-scale exhibition shows at home and abroad.
Our clients spread all over the world,
main markets are Middle east,Africa, South-east asia, Latin America etc.
Visit customers regularly.
