12V DC LED driver for lighting
- 1000000 Piece / Pieces per Month
- Ningbo/Shanghai
- T/T
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | HengJie | Model Number: | HJ-BYQ-756C |
Output Power: | 1 - 50W | Output Type: | Single | Input Voltage: | 220V |
Output Voltage: | 12V | Output Frequency: | 50HZ | Output Current: | 3A |
Product Description
12V DC LED driver for lighting
HJ-BYQ-756C
Item code | rated supply | rated output | Load range | dimension | PF | Fn | Ta | Tc | Approval | Wiring |
HJ-BYQ-756C | AC 220-240V | DC 12V | 10w | 60x39x63.3mm | >0.5 | 50Hz | 45 deg | 85 deg | CE | terminal blocks/plug |
--IP20 indepandent LED electronic control gear
--Class II protection against electric shock from direct and indirect contact
--open circuit, short circuit, over load and over heat protection
--Auto restart after fault condition removal
--Safety & EMC standard
EN61347-1;EN61347-2-13,EN55015
EN61547;EN61000-3-2;EN61000-3-3

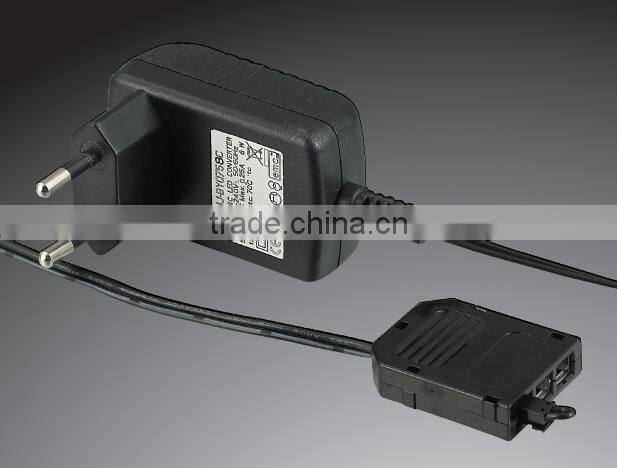

Product pictures

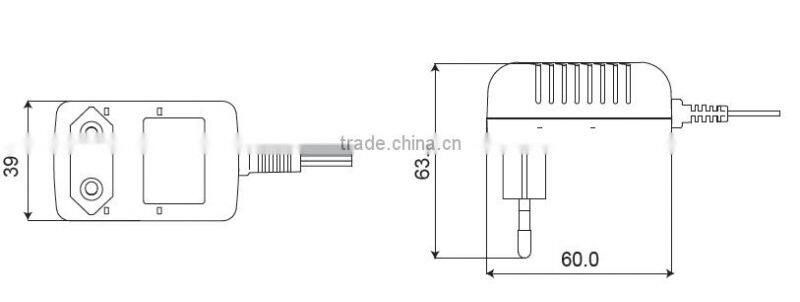

Size
Our Advantages:
1. Our company is a professional leading manufacturer and of cabinet and furniture lights in China. We have our own design team, development team and production team.
2. Our lamps are ISO9001, CE, TUV/GS, VDE, EMC, RoHS and UL approval.
3. We have our Molding workshop, assembly Workshop, electric workshop and injection workshop. Exquisite workmanship will be guranteed. All things are being controlled well by ourselves.
4. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
5.We can supply the European plug socket adapter, UL list adapter, BS adapter, SAA adapter, CCC adapter.
Ningbo Technic Lighting Co. Ltd. is a professional leading manufacturer of cabinet and furniture lights in China. Covering an area of 9000 square meters, it includes hardware workshop, injection workshop, molding workshop, electronic workshop and assembly workshop. The company employs 150 workers, 25 technical engineers, 15 QC staffs, and 20 office employees.
The firm has passed ISO9001 quality system certification in year 2008. After the introduction of the all-around enterprise management ERP system, the company made significant improvements with regard to the efficiency of resource usage and the effectiveness of the internal management of the company.
Our main products cover the whole system of cabinet and furniture lights, including lighting system, connecting system, controlling and driving units. Lighting system comprise: LED light series, fluorescent light series and specially made connectors, distributors, etc. Controlling and driving system includes various kinds of controllers (such as IR sensor controllers, PIR sensor controllers), switches, drivers and transformers especially for LED. All of the products are produced according to ROHS, VDE,TUV/GS ,SAA and CE requirements.
Our professional team will provide you superior products, designs and services with reasonable and best prices.
