12 Volt Led Under Shelf Light

12 Volt Led Under Shelf Light photo-1
12 Volt Led Under Shelf Light photo-2
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
21 LEDs SMD
Install Style:
Ressessed In
Switch Type:
Knob switch
Payment & Shipping
Payment Methods:
Port of Shipment:
NingBo
Delivery Detail:
Delivery time depends on order quantity.
LED Light Source 21 LEDs SMD
Install Style Ressessed In
Switch Type Knob switch
Shade Type Other, PMMA
Input Voltage(V) 12
Lamp Power(W) 1.68
Lamp Luminous Flux(lm) 43
Lamp Luminous Efficiency(lm/w) 25
Color Temperature(CCT) Other, 2700K~6500K optional
Certification CE, UL
Emitting Color White
Place of Origin Zhejiang, China
Brand Name HengJIE
Model Number HJ-LED-314

 LED cabinet light for kitchen sliding drawer

 HJ-LED-314





Technic Data



HousingAluminum Oxidation
Bulb21 LEDs
Rated Power1.68W
Rated Input Voltage12V DC
Rated Current140mA
Luminance43Lm (135mA,Natural White)
Light Tone3000K-7000K Optional
Supply Lead1800mm
Dimmable
Connection to: Constant Voltage Driver





Mounting

— Clips mounting by screw
— Lighting mounted under shelves of cupboards, cabinets.
— Lighting set: 3 Lights, 1 LED 6W Driver with supply lead and plug
— Max. Connection : 10pcs



Accessories

— LED Driver------------------------ HJ-BYQ-757C / HJ-BYQ-657
— 3-folds distributor--------------- HJ-XS-530
— 6-folds distributor------- HJ-XS-505 for more lightings
— LED mini plug connection---------- HJ-XS-518





Product Photo



 12 volt led under shelf light



12 volt led under shelf light

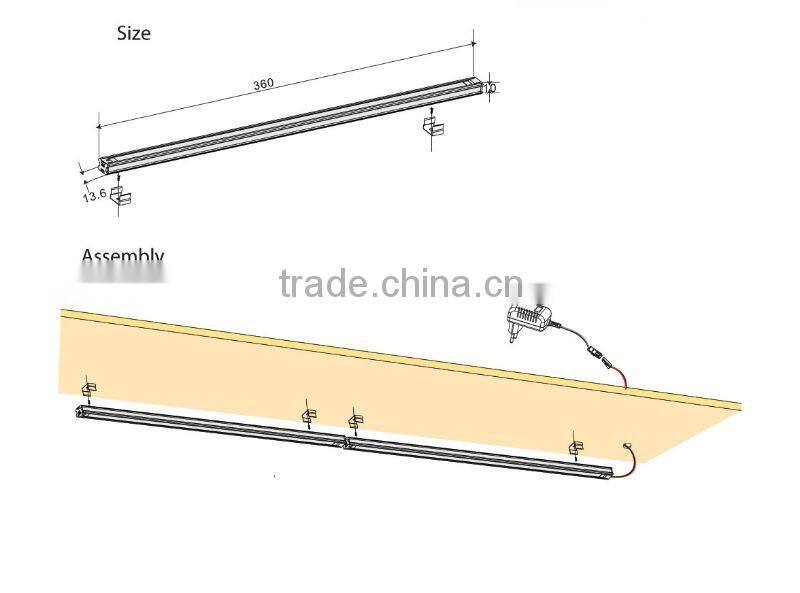

Size and Assembly





12 volt led under shelf light
