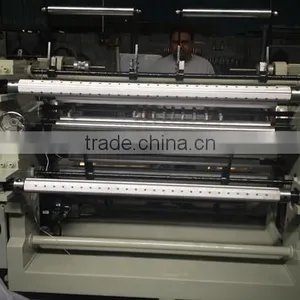

XT-SMS300 Thermal Paper Slitting Machine With High Speed

XT-SMS300 Thermal Paper Slitting Machine With High Speed photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Other
Packaging Type:
Bags
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Food, Other
Packaging Type Bags
Packaging Material Other
Automatic Grade Automatic
Driven Type Electric
Voltage 220v
Power 3kw
Place of Origin Zhejiang, China
Brand Name Xin Tai
Model Number XT-SMS300 Ttr Slitting Machine
Weight about 3000kg, about 3000kg
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Ttr Slitting Machine Spec:
1 Suitable for BOPP, PET, CPP, CPE, PVC, paper etc.
2 Cut material according to your needs.



thermal paper, label, Ttr Slitting Machine



XT-SMS300 thermal paper slitting machine with high speed



Features



1. A kind of vertical slitting & rewinding machine

2. Independent master control panel, more flexible and even easier operation.
4 Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.



4. standard shaft for unwinding, automatic tension controller and magnetic powder brake for unwinding tension control

5. Double cam shaft for rewinding, Magnetic clutch control for rewinding tension control

6. Main motor with frequency converter for speed regulation
7. Equipped with rim charge conveying device.
8. Automatic meter counting device



high speed slliting machi



Printing Materials



suitable for PE, PP, PET, OPP, PVC and low gsm paper etc.



Material width

200-1200mm

Slitting Speed

300 m/min

Material diameter

600mm

Paper core diameter

76mm

Finished Products

30-1200 mm

Main Motor

3kw

Weight

about 3000kg



NOTES:  Changes Can be Made Based on Your Requirements!

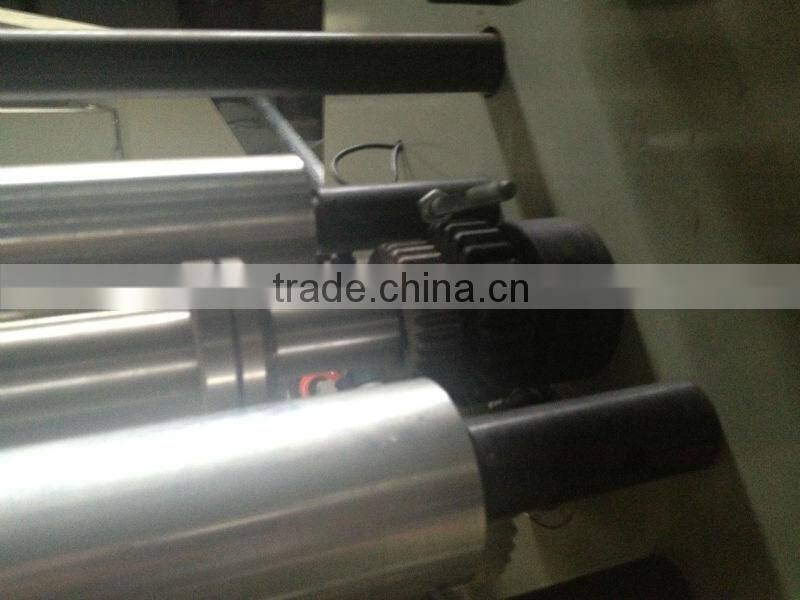

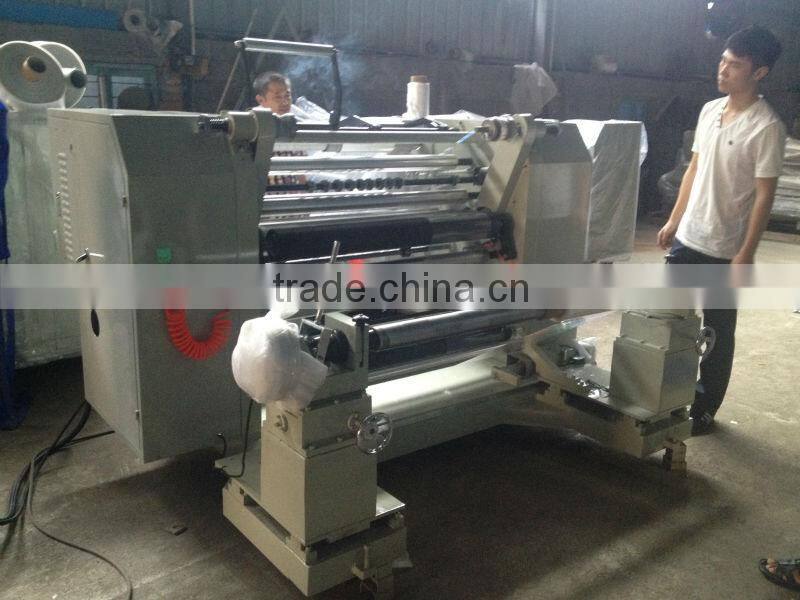

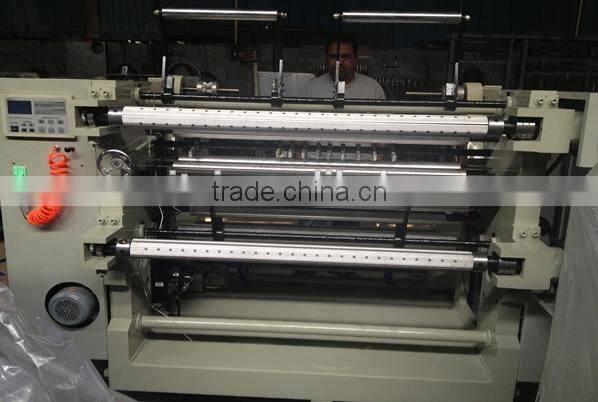

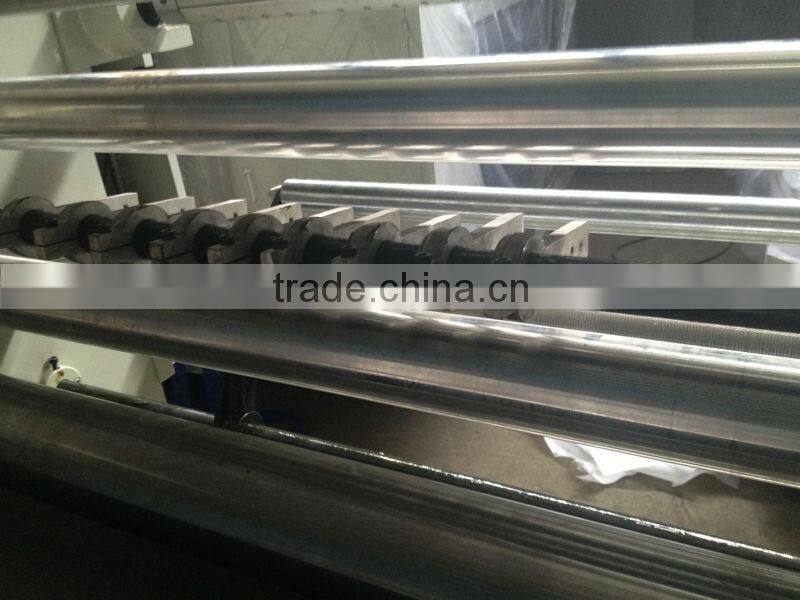

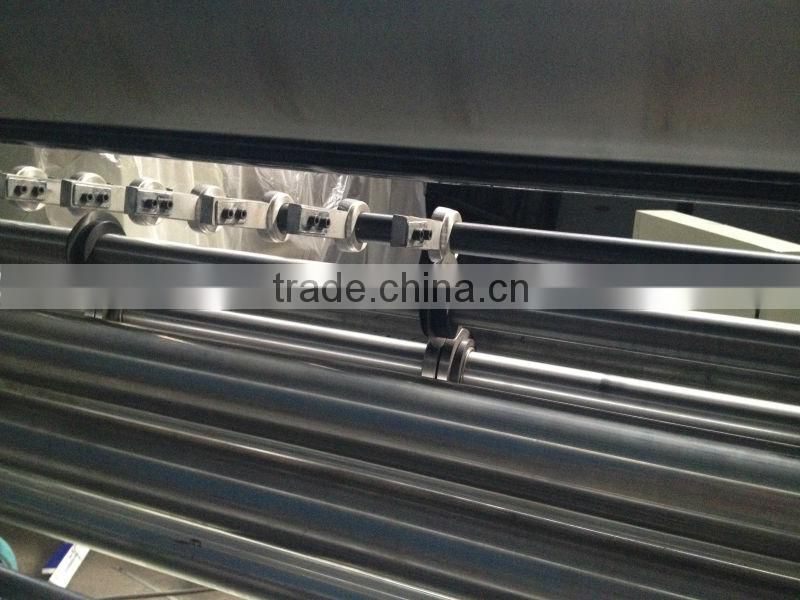

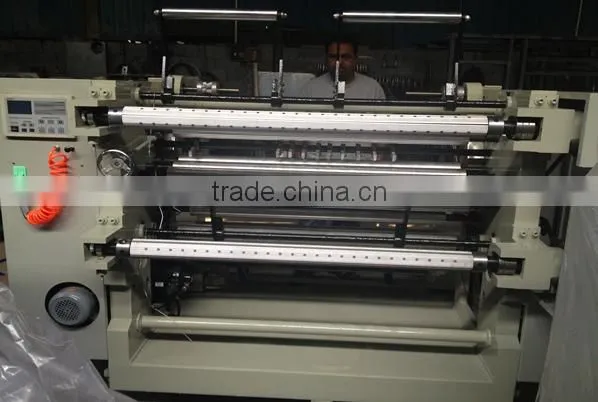

Machine Show



XT-SMS300 thermal paper slitting machine with high speedXT-SMS300 thermal paper slitting machine with high speedXT-SMS300 thermal paper slitting machine with high speedXT-SMS300 thermal paper slitting machine with high speed





Our Services



1 One year quality warranty.

2 Engineers are available overseas.

3 Good after-sale services.
